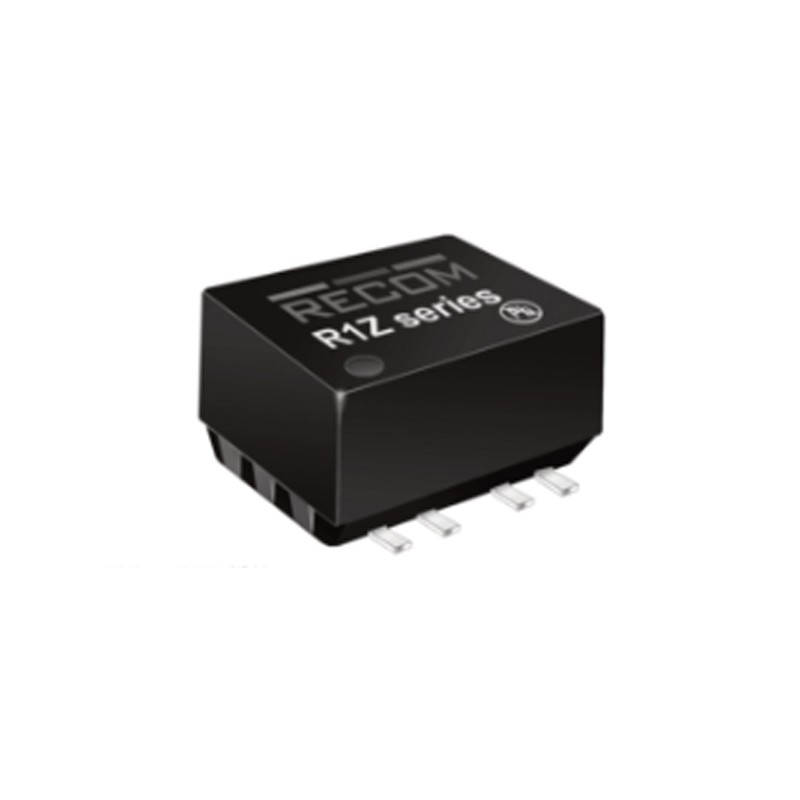

R1Z-0505/HP

SMD DC/DC converter modules series R1Z

They have a SMD housing and are suitable for direct PCB mounting. The modules are characterized by toroidal magnetics and have got a regulated output. Their efficiency is typ. 60%. We are offering the following types by Recom: R1Z-0505, R1Z-0505/P, R1Z-0505/HP, and R1Z-0505/P-R.

* output: 1 Watt
* single output
* output voltage tolerance, max.: ±2%
* ripple & noise, max.: 100mVpp
* withstand voltage: 1000V DC
* operating temperature: -40 to +70°C
* weight: 1.6g

* R1Z-_: 1kV DC isolation
* R1Z-_/H: 2kV DC isolation
* R1Z_/P: continuous short circuit protection

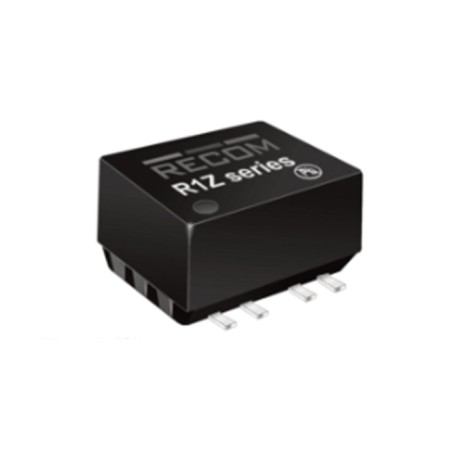

R1Z-0505/HP, Recom DC/DC converters, 1W, SMD, R1Z series

R1Z-0505/HP

108949 R1Z-0505/HP R1Z-0505/HP SMD DC/DC converter modules series R1Z. They have a SMD housing and are suitable for direct PCB mounting. The modules are characterized by toroidal magnetics and have got a regulated output. Their efficiency is typ. 60%. We are offering the following types by Recom: R1Z-0505, R1Z-0505/P, R1Z-0505/HP, and R1Z-0505/P-R. * output: 1 Watt* single output* output voltage tolerance, max.: ±2%* ripple & noise, max.: 100mVpp* withstand voltage: 1000V DC* operating temperature: -40 to +70°C* weight: 1.6g * R1Z-_: 1kV DC isolation* R1Z-_/H: 2kV DC isolation* R1Z_/P: continuous short circuit protection

Specifications

manufacturer
Manufacturer's name R1Z-0505/HP
Input voltage [V] 5
Output voltage [V] 5
Output current range [mA] 200
Efficiency [%] 60
Data Sheet

Unit price

17,99 €

Stock: 29
Further delivery:
CW 01/2025
