R1S-0505

Recom DC/DC converter series R1S and R1D

DC/DC converters in an SMD housing with a power output of up to 1 watts are available from Recom. These devices have been designed for direct PCB mounting and offer high efficiency, making them ideal for use in space-constrained applications where energy consumption is critical. They feature a withstand voltage of 1kV or 3kV (R1S-_/H), while the R1S-_/P series provides continuous short circuit protection. Both single (R1S_) and double output (R1D_) options are available to meet different application requirements. We offer various types of this Recom series.

  • single (R1S_) or dual output (R1D_)
  • output: 1W
  • output voltage tolerance: ±5%
  • maximal ripple and noise: 100mVpp
  • operating temperature: -40 to +100°C

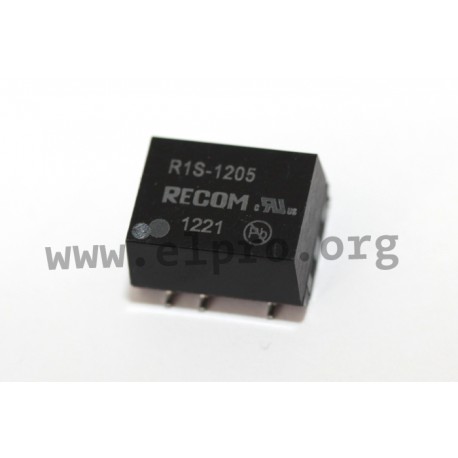

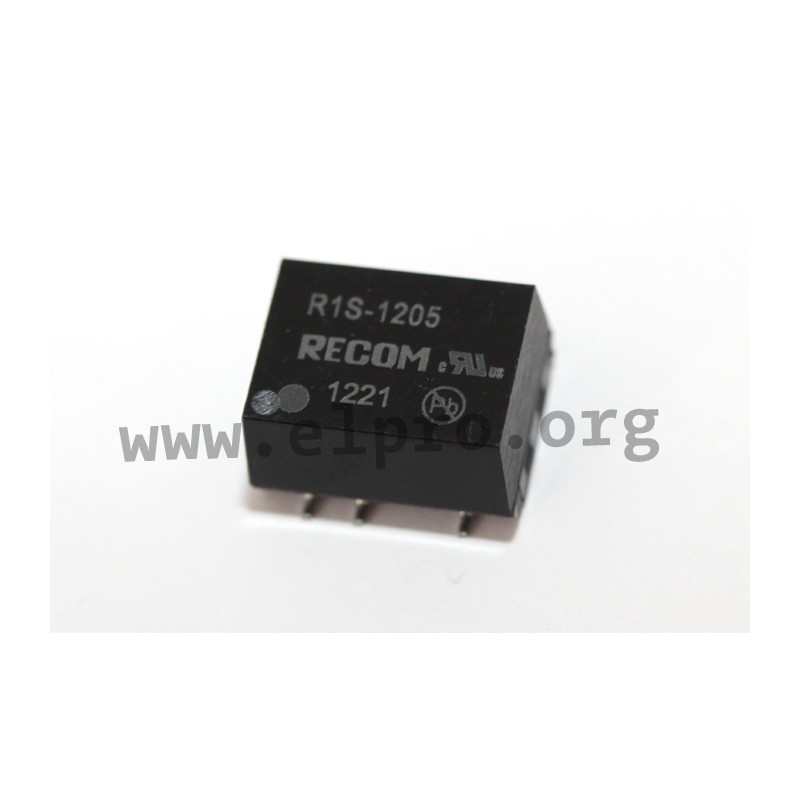

R1S-3.33.3, Recom DC/DC converters, 1W, SO housing, R1S and R1D series

R1S-0505

38308 R1S-0505 R1S-0505 Recom DC/DC converter series R1S and R1D. DC/DC converters in an SMD housing with a power output of up to 1 watts are available from Recom. These devices have been designed for direct PCB mounting and offer high efficiency, making them ideal for use in space-constrained applications where energy consumption is critical. They feature a withstand voltage of 1kV or 3kV (R1S-_/H), while the R1S-_/P series provides continuous short circuit protection. Both single (R1S_) and double output (R1D_) options are available to meet different application requirements. We offer various types of this Recom series. single (R1S_) or dual output (R1D_) output: 1W output voltage tolerance: ±5% maximal ripple and noise: 100mVpp operating temperature: -40 to +100°C

Specifications

manufacturer
Manufacturer's name R1S-0505
Case SO case
Input voltage [V] 5
Output voltage [V] 5
Output current [mA] 200
Efficiency [%] 72...78
Data Sheet

Unit price

6,99 €

Stock: 452
Further delivery:
CW 04/2025
