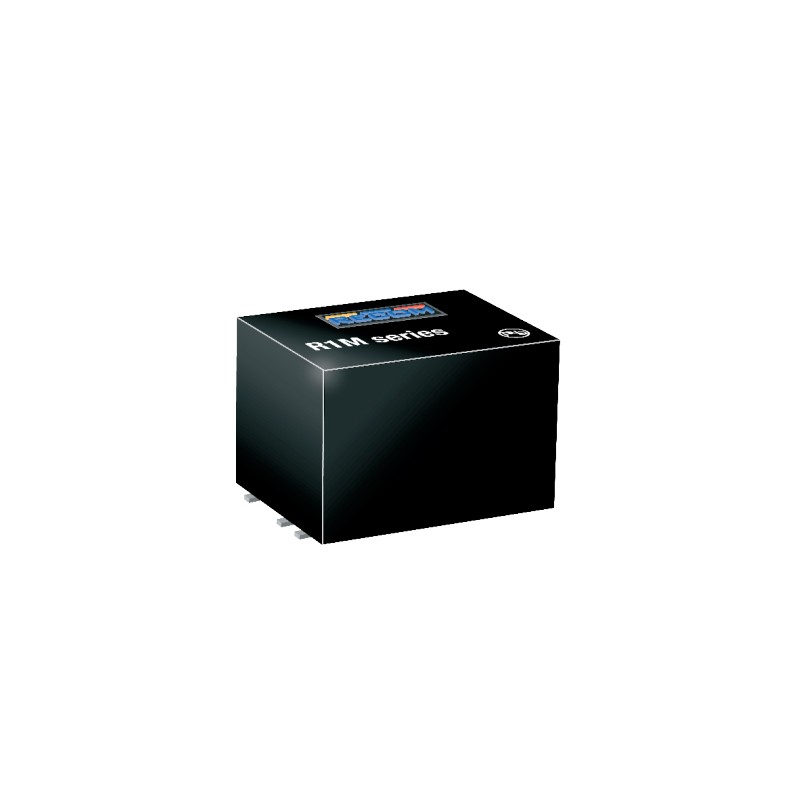

R1M-1205S/SMD

Recom DC/DC converter series R1M

DC/DC converter modules in an SMD housing with 1W and a regulated output. These devices are suitable for direct PCB mounting and are protected against short circuit (continuous). They have an input voltage ratio of 4:1 and comply with EN55032 class A/B. We offer the following tpyes of this Recom series: R1M-1205S/SMD, R1M-2405S/SMD, R1M-2412D/SMD, R1M-2412S/SMD and R1M-2415D/SMD.

  • single (R1M-_S/SMD) and dual output (R1M-_D/SMD)
  • output: 1W
  • output tolerance: ±1%
  • maximal ripple and noise: 30mVpp
  • withstand voltage I/P-O/P: 1600V DC
  • operating temperature: -40 to +90°C
  • dimensions: 14,2x9,1x10,2mm
  • weight: 2,7g

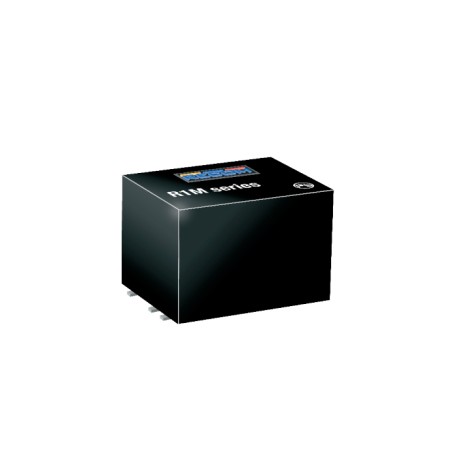

R1M-1205S/SMD, Recom DC/DC converters, 1W, SMD, R1M series

R1M-1205S/SMD

242803 R1M-1205S/SMD R1M-1205S/SMD Recom DC/DC converter series R1M. DC/DC converter modules in an SMD housing with 1W and a regulated output. These devices are suitable for direct PCB mounting and are protected against short circuit (continuous). They have an input voltage ratio of 4:1 and comply with EN55032 class A/B. We offer the following tpyes of this Recom series: R1M-1205S/SMD, R1M-2405S/SMD, R1M-2412D/SMD, R1M-2412S/SMD and R1M-2415D/SMD. single (R1M-_S/SMD) and dual output (R1M-_D/SMD) output: 1W output tolerance: ±1% maximal ripple and noise: 30mVpp withstand voltage I/P-O/P: 1600V DC operating temperature: -40 to +90°C dimensions: 14,2x9,1x10,2mm weight: 2,7g

Specifications

manufacturer
Manufacturer's name R1M-1205S/SMD
Input voltage [V] 4,5...18
Output voltage [V] 5
Output current [mA] 200
Efficiency [%] 79
Data Sheet

Unit price

17,79 €

Stock: 20
Further delivery:
CW 11/2025
