R0.5ZX-0505/HP-TRAY

Recom DC/DC converter series R0.5ZX

DC/DC converters with a regulated output in an SMD housing for direct PCB mounting. These devices are compliant with UL-62368-1 as well as EN55032 class B and have a continuous short-circuit protection (auto recovery). We offer the following types of this Recom series: R0.5ZX-0505/P-TRAY, R0.5ZX-0505/HP-TRAY, and R0.5ZX-0505/HP-R.

  • single output
  • output: 0,5W
  • voltage accuracy: ±2%
  • ripple and noise: 100mVpp
  • withstand voltage (I/P-O/P) R0.5ZX-_/P: 1000V DC
  • withstand voltage (I/P-O/P) R0.5ZX-_/HP: 2000V DC
  • operating temperature: -40  to +85°C
  • dimensions: 15,24x11,10x8,5mm
  • weight: 1,6g

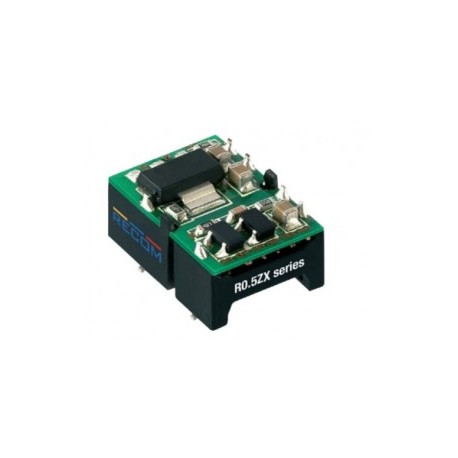

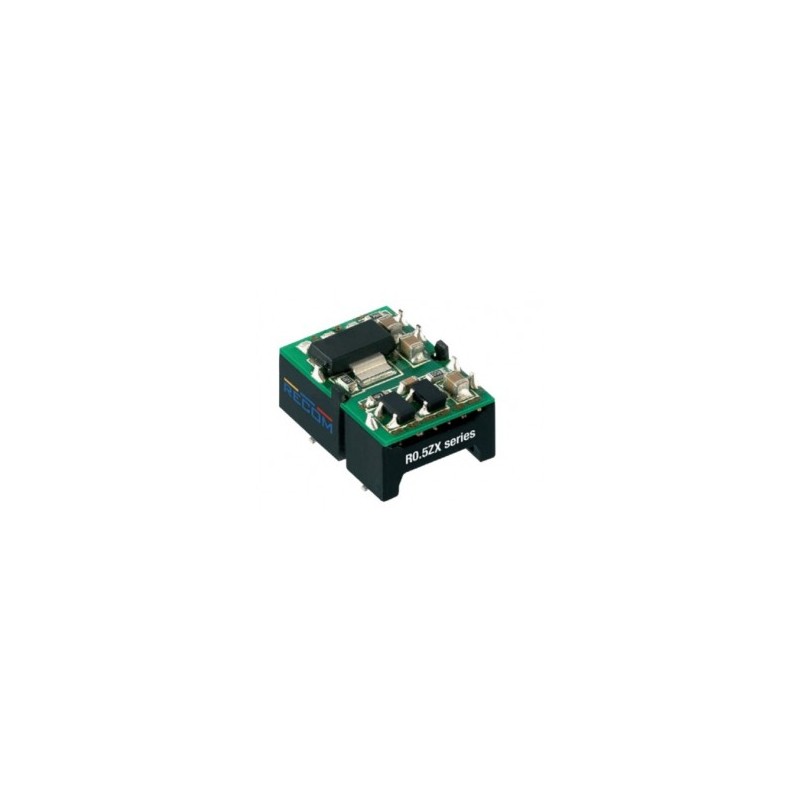

R0.5ZX-0505/HP-TRAY, Recom DC/DC converters, 0,5W, SMD, R0.5ZX series

R0.5ZX-0505/HP-TRAY

118098 R0.5ZX-0505/HP-TRAY R0.5ZX-0505/HP-TRAY Recom DC/DC converter series R0.5ZX. DC/DC converters with a regulated output in an SMD housing for direct PCB mounting. These devices are compliant with UL-62368-1 as well as EN55032 class B and have a continuous short-circuit protection (auto recovery). We offer the following types of this Recom series: R0.5ZX-0505/P-TRAY, R0.5ZX-0505/HP-TRAY, and R0.5ZX-0505/HP-R. single output output: 0,5W voltage accuracy: ±2% ripple and noise: 100mVpp withstand voltage (I/P-O/P) R0.5ZX-_/P: 1000V DC withstand voltage (I/P-O/P) R0.5ZX-_/HP: 2000V DC operating temperature: -40  to +85°C dimensions: 15,24x11,10x8,5mm weight: 1,6g

Specifications

manufacturer
Manufacturer's name R0.5ZX-0505/...
Input voltage [V] 5
Output voltage [V] 5
Output current [mA] 100
Efficiency [%] 71
Data Sheet

Unit price

7,89 €

Stock: 30
Further delivery:
CW 47/2025
