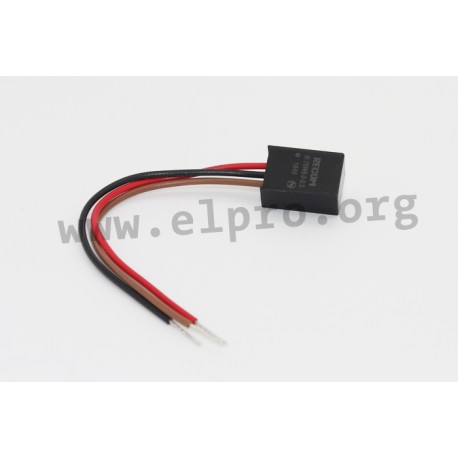

R-78W9.0-0.5

Recom DC/DC converter series R-78W-0.5

DC/DC converters in a SIL3 housing with stranded wires. These devices have a built-in diode protection circuit as well as a continuous short circuit protection and comply with EN60950-1. We offer the following types of this Recom series: R-78W3.3-0.5, R-78W5.0-0.5, R-78W9.0-0.5 and R-78W12-0.5.

  • output current: 0,5A
  • maximal ripple & noise: 75mVpp
  • voltage accuracy (load 20 to 100%): ±3%
  • operating temperature: -40 to +85°C
  • weight: 4.8g
R-78W9.0-0.5

R-78W9.0-0.5

109033 R-78W9.0-0.5 R-78W9.0-0.5 Recom DC/DC converter series R-78W-0.5. DC/DC converters in a SIL3 housing with stranded wires. These devices have a built-in diode protection circuit as well as a continuous short circuit protection and comply with EN60950-1. We offer the following types of this Recom series: R-78W3.3-0.5, R-78W5.0-0.5, R-78W9.0-0.5 and R-78W12-0.5. output current: 0,5A maximal ripple & noise: 75mVpp voltage accuracy (load 20 to 100%): ±3% operating temperature: -40 to +85°C weight: 4.8g

Specifications

manufacturer
Manufacturer's name R-78W9.0-0.5
Input voltage [V] 11...32
Output voltage [V] 9
Efficiency [%] 95
Output current [mA] 500
Data Sheet

Unit price

10,39 €

Stock: 15
Further delivery:
CW 06/2025
