R-78T3.3-1.0/AL-R

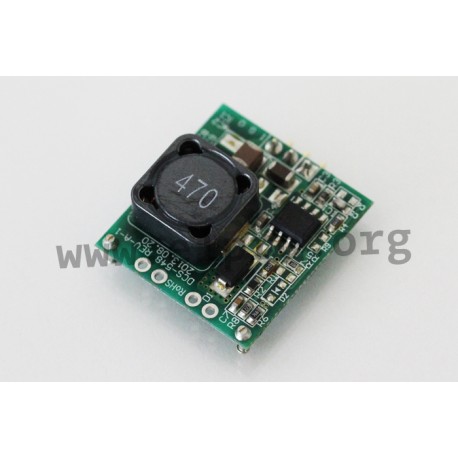

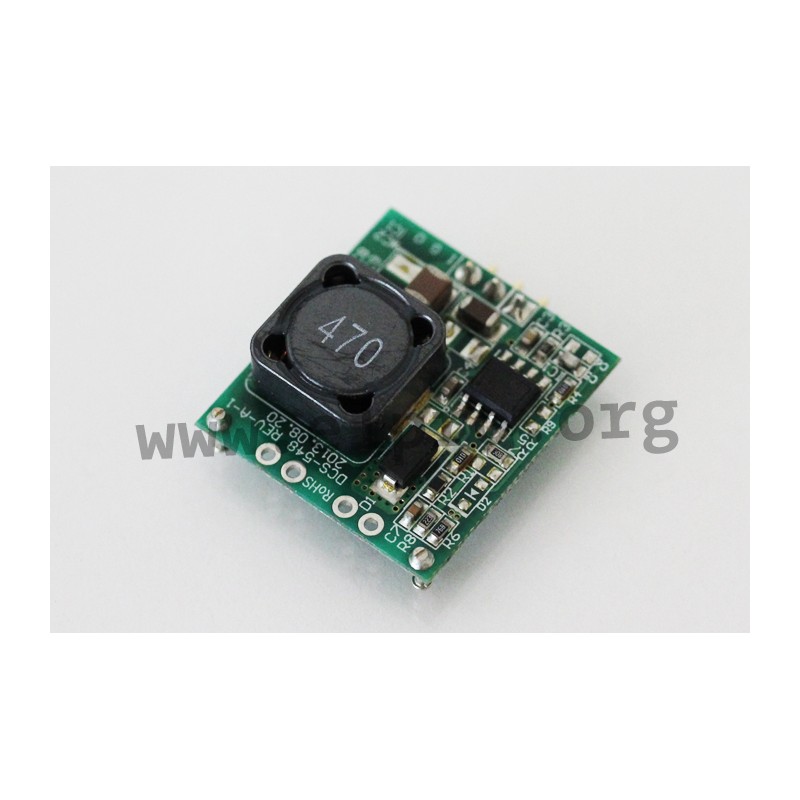

Recom DC/DC converter series R-78T-1.0

  • shielded DC/DC converters in an SMD housing for direct PCB mounting
  • with an industry standard pin-out, a fixed switching frequency (350kHz) and a very low standby current
  • no heatsink needed
  • protected against short circuit
  • taped (R-78T_-R) or in a tray packaging (R-78T_-TRAY)
R-78T3.3-1.0/AL-R, Recom DC/DC converters, 3,3 to 12W, SMD, R-78T-1.0 series

R-78T3.3-1.0/AL-R

43602 R-78T3.3-1.0/AL-R R-78T3.3-1.0/AL-R Recom DC/DC converter series R-78T-1.0. shielded DC/DC converters in an SMD housing for direct PCB mounting with an industry standard pin-out, a fixed switching frequency (350kHz) and a very low standby current no heatsink needed protected against short circuit taped (R-78T_-R) or in a tray packaging (R-78T_-TRAY)

Specifications

manufacturer
Manufacturer's name R-78T3.3-1.0/AL-R
Case SMD case
Input voltage [V] 7...42
Output current [mA] 1000
Efficiency [%] 88...79
Data Sheet

Unit price

17,89 €

Stock: 0
Further delivery:
CW 18/2025

Minimum order quantity 50 units or
multiples of 50.
