R-78K1.5-2.0L

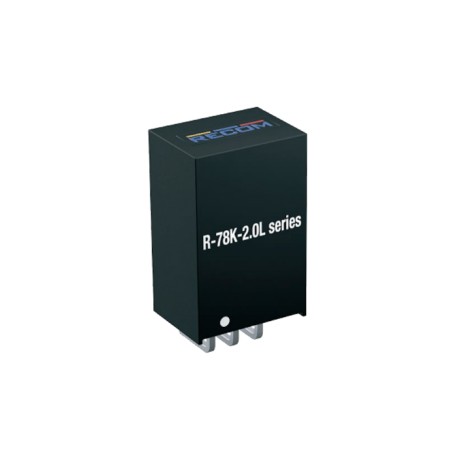

Recom DC/DC switching regulator series R-78K-2.0L

DC/DC switching regulators in a SIL3 housing with 2A and bent terminals (90°). These devices are suitable for PCB mounting and are protected against short circuit as well as undervoltage. They do not require a heatsink and comply with EN62368-1 as well as EN55032 class B. We offer the following types of this Recom series: R-78K1.2-2.0L, R-78K1.5-2.0L, R-78K1.8-2.0L, R-78K2.5-2.0L, R-78K3.3-2.0L, R-78K5.0-2.0L, R-78K9.0-2.0L, R-78K12-2.0L and R-78K15-2.0L.

  • single output
  • output current: 2A
  • maximal output tolerance: ±3%
  • operating temperature: -40 to +90°C
  • dimensions: 11,5x8,5x17,5mm
  • weight: 4g
R-78K1.5-2.0L, Recom DC/DC switching regulators, 2A, SIL3 housing, R-78K-2.0L series

R-78K1.5-2.0L

243308 R-78K1.5-2.0L R-78K1.5-2.0L Recom DC/DC switching regulator series R-78K-2.0L. DC/DC switching regulators in a SIL3 housing with 2A and bent terminals (90°). These devices are suitable for PCB mounting and are protected against short circuit as well as undervoltage. They do not require a heatsink and comply with EN62368-1 as well as EN55032 class B. We offer the following types of this Recom series: R-78K1.2-2.0L, R-78K1.5-2.0L, R-78K1.8-2.0L, R-78K2.5-2.0L, R-78K3.3-2.0L, R-78K5.0-2.0L, R-78K9.0-2.0L, R-78K12-2.0L and R-78K15-2.0L. single output output current: 2A maximal output tolerance: ±3% operating temperature: -40 to +90°C dimensions: 11,5x8,5x17,5mm weight: 4g

Specifications

manufacturer
Manufacturer's name R-78K1.5-2.0L
Output voltage [V] 1,5
Input voltage range [V] 4,5...36
Efficiency [%] 82
Ripple [mVp-p] 100
Data Sheet

Unit price

4,59 €

Stock: 43
Further delivery:
CW 10/2025
