R-78K2.5-2.0

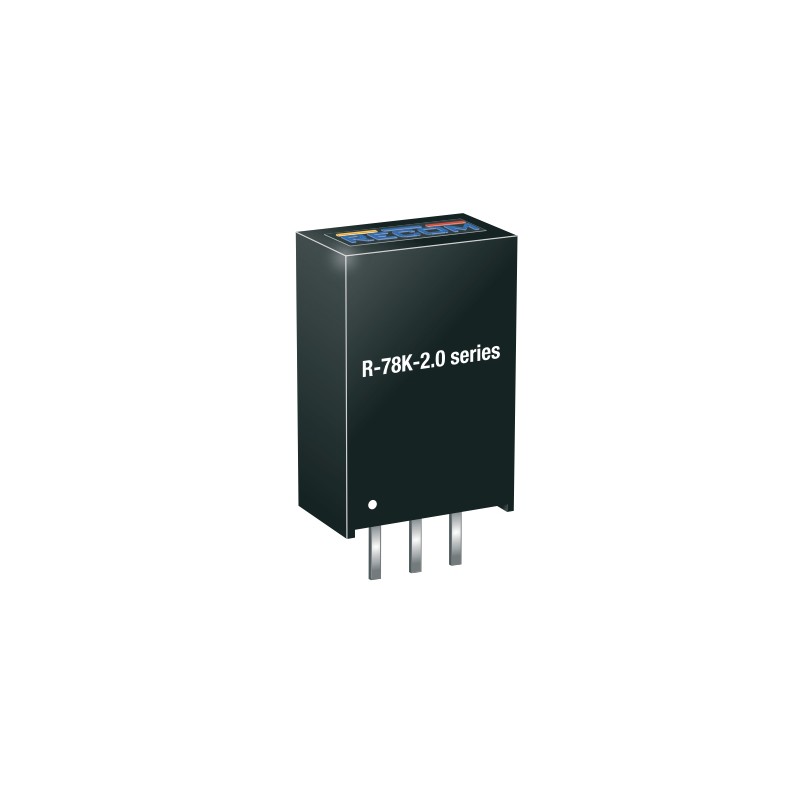

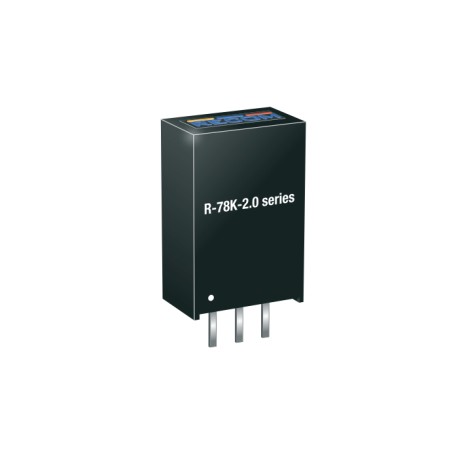

Recom DC/DC switching regulator series R-78K-2.0

DC/DC switching regulators in a SIL3 housing with 2A and an efficiency of up to 96%. These devices do not require an additional heatsink and are protected against short circuit as well as undervoltage. They are suitable for PCB mounting and comply with EN62368-1 as well as EN55032 class B. We offer the following types of this Recom series: R-78K1.2-2.0, R-78K1.5-2.0, R-78K1.8-2.0, R-78K2.5-2.0, R-78K3.3-2.0, R-78K5.0-2.0, R-78K9.0-2.0, R-78K12-2.0 and R-78K15-2.0.

  • single output
  • output current: 2A
  • maximal output voltage tolerance: ±3%
  • operating temperature: -40 to +90°C
  • dimensions: 11,5x8,5x17,5mm
  • weight: 1,7g
R-78K2.5-2.0, Recom DC/DC switching regulators, 2A, SIL3 housing, R-78K-2.0 series

R-78K2.5-2.0

242792 R-78K2.5-2.0 R-78K2.5-2.0 Recom DC/DC switching regulator series R-78K-2.0. DC/DC switching regulators in a SIL3 housing with 2A and an efficiency of up to 96%. These devices do not require an additional heatsink and are protected against short circuit as well as undervoltage. They are suitable for PCB mounting and comply with EN62368-1 as well as EN55032 class B. We offer the following types of this Recom series: R-78K1.2-2.0, R-78K1.5-2.0, R-78K1.8-2.0, R-78K2.5-2.0, R-78K3.3-2.0, R-78K5.0-2.0, R-78K9.0-2.0, R-78K12-2.0 and R-78K15-2.0. single output output current: 2A maximal output voltage tolerance: ±3% operating temperature: -40 to +90°C dimensions: 11,5x8,5x17,5mm weight: 1,7g

Specifications

manufacturer
Manufacturer's name R-78K2.5-2.0
Input voltage [V] 4,5...36
Output voltage [V] 2,5
Efficiency [%] 88
Ripple [mVp-p] 100
Data Sheet

Unit price

4,89 €

Stock: 40
Further delivery:
CW 10/2025
