R-78K1.5-0.5

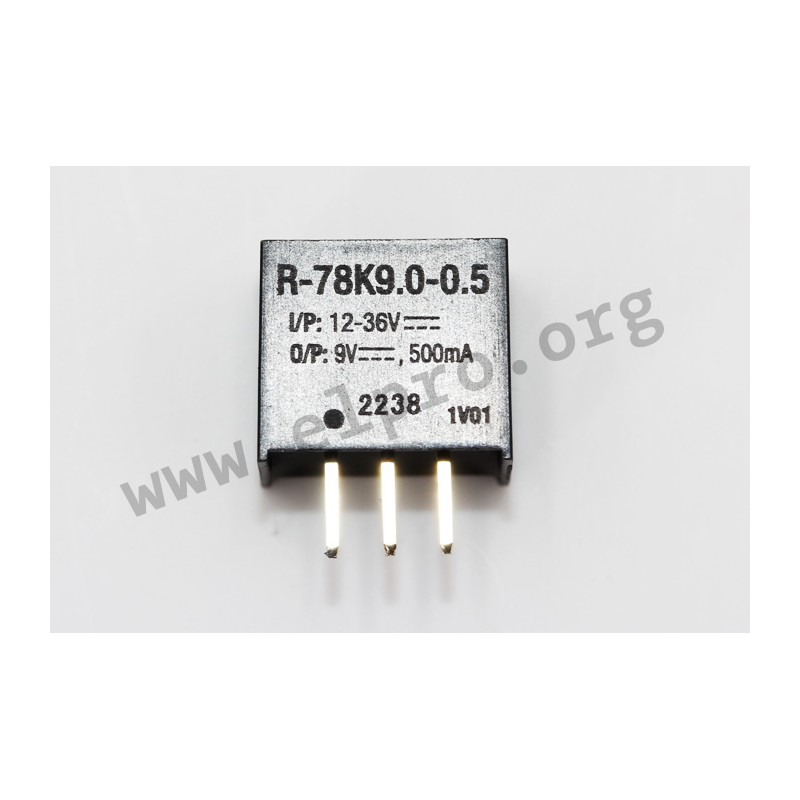

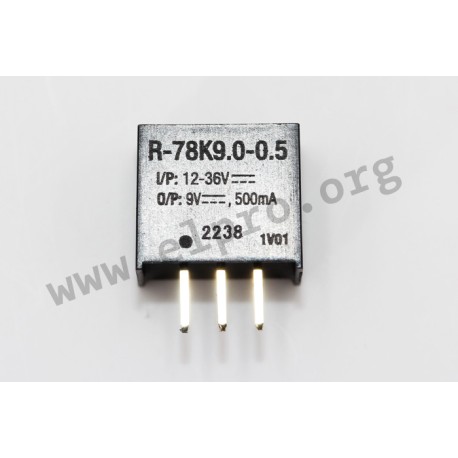

Recom DC/DC switching regulator series R-78K-0.5

DC/DC switching regulators in a SIL3 housing with 0,5A and an efficiency of up to 96%. These devices are suitable for PCB mounting and are protected against short circuit as well as undervoltage. They do not require an additional heatsink and comply with EN62368-1 as well as EN55032 class B. We offer the following types of this Recom series: R-78K1.5-0.5, R-78K1.8-0.5, R-78K2.5-0.5, R-78K3.3-0.5, R-78K5.0-0.5, R-78K6.5-0.5, R-78K9.0-0.5, R-78K12-0.5 and R-78K15-0.5.

  • single output
  • output current: 500mA
  • maximal output voltage tolerance: ±2,7%
  • operating temperature: -40 to +90°C
  • dimensions: 11,5x7,55x10,2mm
  • weight: 1,7g
R-78K1.5-0.5, Recom DC/DC switching regulators, 0,5A, SIL3 housing, R-78K-0.5 series

R-78K1.5-0.5

242773 R-78K1.5-0.5 R-78K1.5-0.5 Recom DC/DC switching regulator series R-78K-0.5. DC/DC switching regulators in a SIL3 housing with 0,5A and an efficiency of up to 96%. These devices are suitable for PCB mounting and are protected against short circuit as well as undervoltage. They do not require an additional heatsink and comply with EN62368-1 as well as EN55032 class B. We offer the following types of this Recom series: R-78K1.5-0.5, R-78K1.8-0.5, R-78K2.5-0.5, R-78K3.3-0.5, R-78K5.0-0.5, R-78K6.5-0.5, R-78K9.0-0.5, R-78K12-0.5 and R-78K15-0.5. single output output current: 500mA maximal output voltage tolerance: ±2,7% operating temperature: -40 to +90°C dimensions: 11,5x7,55x10,2mm weight: 1,7g

Specifications

manufacturer
Manufacturer's name R-78K1.5-0.5
Input voltage [V] 4,5...36
Output voltage [V] 1,5
Efficiency [%] 83
Ripple [mVp-p] 30
Data Sheet

Unit price

2,69 €

Stock: 55
Further delivery:
CW 06/2025
