R-78HE5.0-0.3

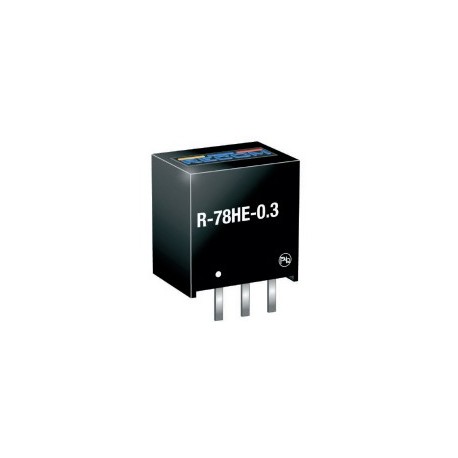

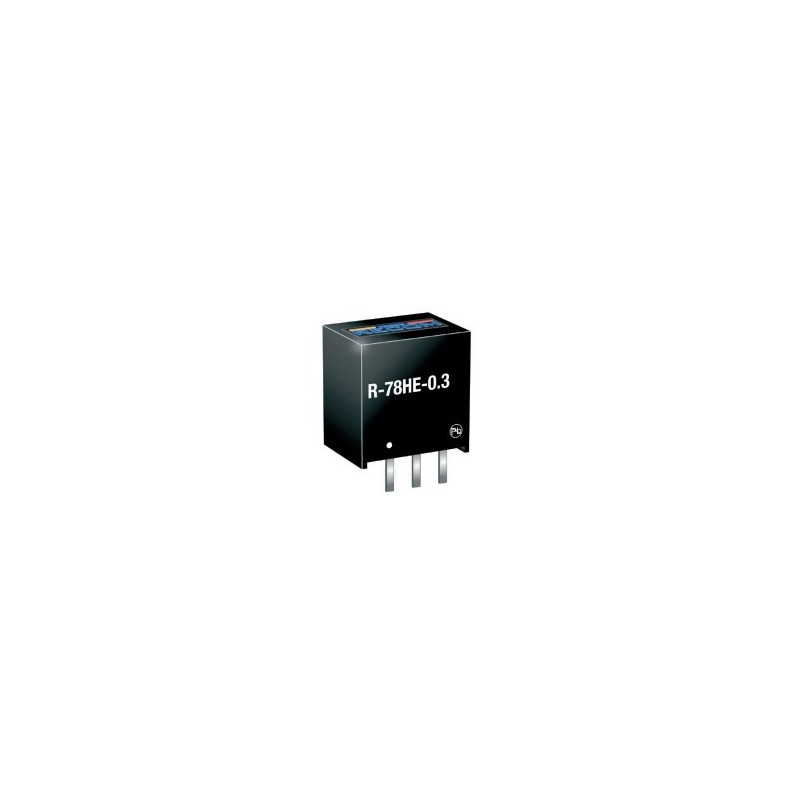

Recom DC/DC switching regulator series R-78HE-0.3

Switching regulator modules in a SIL3 housing with 0,3A and a single output. These devices are suitable for direct PCB mounting, are protected against short circuit (continuous/auto recovery) and comply with EN55032 class A as well as class B. We offer the type R-78HE5.0-0.3 of this Recom series.

  • single output
  • input voltage: 6,5 to 72V
  • output current: 0,3A
  • maximal output voltage tolerance: ±2,5%
  • maximal ripple and noise: 150mVpp
  • operating temperature: -40 to +105°C
  • dimensions: 11,5x8,5x12,5mm
  • weight: 2,6g
R-78HE5.0-0.3, Recom DC/DC switching regulators, 0,3A, SIL3 housing, R-78HE-0.3 series

R-78HE5.0-0.3

235414 R-78HE5.0-0.3 R-78HE5.0-0.3 Recom DC/DC switching regulator series R-78HE-0.3. Switching regulator modules in a SIL3 housing with 0,3A and a single output. These devices are suitable for direct PCB mounting, are protected against short circuit (continuous/auto recovery) and comply with EN55032 class A as well as class B. We offer the type R-78HE5.0-0.3 of this Recom series. single output input voltage: 6,5 to 72V output current: 0,3A maximal output voltage tolerance: ±2,5% maximal ripple and noise: 150mVpp operating temperature: -40 to +105°C dimensions: 11,5x8,5x12,5mm weight: 2,6g

Specifications

manufacturer
Manufacturer's name R-78HE5.0-0.3
Output voltage [V] 5
Input voltage range [V] 6,5...72
Efficiency [%] 83...72
Output current [mA] 300
Data Sheet

Unit price

6,39 €

Stock: 46
Further delivery:
CW 52/2024
