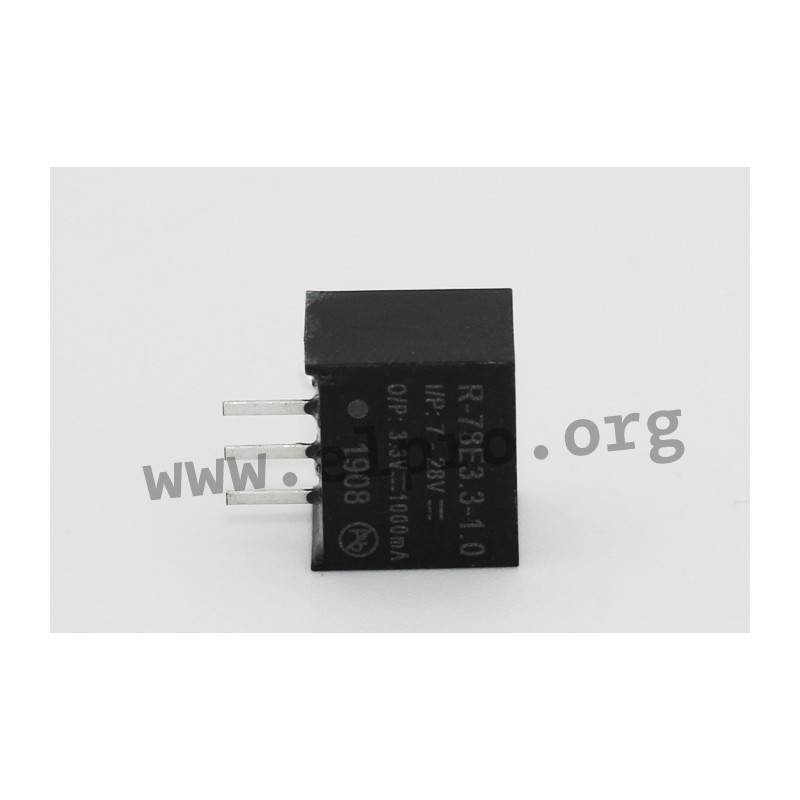

R-78E5.0-1.0

Recom DC/DC converter series R-78E-1.0

DC/DC converter modules in a SIL3 housing with 1A and partly with an epoxy resin seal (R-78E-1.0/X9). These devices are suitable for direct PCB mounting and have a high efficiency. They are protected against short circuit and comply with IEC60950-1, EN60950-1 as well as EN55032 class A. We offer the following types of this Recom series: R-78E3.3-1.0, R-78E5.0-1.0 and R-78E12-1.0/X9.

  • single output
  • maximal output voltage tolerance: 5%
  • ripple and noise: 120mVpp
  • operating temperature: -40 to +85°C
  • weight: 2g

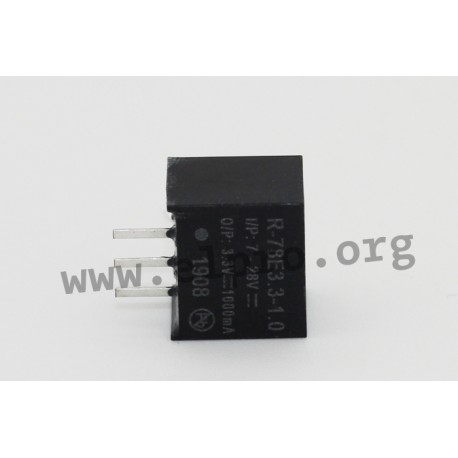

R-78E5.0-1.0, Recom DC/DC converters, 1A, SIL3 housing, R-78E-1.0 series

R-78E5.0-1.0

109081 R-78E5.0-1.0 R-78E5.0-1.0 Recom DC/DC converter series R-78E-1.0. DC/DC converter modules in a SIL3 housing with 1A and partly with an epoxy resin seal (R-78E-1.0/X9). These devices are suitable for direct PCB mounting and have a high efficiency. They are protected against short circuit and comply with IEC60950-1, EN60950-1 as well as EN55032 class A. We offer the following types of this Recom series: R-78E3.3-1.0, R-78E5.0-1.0 and R-78E12-1.0/X9. single output maximal output voltage tolerance: 5% ripple and noise: 120mVpp operating temperature: -40 to +85°C weight: 2g

Specifications

manufacturer
Manufacturer's name R-78E5.0-1.0
Output voltage [V] 5
Input voltage range [V] 8...28
Efficiency [%] 91
Data Sheet

Unit price

3,89 €

Stock: 996
Further delivery:
CW 52/2024
