R-78C3.3-1.0

Recom DC/DC converter series R-78Cxx-1.0

DC/DC converters in a SIP/SIL3 housing with output power ranging from 3.3 to 15W. These devices have an efficiency of up to 96% and do not require heatsinks due to their non-isolated nature. They come equipped with short circuit protection, thermal shutdown, and offer maximum ripple & noise of only 100mVpp. With ±3% voltage accuracy (load range:20-100%), these converters can operate within the temperature range of -40°C to +85°C making them suitable for various industrial applications. We offer the following types of this Recom series: R-78C3.3-1.0; R-78C5.0-1.0; R-78C9.0-1.0; R-78C12-1.0 and R-78C15-1.0.

  • single output
  • output: 3,3 to 15W
  • output voltage tolerance: ±3%
  • operating temperature: -40 to +85°C
  • weight: 2g
Recom R-78C series

R-78C3.3-1.0

37138 R-78C3.3-1.0 R-78C3.3-1.0 Recom DC/DC converter series R-78Cxx-1.0. DC/DC converters in a SIP/SIL3 housing with output power ranging from 3.3 to 15W. These devices have an efficiency of up to 96% and do not require heatsinks due to their non-isolated nature. They come equipped with short circuit protection, thermal shutdown, and offer maximum ripple & noise of only 100mVpp. With ±3% voltage accuracy (load range:20-100%), these converters can operate within the temperature range of -40°C to +85°C making them suitable for various industrial applications. We offer the following types of this Recom series: R-78C3.3-1.0; R-78C5.0-1.0; R-78C9.0-1.0; R-78C12-1.0 and R-78C15-1.0. single output output: 3,3 to 15W output voltage tolerance: ±3% operating temperature: -40 to +85°C weight: 2g

Specifications

manufacturer
Manufacturer's name R-78C3.3-1.0

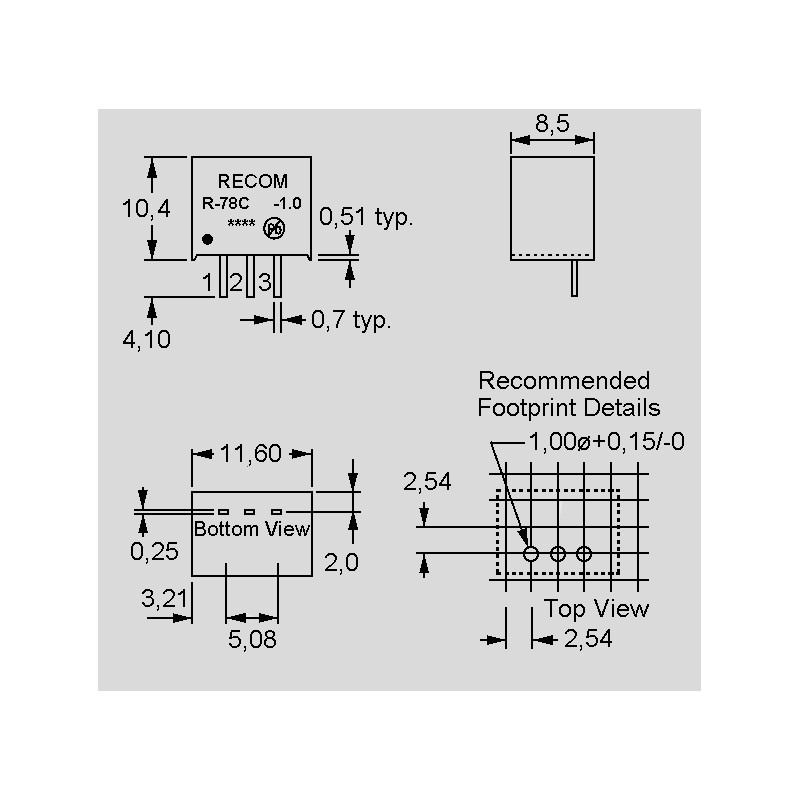

Case SIL 3 case
Input voltage [V] 7...42
Output current range [mA] 1000
Output current [mA] 1000
Efficiency [%] 89...79
Data Sheet

Unit price

10,69 €

Stock: 232
Further delivery:
CW 04/2025
