R-78CK15-0.5

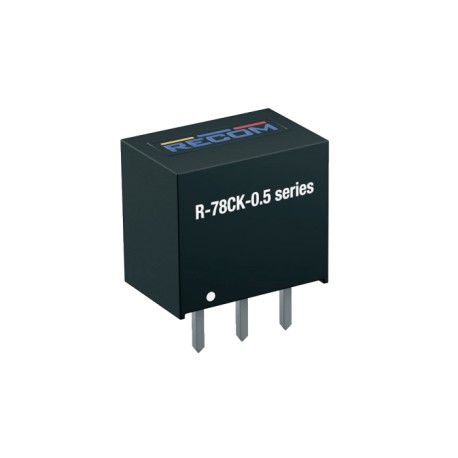

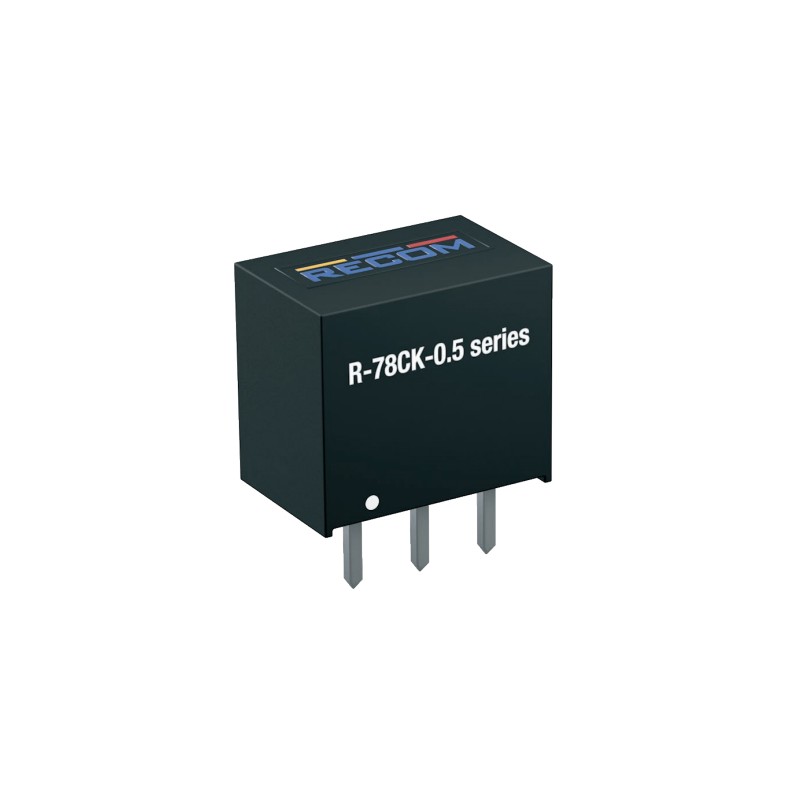

Recom DC/DC switching regulator series R-78CK-0.5

DC/DC switching regulators in a SIL3 housing with 0,5A output current and a low ripple and noise. These devices are suitable for PCB mounting and are protected against short circuit. They do not require a heatsink and comply with EN62368-1 as well as EN55032 class A/B. We offer the following types of this Recom series: R-78CK3.3-0.5, R-78CK5.0-0.5, R-78CK12-0.5 and R-78CK15-0.5.

  • single output
  • output: 0,5A
  • maximal output tolerance: ±3%
  • operating temperature: -40 to +100°C
  • dimensions: 11,5x7,55x10,2mm
  • weight: 1,7g
R-78CK15-0.5, Recom DC/DC switching regulators, 0,5A, SIL3 housing, R-78CK-0.5 series

R-78CK15-0.5

243306 R-78CK15-0.5 R-78CK15-0.5 Recom DC/DC switching regulator series R-78CK-0.5. DC/DC switching regulators in a SIL3 housing with 0,5A output current and a low ripple and noise. These devices are suitable for PCB mounting and are protected against short circuit. They do not require a heatsink and comply with EN62368-1 as well as EN55032 class A/B. We offer the following types of this Recom series: R-78CK3.3-0.5, R-78CK5.0-0.5, R-78CK12-0.5 and R-78CK15-0.5. single output output: 0,5A maximal output tolerance: ±3% operating temperature: -40 to +100°C dimensions: 11,5x7,55x10,2mm weight: 1,7g

Specifications

manufacturer
Manufacturer's name R-78CK15-0.5
Output voltage [V] 15
Input voltage range [V] 18...40
Efficiency [%] 96
Ripple [mVp-p] 150
Data Sheet

Unit price

3,09 €

Stock: 0
Next incoming goods:
CW 05/2025
43 units

Further delivery:
CW 11/2025
