R-78B15-1.0

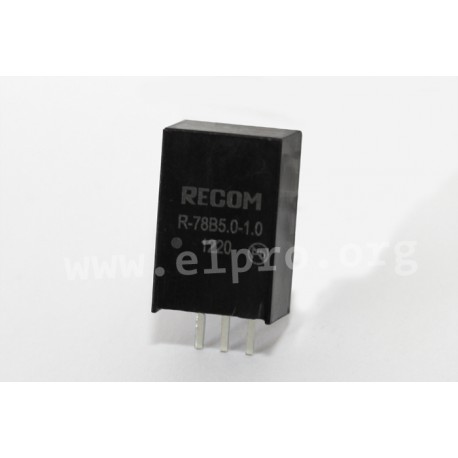

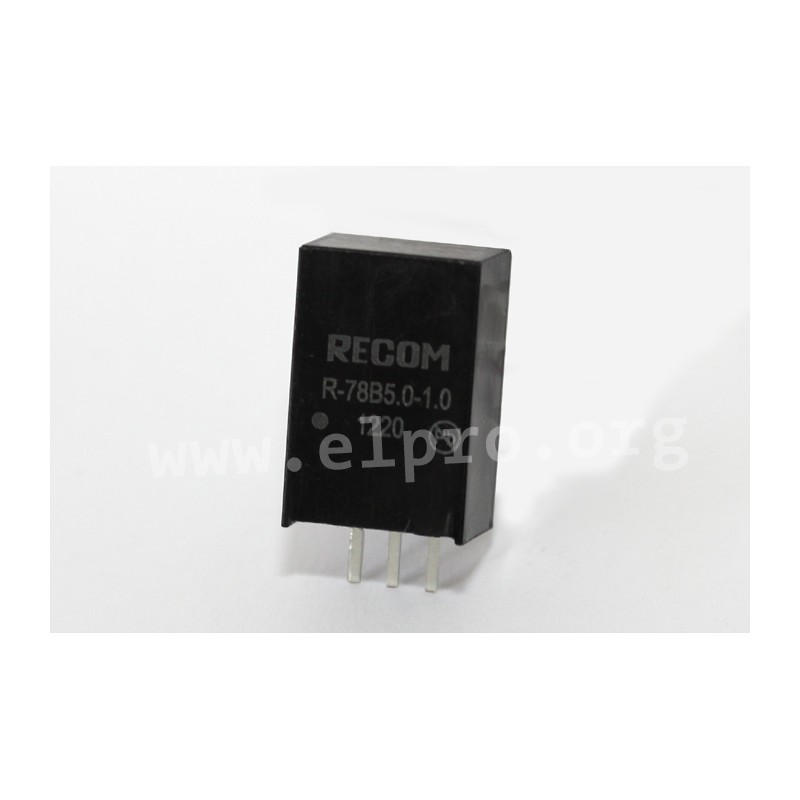

Recom DC/DC converter series R-78B

DC/DC converters in a SIL3 housing with 1A output current and maximal output voltage tolerance of ±3% (at 100% load). These devices are suitable for direct PCB mounting without the need for heatsinks. They have short circuit protection (thermal shutdown) and low ripple and noise, making them ideal for use in various applications. Some models come with 90° angled pins (R-78B_-1.0L). The operating temperature range is -40 to +85°C, ensuring reliable performance even under extreme conditions. We offer various types of this Recom series.

  • single output
  • output: 1,8 to 15W
  • output current: 1A
  • operating temperature: -40 to +85°C
Recom R-78B series

R-78B15-1.0

37124 R-78B15-1.0 R-78B15-1.0 Recom DC/DC converter series R-78B . DC/DC converters in a SIL3 housing with 1A output current and maximal output voltage tolerance of ±3% (at 100% load). These devices are suitable for direct PCB mounting without the need for heatsinks. They have short circuit protection (thermal shutdown) and low ripple and noise, making them ideal for use in various applications. Some models come with 90° angled pins (R-78B_-1.0L). The operating temperature range is -40 to +85°C, ensuring reliable performance even under extreme conditions. We offer various types of this Recom series. single output output: 1,8 to 15W output current: 1A operating temperature: -40 to +85°C

Specifications

manufacturer
Manufacturer's name R-78B15-1.0

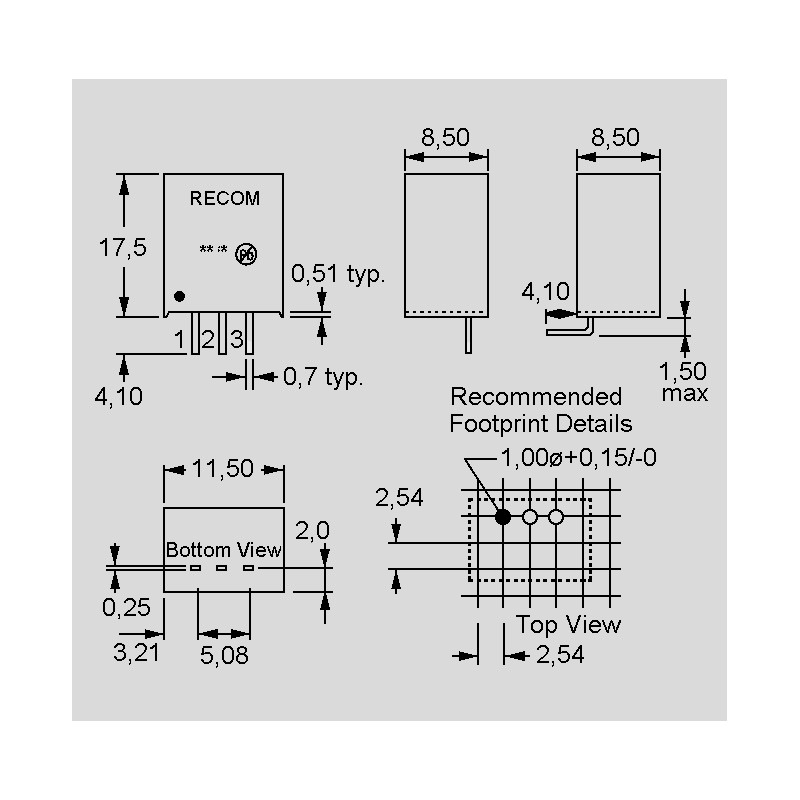

Case SIL 3 case
Input voltage [V] 20...32
Output voltage [V] 15
Output current [mA] 1000
Efficiency [%] 97...96
Data Sheet

Unit price

11,09 €

Stock: 234
Further delivery:
CW 06/2025
