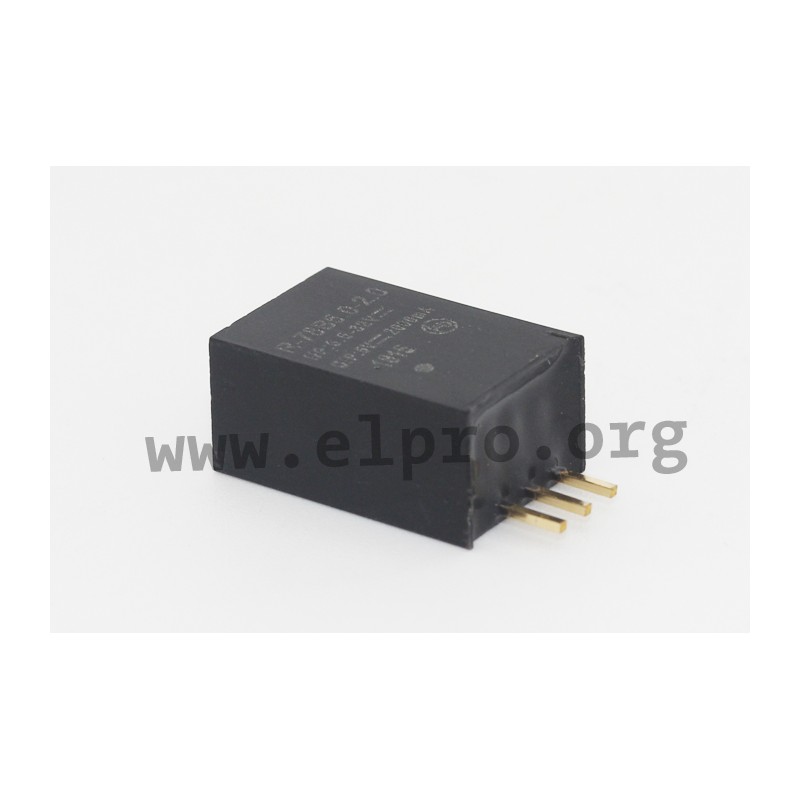

R-78B12-2.0

Recom DC/DC converter series R-78B-2.0

DC/DC converters in a SIL3 housing with a single output. These devices have a continuous short circuit protection and do not need a heatsink. They are suitable for direct PCB mounting and comply with EN62368-1, EN55032 class A and class B. We offer the following types of this Recom series: R-78B3.3-2.0, R-78B5.0-2.0, R-78B9.0-2.0, R-78B12-2.0 and R-78B15-2.0.

  • single output
  • output current: 2A
  • maximal voltage accuracy (at 100% load): ±2%
  • maximal ripple and noise 3,3V: 50mVpp
  • maximal ripple and noise 5 bis 15V: 75mVpp
  • operating temperature: -40 bis +70°C
  • weight: 4,0g

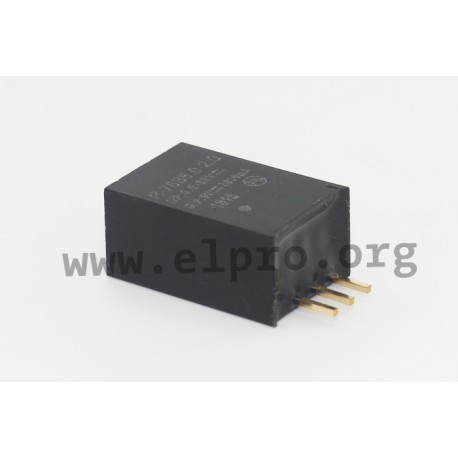

Recom R-78B-2,0 series

R-78B12-2.0

109042 R-78B12-2.0 R-78B12-2.0 Recom DC/DC converter series R-78B-2.0. DC/DC converters in a SIL3 housing with a single output. These devices have a continuous short circuit protection and do not need a heatsink. They are suitable for direct PCB mounting and comply with EN62368-1, EN55032 class A and class B. We offer the following types of this Recom series: R-78B3.3-2.0, R-78B5.0-2.0, R-78B9.0-2.0, R-78B12-2.0 and R-78B15-2.0. single output output current: 2A maximal voltage accuracy (at 100% load): ±2% maximal ripple and noise 3,3V: 50mVpp maximal ripple and noise 5 bis 15V: 75mVpp operating temperature: -40 bis +70°C weight: 4,0g

Specifications

manufacturer
Manufacturer's name R-78B12-2.0
Output voltage [V] 12
Input voltage range [V] 15...32
Efficiency [%] 94...96
Output current [mA] 2000
Data Sheet

Unit price

11,99 €

Stock: 81
Further delivery:
CW 06/2025
