R-78AA15-0.5SMD

DC/DC-converter-modules R-78AA by Recom

• output power: 7.5 W
• SMD housing
• single output
• for direct PCB mounting
• efficiency up to 97%
• non-isulated, no need for heatsinks
• short circuit protection, thermal shutdown
• ripple and noise: 40mVpp
• adjustable output voltage
• ±3% voltage accuracy (load 20 to 100%)
• operating temperature: -40 to +85°C
• by Recom

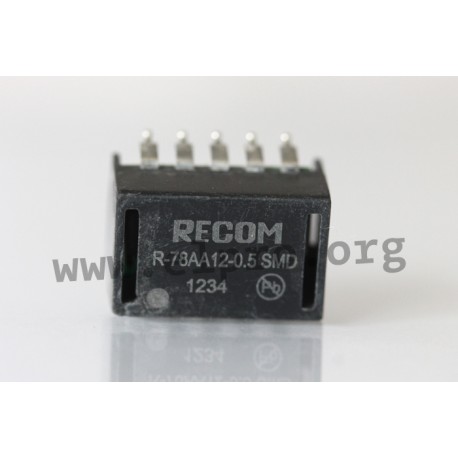

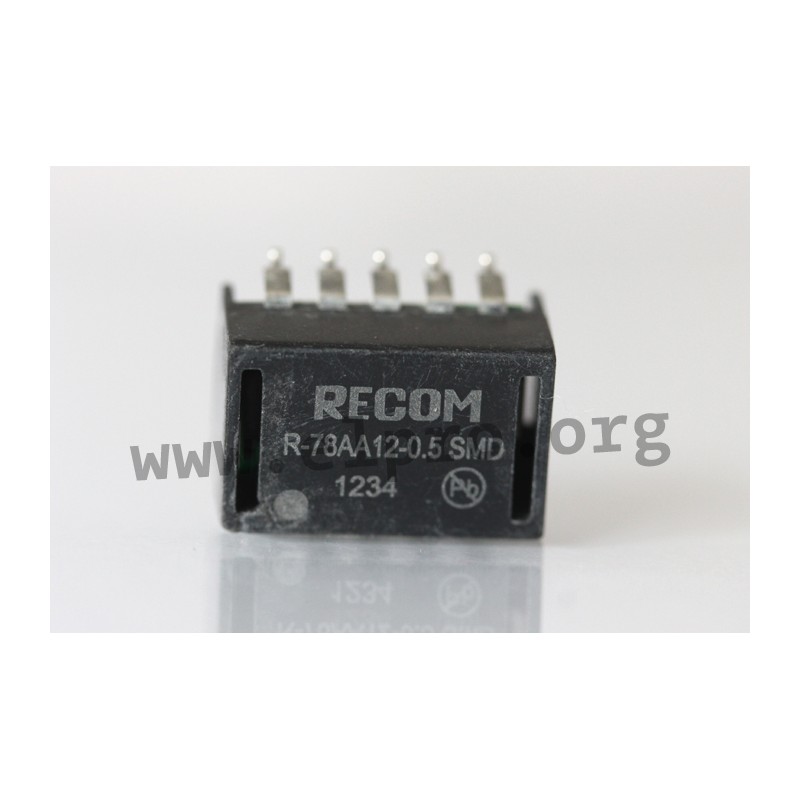

DC/DC-converter modules series R-78AA12-0.5SMD

R-78AA15-0.5SMD

109031 R-78AA15-0.5SMD R-78AA15-0.5SMD DC/DC-converter-modules R-78AA by Recom. • output power: 7.5 W• SMD housing• single output• for direct PCB mounting• efficiency up to 97%• non-isulated, no need for heatsinks• short circuit protection, thermal shutdown• ripple and noise: 40mVpp• adjustable output voltage• ±3% voltage accuracy (load 20 to 100%)• operating temperature: -40 to +85°C• by Recom

Specifications

manufacturer
Manufacturer's name R-78AA15-0.5SMD
Input voltage [V] 18...32
Output voltage [V] 15
Efficiency [%] 97...95
Output voltage adjustment [V] fixed
Output current [mA] 500
Data Sheet

Unit price

10,19 €

Stock: 33
Further delivery:
CW 19/2025
