R-78AA5.0-0.5SMD-R

Recom DC/DC converter series R-78AA-05

DC/DC buck converters in an SMD housing with 0,5A and an adjustable output voltage. These devices are suitable for direct PCB mounting and are protected against short circuit (thermal shutdown). We offer the following types of this Recom series: R-78AA3.3-0.5SMD-R and R-78AA5.0-0.5SMD-R.

  • single output
  • output current: 0,5A
  • maximal output voltage tolerance: ±3%
  • maximal ripple and noise: 30mVpp
  • operating temperature: -40 to +85°C
  • weight: 2,7g

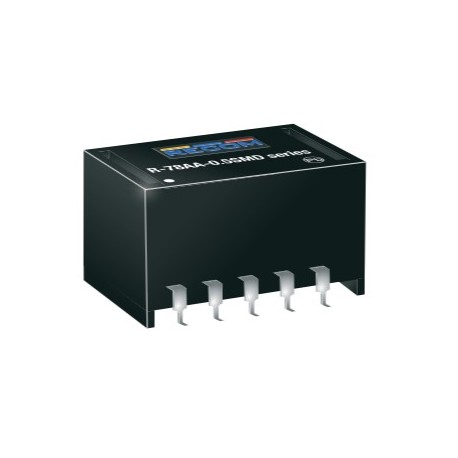

R-78AA5.0-0.5SMD-R, Recom DC/DC switching regulators, 0,5A, SMD, R-78AA-05 series

R-78AA5.0-0.5SMD-R

237753 R-78AA5.0-0.5SMD-R R-78AA5.0-0.5SMD-R Recom DC/DC converter series R-78AA-05. DC/DC buck converters in an SMD housing with 0,5A and an adjustable output voltage. These devices are suitable for direct PCB mounting and are protected against short circuit (thermal shutdown). We offer the following types of this Recom series: R-78AA3.3-0.5SMD-R and R-78AA5.0-0.5SMD-R. single output output current: 0,5A maximal output voltage tolerance: ±3% maximal ripple and noise: 30mVpp operating temperature: -40 to +85°C weight: 2,7g

Specifications

manufacturer
Manufacturer's name R-78AA5.0-0.5SMD-R
Input voltage [V] 6,5...32
Output voltage [V] 5
Efficiency [%] 94...86
Output current [A] 0,5
Ripple [mVp-p] 30
Output voltage adjustment [V] 3...8
Data Sheet

Unit price

9,59 €

Stock: 175
Further delivery:
CW 01/2025
