R-625.0P

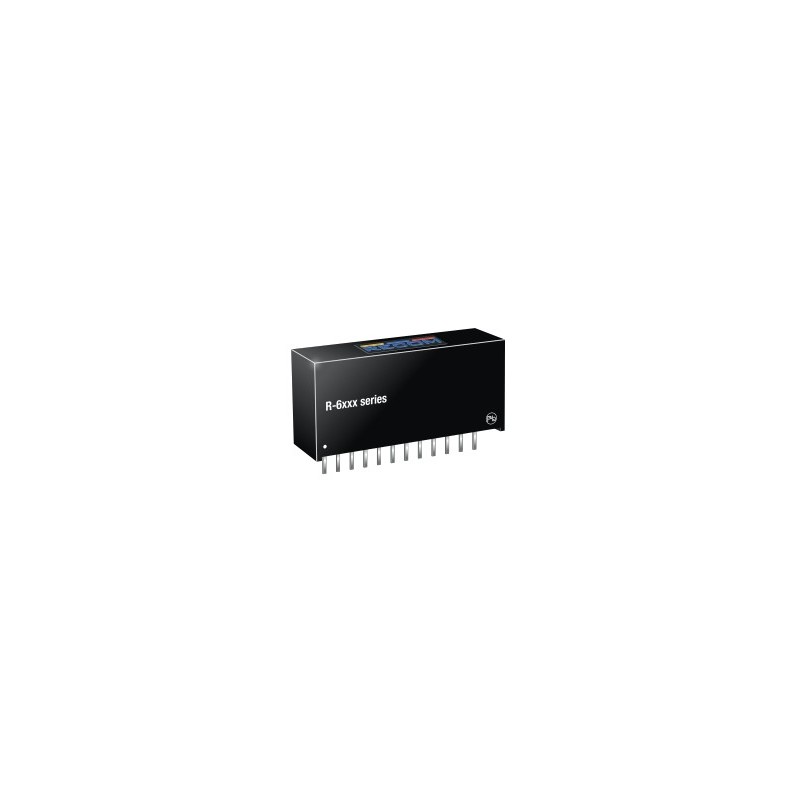

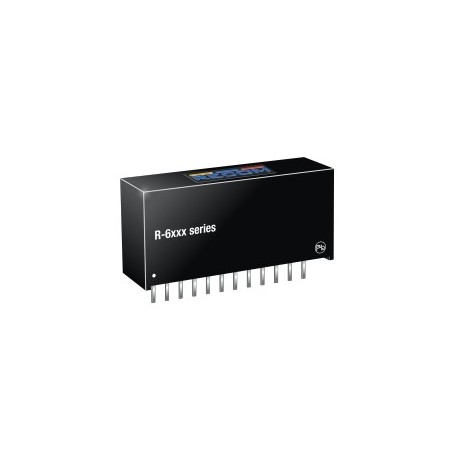

Recom DC/DC switching regulator series R-6xxx

Converter modules in a SIL12 housing with an integrated switching regulator and an ON/OFF control. These devices are suitable for direct PCB mounting, are protected against short circuit (continuous) and comply with EN6050-1. We offer the following types of this Recom series: R-615.0P, R-619.0P, R-625.0P, R629.0P and R-6212P.

  • single output
  • maximal output voltage tolerance: ±2%
  • maximal ripple and noise R-61_: 100mVpp
  • maximal ripple and noise R-62_: 120mVpp
  • operating temperature: -40 to +85°C
  • weight: 9g
R-625.0P, Recom DC/DC switching regulators, 1 and 2A, SIL12 housing, R-6xxx series

R-625.0P

109071 R-625.0P R-625.0P Recom DC/DC switching regulator series R-6xxx. Converter modules in a SIL12 housing with an integrated switching regulator and an ON/OFF control. These devices are suitable for direct PCB mounting, are protected against short circuit (continuous) and comply with EN6050-1. We offer the following types of this Recom series: R-615.0P, R-619.0P, R-625.0P, R629.0P and R-6212P. single output maximal output voltage tolerance: ±2% maximal ripple and noise R-61_: 100mVpp maximal ripple and noise R-62_: 120mVpp operating temperature: -40 to +85°C weight: 9g

Specifications

manufacturer
Manufacturer's name R-625.0P
Output voltage [V] 1,8...9
Input voltage range [V] 9...32
Efficiency [%] 90
Output current [mA] 2000
