RBB10-2.0-CT

Recom DC/DC switching regulator series RBB10-2.0-CT and RBB10-2.0

10W buck/boost converters in a thermally enhanced 25 pin LGA housing with 4A, an adjustable output voltage, a 6-sided shieldung and a compact DOSA-compatible footprint. These devices have a standy power consumption of 7µA, are protected against short circuit, overcurrent as well as overtemperature and comply with EN55032. We offer the types RBB10-2.0CT and RBB10-2.0 of this Recom series.

  • single output
  • output current: 2A
  • maximal output voltage tolerance: 3%
  • maximal ripple and noise: 15mVpp
  • operating temperature (up to 4A load): -40 to +85°C
  • operating temperature (up to 2A load): -40 to +100°C
  • dimensions: 12,19x12,19x3,75mm
  • weight: 1,1g

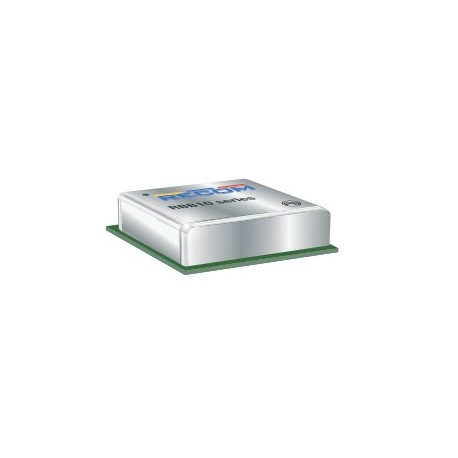

RBB10-2.0-CT, Recom DC/DC switching regulators, 2A, LGA25 housing, RBB10-2.0-CT series

RBB10-2.0-CT

235431 RBB10-2.0-CT RBB10-2.0-CT Recom DC/DC switching regulator series RBB10-2.0-CT and RBB10-2.0. 10W buck/boost converters in a thermally enhanced 25 pin LGA housing with 4A, an adjustable output voltage, a 6-sided shieldung and a compact DOSA-compatible footprint. These devices have a standy power consumption of 7µA, are protected against short circuit, overcurrent as well as overtemperature and comply with EN55032. We offer the types RBB10-2.0CT and RBB10-2.0 of this Recom series. single output output current: 2A maximal output voltage tolerance: 3% maximal ripple and noise: 15mVpp operating temperature (up to 4A load): -40 to +85°C operating temperature (up to 2A load): -40 to +100°C dimensions: 12,19x12,19x3,75mm weight: 1,1g

Specifications

manufacturer
Manufacturer's name RBB10-2.0-CT
Output voltage [V] 5
Input voltage range [V] 2,3...5,5
Output current range [mA] 2000...4000
Efficiency [%] 96
Data Sheet

Unit price

10,99 €

Stock: 60
Further delivery:
CW 37/2025
