42H326000

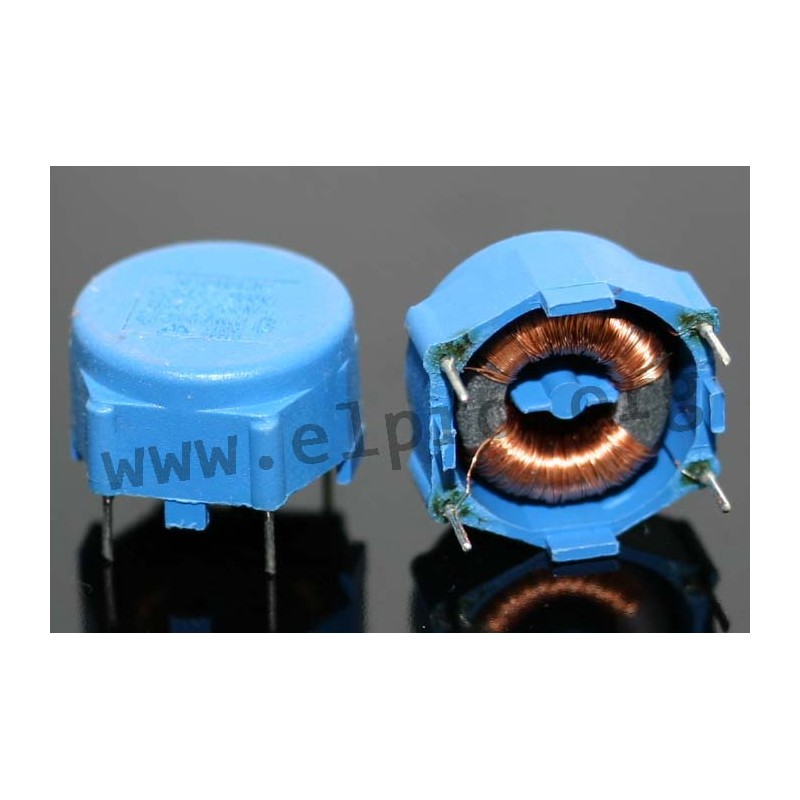

Radiohm current-compensated chokes series 42H/ 42V/ 32V

Current compensated chokes used for the suppression of asymmetrical interference signals on power supply lines and to suppress most of power line-tied interference signals. These devices are fitted with a high-permeability toroid core (ferrite). They are encased in a flame retardant plastic material in accordance with UL94V-0 for horizontal or vertical mounting, as well as they have 4 tinned soldering pins (d=0,8mm). We offer various types of this radiohm series.

  • horizontal (42H_) or vertical (42V)
  • rated voltage: 250V
  • inductance tolerance: ±30%
  • inductance loss: <10% at DC initial loading with IN
  • testing voltage: 1500V/50Hz, 2s, winding to winding
  • climatic category: DIN GKC (-40...+125°C)
  • humidity: Cat. C
  • ambient temperature: +60°C
  • derating (Dependent on TU): I=0 (+120°C)
  • overtemperature of windings: <55°C at rated current
  • temperature of windings, max.: 115°C

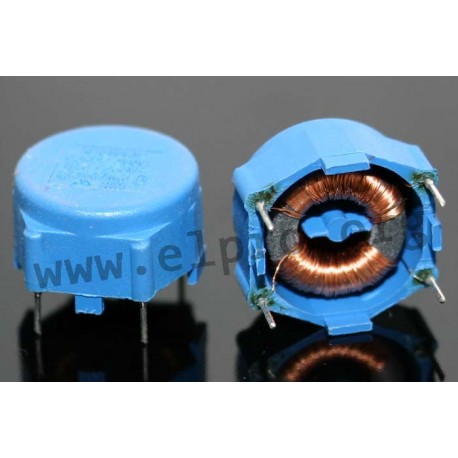

42H_

42H326000

40865 42H326000 42H326000 Radiohm current-compensated chokes series 42H/ 42V/ 32V. Current compensated chokes used for the suppression of asymmetrical interference signals on power supply lines and to suppress most of power line-tied interference signals. These devices are fitted with a high-permeability toroid core (ferrite). They are encased in a flame retardant plastic material in accordance with UL94V-0 for horizontal or vertical mounting, as well as they have 4 tinned soldering pins (d=0,8mm). We offer various types of this radiohm series. horizontal (42H_) or vertical (42V) rated voltage: 250V inductance tolerance: ±30% inductance loss: &lt;10% at DC initial loading with IN testing voltage: 1500V/50Hz, 2s, winding to winding climatic category: DIN GKC (-40...+125°C) humidity: Cat. C ambient temperature: +60°C derating (Dependent on TU): I=0 (+120°C) overtemperature of windings: &lt;55°C at rated current temperature of windings, max.: 115°C

Specifications

manufacturer
Manufacturer's name 42H326000

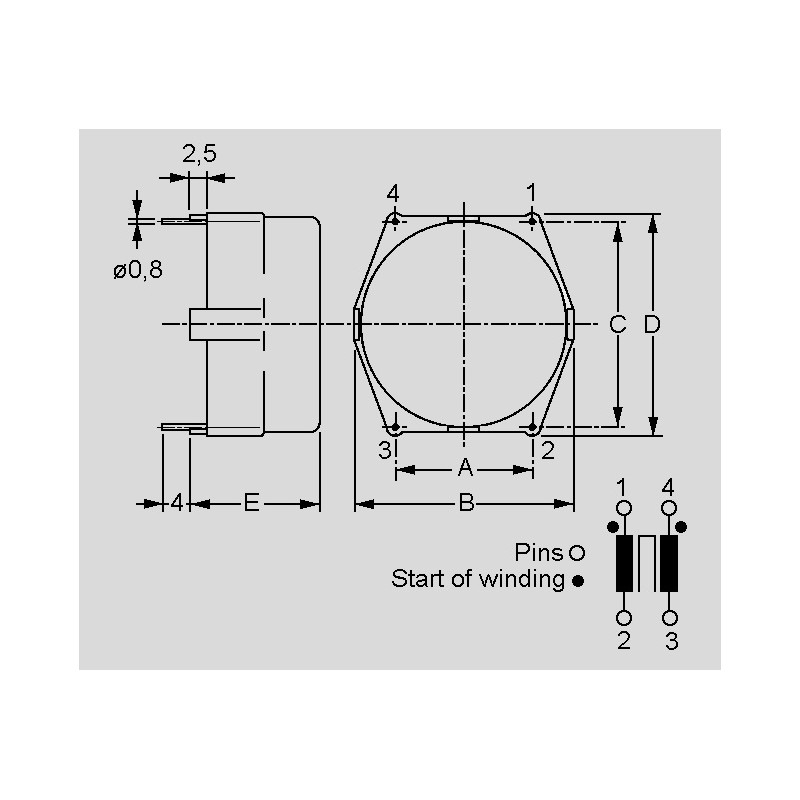

E [mm] 19,5
Nominal resistance [mΩ] 25
Rated current [A] 6
A [mm] 20
Width [mm] 32
E [mm] 19,5
D [mm] 32,5
C [mm] 30
Rated inductance [mH] 1,8
Data Sheet

Unit price

2,19 €

Stock: 513
Further delivery:
CW 12/2025

Minimum order quantity 1 to 9 units or multiples of 12 plus 0 to 9 .
