> Passive elements>Terminals>DIN rail terminals>PTR terminal blocks, 2,5mm², for DIN rail, SR2.5 series>SRSL 2,5-T35

Manufacturers

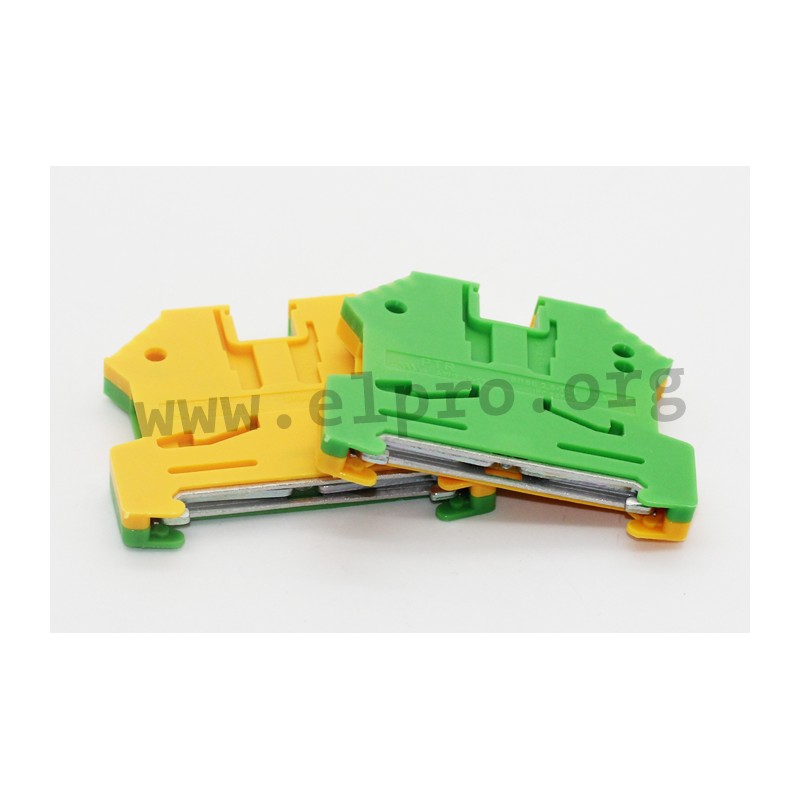

SRSL 2,5-T35

DIN-rail terminals

• for DIN-rai TS35
* reliable connection of the conductor without any special preparation
• vibration-proof and gastight connections
• connect and disconnect of the conductor by using a screw-driver
• by PTR Messtechnik
• rated voltage: UL, CSA: 600V
• rated voltage IEC 947-7-1: 800V
• rated current UL, CSA: 20A
• rated current IEC 947-7-1: 24A
• rated cross section, max. solid wire: 0.2 to 4mm²
• rated cross section, max. stranded wire: 0.2 to 2.5mm²
• dimensions: 52x6x52mm
• stripped length: 10mm
• tightening torque: 0.7Nm
• color: green/yellow

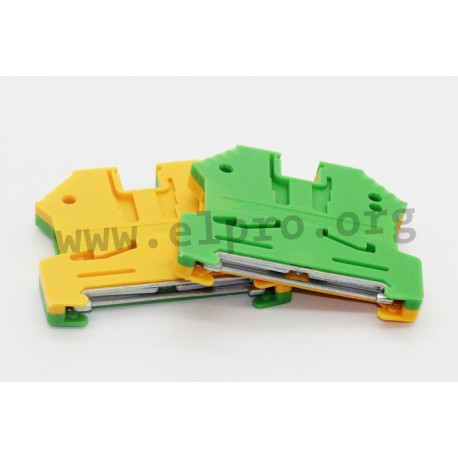

41056.2, PTR terminal blocks, 2,5mm², for DIN rail, SR2.5 series

SRSL 2,5-T35

13913 SRSL 2,5-T35 41056.2 41056.2 DIN-rail terminals. • for DIN-rai TS35* reliable connection of the conductor without any special preparation• vibration-proof and gastight connections• connect and disconnect of the conductor by using a screw-driver• by PTR Messtechnik• rated voltage: UL, CSA: 600V• rated voltage IEC 947-7-1: 800V• rated current UL, CSA: 20A• rated current IEC 947-7-1: 24A• rated cross section, max. solid wire: 0.2 to 4mm²• rated cross section, max. stranded wire: 0.2 to 2.5mm²• dimensions: 52x6x52mm• stripped length: 10mm• tightening torque: 0.7Nm• color: green/yellow

Specifications

manufacturer
Manufacturer's name 41056.2
Data Sheet

Unit price

1,33 €

Stock: 354
Further delivery:
CW 05/2025

Minimum order quantity 1 to 4 units or multiples of 5 plus 0 to 4 .
