SR 2,5 blau

DIN-rail terminals

• reliable connection of the conductor without any special preparation
• vibration-proof and gastight connections
• connect and disconnect of the conductor by using a screw-driver
• by PTR Messtechnik
• rated voltage UL, CSA: 600V
* rated voltage IEC 947-7-1: 800V
• rated current UL, CSA: 20A
* rated current IEC 947-7-1: 24A
• rated cross section, max. solid wire: 0.2 to 4mm²
• rated cross section, stranded wire: 0.2 to 2.5mm²
• dimensions: 48x5x52mm
• stripped length: 7mm
• tightening torque: 0.7Nm
* colour: blue

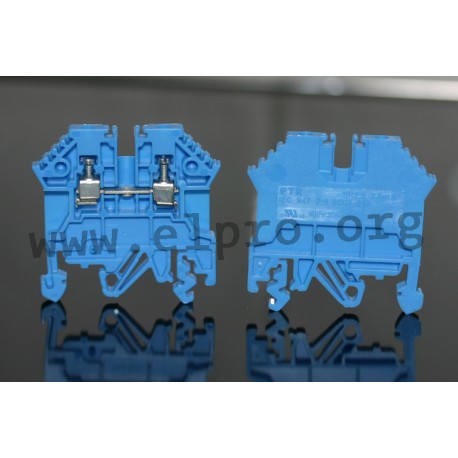

SR 2,5 blau by PTR

SR 2,5 blau

13910 SR 2,5 blau 41296.5 41296.5 DIN-rail terminals. • reliable connection of the conductor without any special preparation• vibration-proof and gastight connections• connect and disconnect of the conductor by using a screw-driver• by PTR Messtechnik• rated voltage UL, CSA: 600V* rated voltage IEC 947-7-1: 800V• rated current UL, CSA: 20A* rated current IEC 947-7-1: 24A• rated cross section, max. solid wire: 0.2 to 4mm²• rated cross section, stranded wire: 0.2 to 2.5mm²• dimensions: 48x5x52mm• stripped length: 7mm• tightening torque: 0.7Nm* colour: blue

Specifications

manufacturer
Manufacturer's name 41296.5
Data Sheet

Unit price

0,658 €

Stock: 85
Next incoming goods:
CW 51/2024
100 units

Further delivery:
CW 01/2025

Minimum order quantity 5 units or
multiples of 5.
