STLZ950/6-5.08-H-P2.6-BK-HCHTR

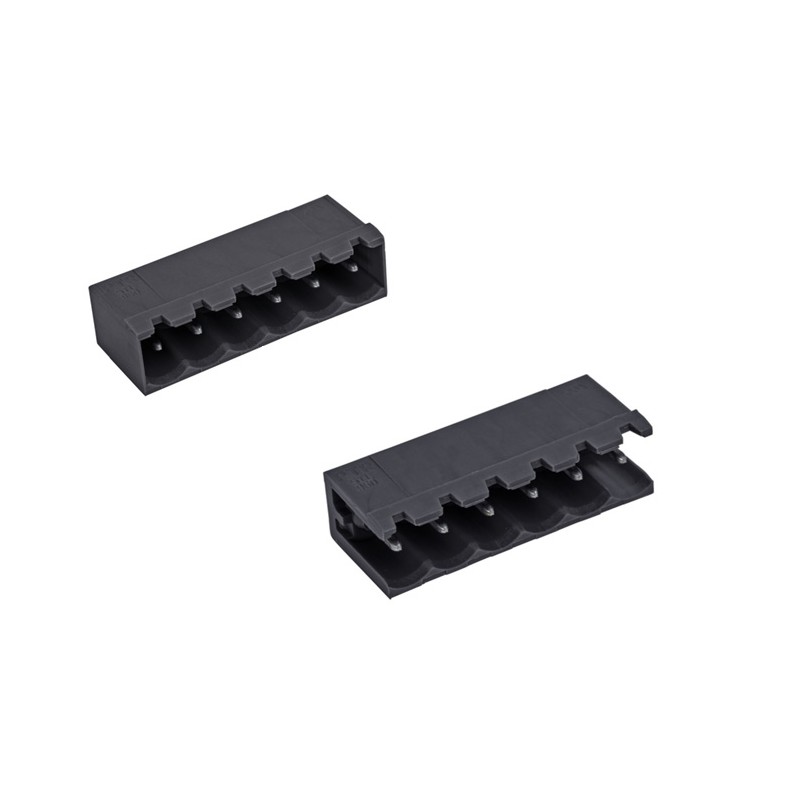

PTR Hartmann box header series STLZ950_HC

These box headers in a horizontal plug direction have a pitch of 5,08mm, and a nominal current of 16A. These devices are available in the following types: STLZ950_H-BK-HC-HT: open sides, suitable for reflow, black; STLZ950_H-BK-HC-HT-G: open sides, strapped, suitable for reflow, black; STLZ950_G-H-BK-HC-HT: closed sides, suitable for reflow, black; STLZ950_G-H-BK-HC-HT-G: closed sides, strapped, suitable for reflow, black; STLZ950_F-H-BK-HC-HT: with flange, threaded brass insert, suitable for reflow, black; STLZ950_F-H-BK-HC-HT-G: with flange, threaded brass insert, strapped, suitable for reflow, black; STLZ950WH-HC: closed sides, not suitable for reflow, green. We offer various tpes of this PTR Hartmann series.

  • nominal voltage: 250V AC
  • nominal current: 16A
  • over voltage category: III
  • test voltage: 4kV
  • pollution level: 3
  • isolation body: PA 6.6 (STLZ950WH_), PPA (STLZ950_)
  • operating temperature: -40 to 105°C
  • inflammability class: UL94V-0
  • colour: green (STLZ950WH_), black (STLZ950_)

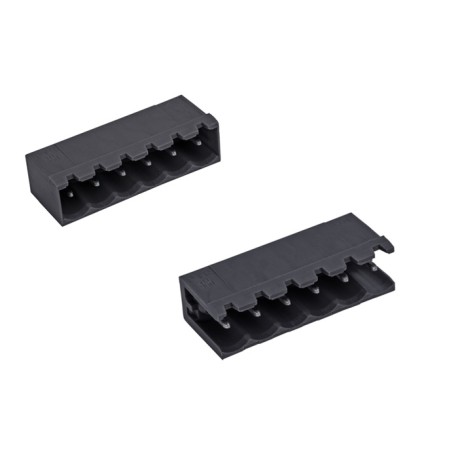

STLZ950/6-5.08-H-P2.6-BK-HCHTR, PTR Hartmann box headers, pitch 5,08mm, horizontal, 16A, STLZ950_HC series

STLZ950/6-5.08-H-P2.6-BK-HCHTR

248362 STLZ950/6-5.08-H-P2.6-BK-HCHTR STLZ950/6-5.08-H-P2.6-BK-HCHTR PTR Hartmann box header series STLZ950_HC. These box headers in a horizontal plug direction have a pitch of 5,08mm, and a nominal current of 16A. These devices are available in the following types: STLZ950_H-BK-HC-HT: open sides, suitable for reflow, black; STLZ950_H-BK-HC-HT-G: open sides, strapped, suitable for reflow, black; STLZ950_G-H-BK-HC-HT: closed sides, suitable for reflow, black; STLZ950_G-H-BK-HC-HT-G: closed sides, strapped, suitable for reflow, black; STLZ950_F-H-BK-HC-HT: with flange, threaded brass insert, suitable for reflow, black; STLZ950_F-H-BK-HC-HT-G: with flange, threaded brass insert, strapped, suitable for reflow, black; STLZ950WH-HC: closed sides, not suitable for reflow, green. We offer various tpes of this PTR Hartmann series. nominal voltage: 250V AC nominal current: 16A over voltage category: III test voltage: 4kV pollution level: 3 isolation body: PA 6.6 (STLZ950WH_), PPA (STLZ950_) operating temperature: -40 to 105°C inflammability class: UL94V-0 colour: green (STLZ950WH_), black (STLZ950_)

Specifications

manufacturer
Manufacturer's name STLZ950/6-5....

Unit price

0,623 €

Stock: 0
Further delivery:
CW 01/2025

Minimum order quantity 330 units or
multiples of 330.
