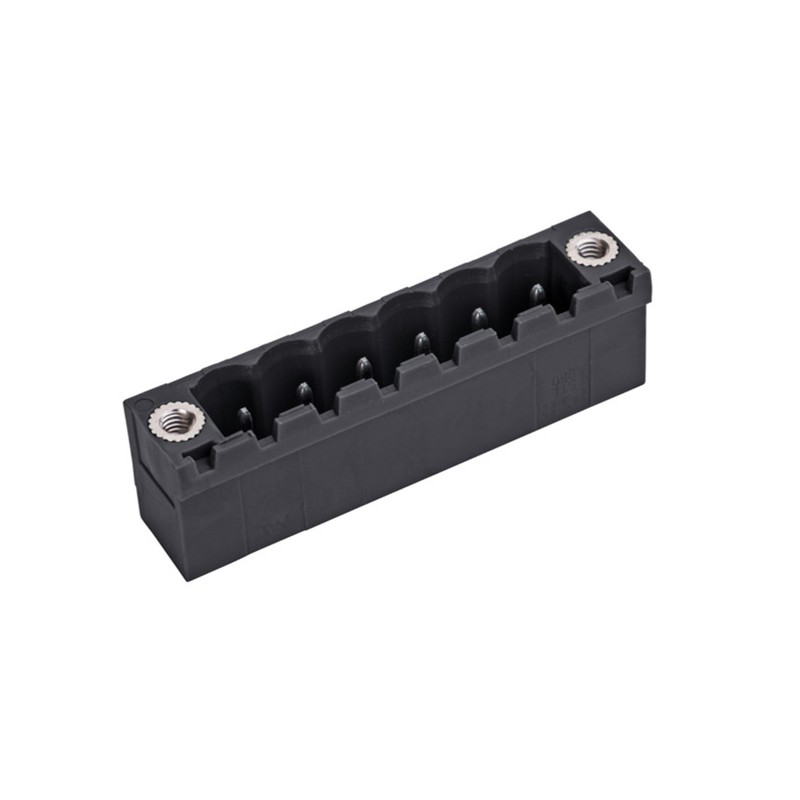

STLZ950/3F-5.08-V-P2.6-BK-HTR

PTR Hartmann box header series STLZ950

These box headers in a vertical plug direction have a pitch of 5,08mm, and a nominal current of 12A. These devices are available in the following types: STLZ950_V-BK-HT: open sides, suitable for reflow, black; STLZ950_V-BK-HT-G: open sides, strapped, suitable for reflow, black; STLZ950_G-V-BK-HT: closed sides, suitable for reflow, black; STLZ950_G-V-BK-HT-G: closed sides, strapped, suitable for reflow, black; STLZ950_F-V-BK-HT: with flange, threaded brass insert, suitable for reflow, black; STLZ950_F-V-BK-HT-G: with flange, threaded brass insert, strapped, suitable for reflow, black; STLZ950WV_: closed sides, not suitable for reflow, green; STLZ951-V_: open sides, not suitable for reflow, green. We offer various tpes of this PTR Hartmann series.

  • nominal voltage: 250V AC
  • nominal current: 12A
  • over voltage category: III
  • test voltage: 4kV
  • pollution level: 3
  • isolation body: PA 6.6 (STLZ950WV_, STLZ951-V_), PPA (STLZ950_)
  • operating temperature: -40 to 105°C
  • inflammability class: UL94V-0
  • colour: green (STLZ950WV_, STLZ951-V_), black (STLZ950_)

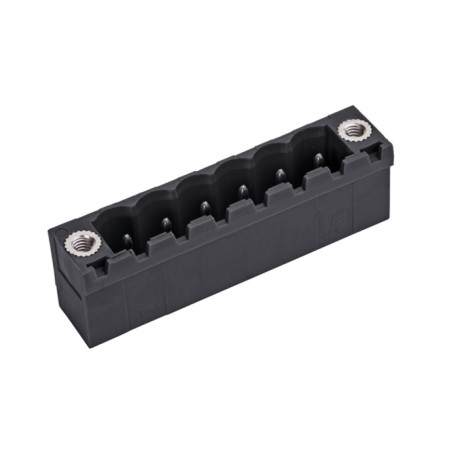

STLZ950/3F-5.08-V-P2.6-BK-HTR

STLZ950/3F-5.08-V-P2.6-BK-HTR

248231 STLZ950/3F-5.08-V-P2.6-BK-HTR STLZ950/3F-5.08-V-P2.6-BK-HTR PTR Hartmann box header series STLZ950. These box headers in a vertical plug direction have a pitch of 5,08mm, and a nominal current of 12A. These devices are available in the following types: STLZ950_V-BK-HT: open sides, suitable for reflow, black; STLZ950_V-BK-HT-G: open sides, strapped, suitable for reflow, black; STLZ950_G-V-BK-HT: closed sides, suitable for reflow, black; STLZ950_G-V-BK-HT-G: closed sides, strapped, suitable for reflow, black; STLZ950_F-V-BK-HT: with flange, threaded brass insert, suitable for reflow, black; STLZ950_F-V-BK-HT-G: with flange, threaded brass insert, strapped, suitable for reflow, black; STLZ950WV_: closed sides, not suitable for reflow, green; STLZ951-V_: open sides, not suitable for reflow, green. We offer various tpes of this PTR Hartmann series. nominal voltage: 250V AC nominal current: 12A over voltage category: III test voltage: 4kV pollution level: 3 isolation body: PA 6.6 (STLZ950WV_, STLZ951-V_), PPA (STLZ950_) operating temperature: -40 to 105°C inflammability class: UL94V-0 colour: green (STLZ950WV_, STLZ951-V_), black (STLZ950_)

Specifications

manufacturer
Manufacturer's name STLZ950/3F-5...
Data Sheet

Unit price

0,616 €

Stock: 0
Further delivery:
CW 01/2025

Minimum order quantity 140 units or
multiples of 140.
