STLZ 950/03 G-5,08-V

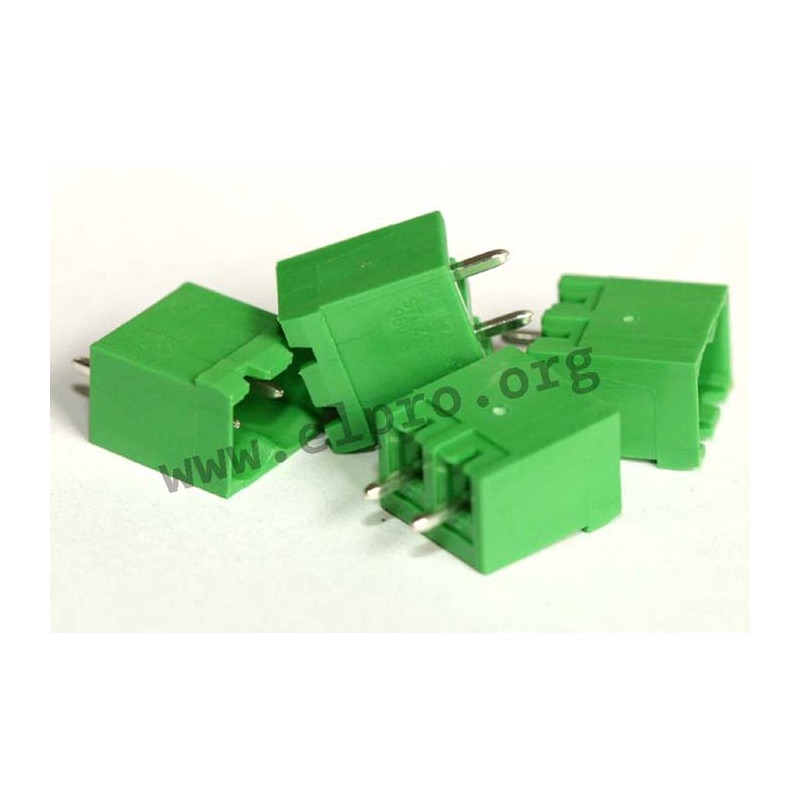

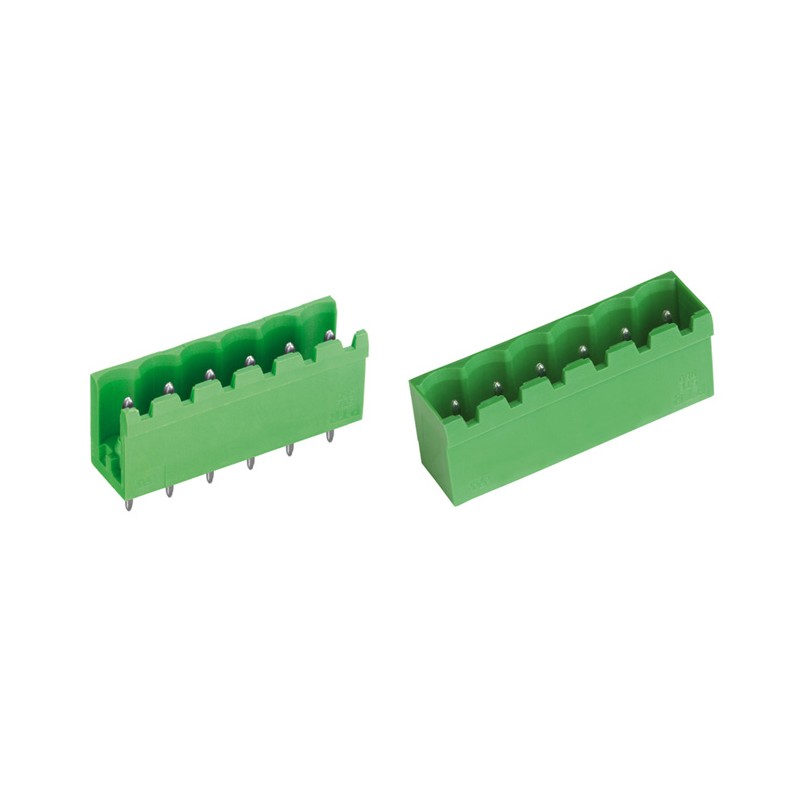

PTR Hartmann box header series STLZ950

These box headers in a vertical plug direction have a pitch of 5,08mm, and a nominal current of 12A. These devices are available in the following types: STLZ950_V-BK-HT: open sides, suitable for reflow, black; STLZ950_V-BK-HT-G: open sides, strapped, suitable for reflow, black; STLZ950_G-V-BK-HT: closed sides, suitable for reflow, black; STLZ950_G-V-BK-HT-G: closed sides, strapped, suitable for reflow, black; STLZ950_F-V-BK-HT: with flange, threaded brass insert, suitable for reflow, black; STLZ950_F-V-BK-HT-G: with flange, threaded brass insert, strapped, suitable for reflow, black; STLZ950WV_: closed sides, not suitable for reflow, green; STLZ951-V_: open sides, not suitable for reflow, green. We offer various tpes of this PTR Hartmann series.

  • nominal voltage: 250V AC
  • nominal current: 12A
  • over voltage category: III
  • test voltage: 4kV
  • pollution level: 3
  • isolation body: PA 6.6 (STLZ950WV_, STLZ951-V_), PPA (STLZ950_)
  • operating temperature: -40 to 105°C
  • inflammability class: UL94V-0
  • colour: green (STLZ950WV_, STLZ951-V_), black (STLZ950_)

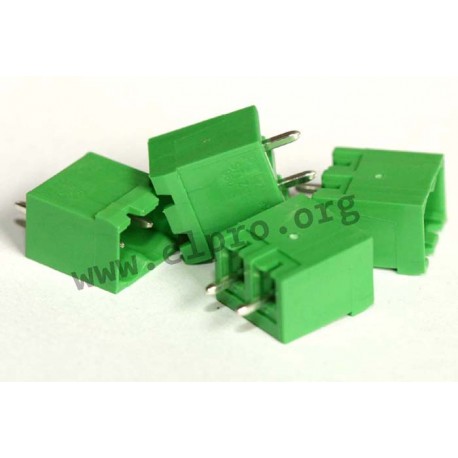

STLZ950/6G-5,08V/GRÜ, PTR Hartmann box headers, pitch 5,08mm, 12A, STLZ950 series

STLZ 950/03 G-5,08-V

13939 STLZ 950/03 G-5,08-V STLZ950/6G-5,08V/GRÜ STLZ950/6G-5,08V/GRÜ PTR Hartmann box header series STLZ950. These box headers in a vertical plug direction have a pitch of 5,08mm, and a nominal current of 12A. These devices are available in the following types: STLZ950_V-BK-HT: open sides, suitable for reflow, black; STLZ950_V-BK-HT-G: open sides, strapped, suitable for reflow, black; STLZ950_G-V-BK-HT: closed sides, suitable for reflow, black; STLZ950_G-V-BK-HT-G: closed sides, strapped, suitable for reflow, black; STLZ950_F-V-BK-HT: with flange, threaded brass insert, suitable for reflow, black; STLZ950_F-V-BK-HT-G: with flange, threaded brass insert, strapped, suitable for reflow, black; STLZ950WV_: closed sides, not suitable for reflow, green; STLZ951-V_: open sides, not suitable for reflow, green. We offer various tpes of this PTR Hartmann series. nominal voltage: 250V AC nominal current: 12A over voltage category: III test voltage: 4kV pollution level: 3 isolation body: PA 6.6 (STLZ950WV_, STLZ951-V_), PPA (STLZ950_) operating temperature: -40 to 105°C inflammability class: UL94V-0 colour: green (STLZ950WV_, STLZ951-V_), black (STLZ950_)

Specifications

manufacturer
Manufacturer's name STLZ950/6G-5...
Design straight
Number of poles 3
Height [mm] 12
T [mm] 8,4
Length [mm] 16,44
Data Sheet

Unit price

0,276 €

Stock: 6357
Next incoming goods:
CW 51/2024
1400 units

Further delivery:
CW 01/2025

Minimum order quantity 1 to 7 units or multiples of 10 plus 0 to 7 .
