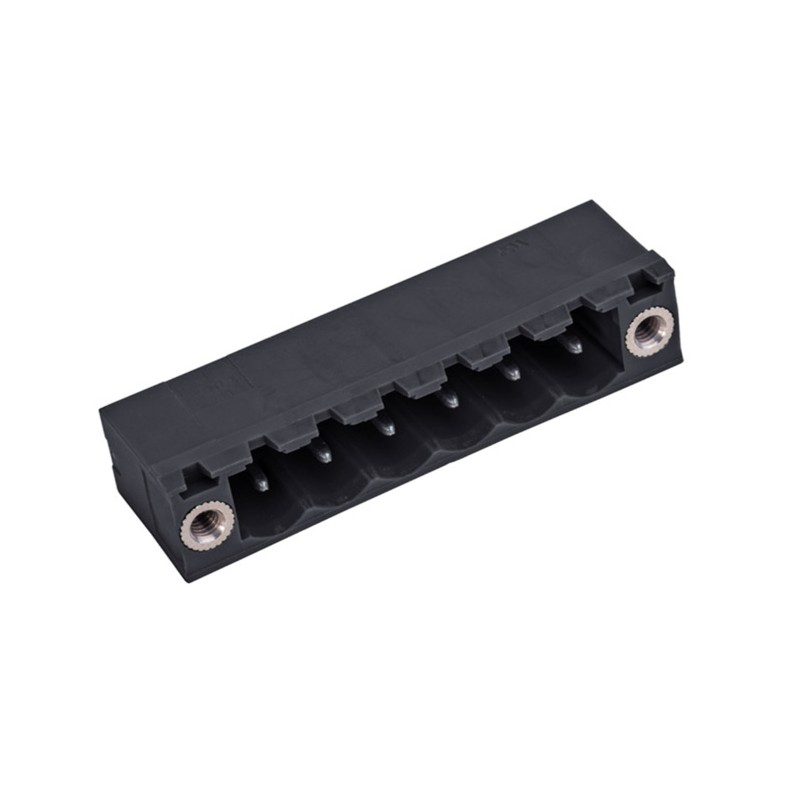

STL950/5F-5.0-H-P2.6-BK-HC-HTR

PTR Hartmann box headers series STL950

These box headers in horizontal plug direction have a pitch of 5mm, and a nominal current of 12A, respectively 16A. We offer various types of this PTR Hartmann series.

Nominal current 12A:

  • STL950_H-BK-HT: open sides, suitable for reflow, black
  • STL950_H-BK-HT-G: open sides, strapped, suitable for reflow, black
  • STL950_G-H-BK-HT: closed sides, suitable for reflow, black
  • STL950_G-H-BK-HTG: closed sides, strapped, suitable for reflow, black
  • STL950_F-H-BK-HT: with flange, threaded brass insert, suitable for reflow, black
  • STL950_F-H-BK-HT: with flange, threaded brass insert, strapped, suitable for reflow, black
  • STL950WH_: closed sides, not suitable for reflow, green

Nominal current 16A:

  • STL950_H-BK-HCHT: open sides, suitable for reflow, black
  • STL950_H-BKHCHTG: open sides, strapped, suitable for reflow, black
  • STL950_G-H-BKHCHT: closed sides, suitable for reflow, black
  • STL950_G-HBKHCHTG: closed sides, strapped, suitable for reflow, black
  • STL950_F-H-BKHCHT: with flange, threaded brass insert, suitable for reflow, black
  • STL950_F-HBKHCHTG: with flange, threaded brass insert, strapped, suitable for reflow, black
  • nominal voltage: 250V AC
  • nominal current: 12A or 16A
  • over voltage category: III
  • test voltage: 4kV
  • pollution level: 3
  • isolation body: PA 6.6 (STL950WH_), PPA (STL950_)
  • operating temperature: -40 to 105°C
  • inflammation class: UL94V-0
  • colour: green (STL950WH_), black (STL950_)

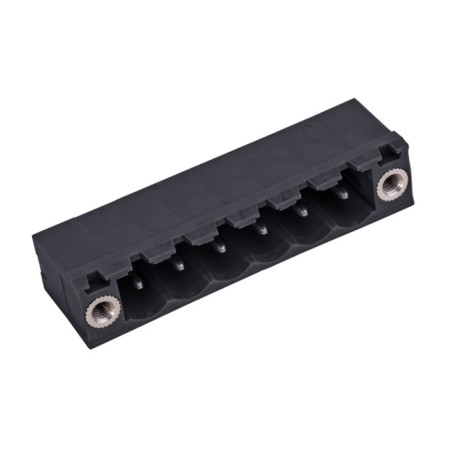

STL950/5F-5.0-H-P2.6-BK-HC-HTR, PTR Hartmann box headers, pitch 5mm, horizontal, 12A or 16A, STL950 series

STL950/5F-5.0-H-P2.6-BK-HC-HTR

248507 STL950/5F-5.0-H-P2.6-BK-HC-HTR STL950/5F-5.0-H-P2.6-BK-HC-HTR PTR Hartmann box headers series STL950. These box headers in horizontal plug direction have a pitch of 5mm, and a nominal current of 12A, respectively 16A. We offer various types of this PTR Hartmann series. Nominal current 12A: STL950_H-BK-HT: open sides, suitable for reflow, black STL950_H-BK-HT-G: open sides, strapped, suitable for reflow, black STL950_G-H-BK-HT: closed sides, suitable for reflow, black STL950_G-H-BK-HTG: closed sides, strapped, suitable for reflow, black STL950_F-H-BK-HT: with flange, threaded brass insert, suitable for reflow, black STL950_F-H-BK-HT: with flange, threaded brass insert, strapped, suitable for reflow, black STL950WH_: closed sides, not suitable for reflow, green Nominal current 16A: STL950_H-BK-HCHT: open sides, suitable for reflow, black STL950_H-BKHCHTG: open sides, strapped, suitable for reflow, black STL950_G-H-BKHCHT: closed sides, suitable for reflow, black STL950_G-HBKHCHTG: closed sides, strapped, suitable for reflow, black STL950_F-H-BKHCHT: with flange, threaded brass insert, suitable for reflow, black STL950_F-HBKHCHTG: with flange, threaded brass insert, strapped, suitable for reflow, black nominal voltage: 250V AC nominal current: 12A or 16A over voltage category: III test voltage: 4kV pollution level: 3 isolation body: PA 6.6 (STL950WH_), PPA (STL950_) operating temperature: -40 to 105°C inflammation class: UL94V-0 colour: green (STL950WH_), black (STL950_)

Specifications

manufacturer
Manufacturer's name STL950/5F-5....

Unit price

0,873 €

Stock: 0
Further delivery:
CW 01/2025

Minimum order quantity 330 units or
multiples of 330.
