STL950/2G-5.0-V-P2.6-BK-HT

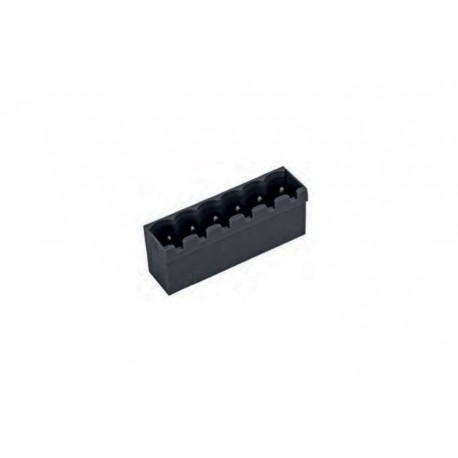

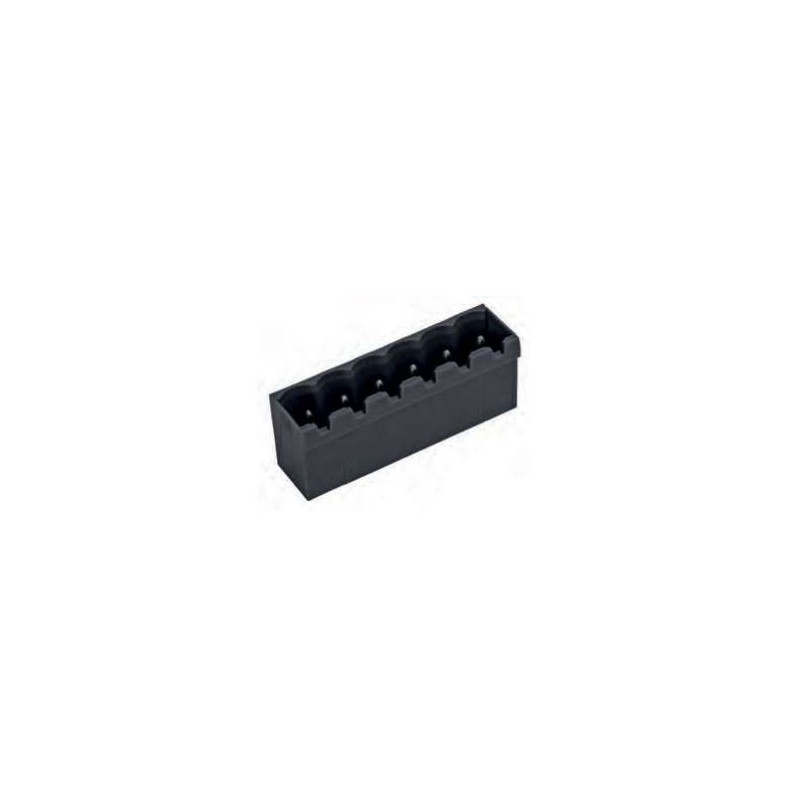

PTR Hartmann box headers series STL950

These box headers in vertical plug direction have a pitch of 5mm, and a nominal current of 12A, respectively 16A. We offer various types of this PTR Hartmann series.

Nominal current 12A:

  • STL950_V-BK-HT: open sides, suitable for reflow, black
  • STL950_V-BK-HT-G: open sides, strapped, suitable for reflow, black
  • STL950_G-V-BK-HT: closed sides, suitable for reflow, black
  • STL950_G-V-BK-HTG: closed sides, strapped, suitable for reflow, black
  • STL950_F-V-BK-HT: with flange, threaded brass insert, suitable for reflow, black
  • STL950WV_: closed sides, not suitable for reflow, green

Nominal current 16A:

  • STL950_V-BK-HCHT: open sides, suitable for reflow, black
  • STL950_V-BKHCHTG: open sides, strapped, suitable for reflow, black
  • STL950_G-V-BKHCHT: closed sides, suitable for reflow, black
  • STL950_G-VBKHCHTG: closed sides, strapped, suitable for reflow, black
  • STL950_F-V-BKHCHT: with flange, threaded brass insert, suitable for reflow, black
  • STL950_F-VBKHCHTG: with flange, threaded brass insert, strapped, suitable for reflow, black
  • nominal voltage: 250V AC
  • nominal current: 12A or 16A
  • over voltage category: III
  • test voltage: 4kV
  • pollution level: 3
  • isolation body: PA 6.6 (STL950WV_), PPA (STL950_)
  • operating temperature: -40 to 105°C
  • inflammation class: UL94V-0
  • colour: green (STL950WV_), black (STL950_)
STL950/2G-5.0-V-P2.6-BK-HT, PTR box headers, pitch 5mm, 12A, STL950 series

STL950/2G-5.0-V-P2.6-BK-HT

239414 STL950/2G-5.0-V-P2.6-BK-HT STL950/2G-5.0-V-P2.6-BK-HT PTR Hartmann box headers series STL950. These box headers in vertical plug direction have a pitch of 5mm, and a nominal current of 12A, respectively 16A. We offer various types of this PTR Hartmann series. Nominal current 12A: STL950_V-BK-HT: open sides, suitable for reflow, black STL950_V-BK-HT-G: open sides, strapped, suitable for reflow, black STL950_G-V-BK-HT: closed sides, suitable for reflow, black STL950_G-V-BK-HTG: closed sides, strapped, suitable for reflow, black STL950_F-V-BK-HT: with flange, threaded brass insert, suitable for reflow, black STL950WV_: closed sides, not suitable for reflow, green Nominal current 16A: STL950_V-BK-HCHT: open sides, suitable for reflow, black STL950_V-BKHCHTG: open sides, strapped, suitable for reflow, black STL950_G-V-BKHCHT: closed sides, suitable for reflow, black STL950_G-VBKHCHTG: closed sides, strapped, suitable for reflow, black STL950_F-V-BKHCHT: with flange, threaded brass insert, suitable for reflow, black STL950_F-VBKHCHTG: with flange, threaded brass insert, strapped, suitable for reflow, black nominal voltage: 250V AC nominal current: 12A or 16A over voltage category: III test voltage: 4kV pollution level: 3 isolation body: PA 6.6 (STL950WV_), PPA (STL950_) operating temperature: -40 to 105°C inflammation class: UL94V-0 colour: green (STL950WV_), black (STL950_)

Specifications

manufacturer
Manufacturer's name STL950/2G-5....
Colour black
Number of poles 2

Unit price

0,188 €

Stock: 200
Further delivery:
CW 05/2025

Minimum order quantity 10 units or
multiples of 10.
