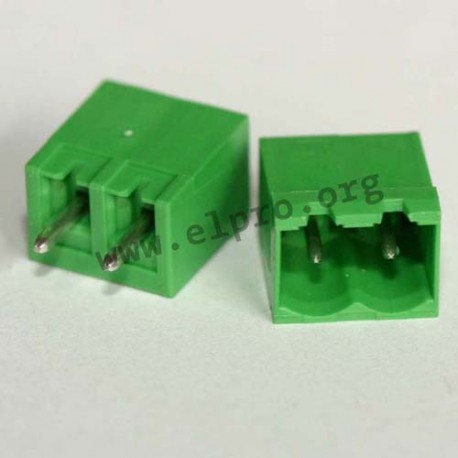

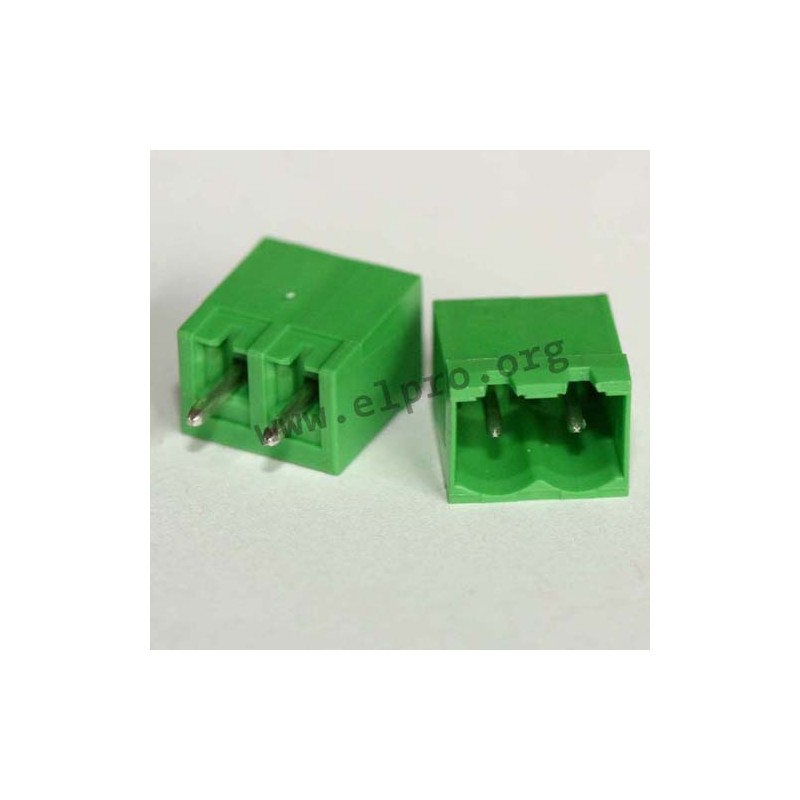

STL 950/03 G-5,0-V

PTR Hartmann box headers series STL950

These box headers in vertical plug direction have a pitch of 5mm, and a nominal current of 12A, respectively 16A. We offer various types of this PTR Hartmann series.

Nominal current 12A:

  • STL950_V-BK-HT: open sides, suitable for reflow, black
  • STL950_V-BK-HT-G: open sides, strapped, suitable for reflow, black
  • STL950_G-V-BK-HT: closed sides, suitable for reflow, black
  • STL950_G-V-BK-HTG: closed sides, strapped, suitable for reflow, black
  • STL950_F-V-BK-HT: with flange, threaded brass insert, suitable for reflow, black
  • STL950WV_: closed sides, not suitable for reflow, green

Nominal current 16A:

  • STL950_V-BK-HCHT: open sides, suitable for reflow, black
  • STL950_V-BKHCHTG: open sides, strapped, suitable for reflow, black
  • STL950_G-V-BKHCHT: closed sides, suitable for reflow, black
  • STL950_G-VBKHCHTG: closed sides, strapped, suitable for reflow, black
  • STL950_F-V-BKHCHT: with flange, threaded brass insert, suitable for reflow, black
  • STL950_F-VBKHCHTG: with flange, threaded brass insert, strapped, suitable for reflow, black
  • nominal voltage: 250V AC
  • nominal current: 12A or 16A
  • over voltage category: III
  • test voltage: 4kV
  • pollution level: 3
  • isolation body: PA 6.6 (STL950WV_), PPA (STL950_)
  • operating temperature: -40 to 105°C
  • inflammation class: UL94V-0
  • colour: green (STL950WV_), black (STL950_)
series STL 950_V by PTR

STL 950/03 G-5,0-V

13927 STL 950/03 G-5,0-V STL950/3G-5,0-V/GRUE STL950/3G-5,0-V/GRUE PTR Hartmann box headers series STL950. These box headers in vertical plug direction have a pitch of 5mm, and a nominal current of 12A, respectively 16A. We offer various types of this PTR Hartmann series. Nominal current 12A: STL950_V-BK-HT: open sides, suitable for reflow, black STL950_V-BK-HT-G: open sides, strapped, suitable for reflow, black STL950_G-V-BK-HT: closed sides, suitable for reflow, black STL950_G-V-BK-HTG: closed sides, strapped, suitable for reflow, black STL950_F-V-BK-HT: with flange, threaded brass insert, suitable for reflow, black STL950WV_: closed sides, not suitable for reflow, green Nominal current 16A: STL950_V-BK-HCHT: open sides, suitable for reflow, black STL950_V-BKHCHTG: open sides, strapped, suitable for reflow, black STL950_G-V-BKHCHT: closed sides, suitable for reflow, black STL950_G-VBKHCHTG: closed sides, strapped, suitable for reflow, black STL950_F-V-BKHCHT: with flange, threaded brass insert, suitable for reflow, black STL950_F-VBKHCHTG: with flange, threaded brass insert, strapped, suitable for reflow, black nominal voltage: 250V AC nominal current: 12A or 16A over voltage category: III test voltage: 4kV pollution level: 3 isolation body: PA 6.6 (STL950WV_), PPA (STL950_) operating temperature: -40 to 105°C inflammation class: UL94V-0 colour: green (STL950WV_), black (STL950_)

Specifications

manufacturer
Manufacturer's name STL950/3G-5,...
Design straight
Colour green
Number of poles 3

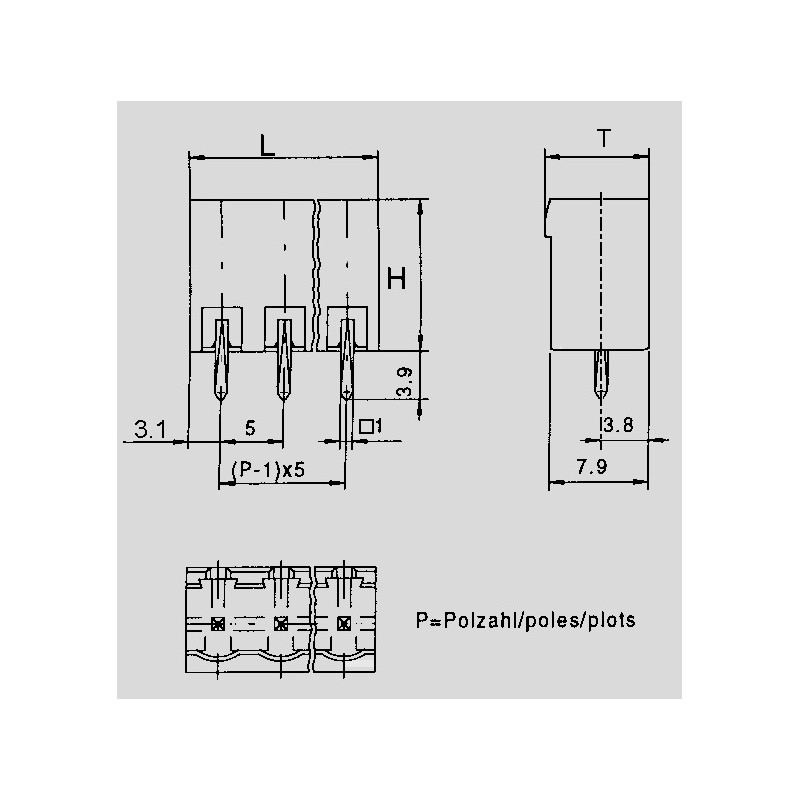

Height [mm] 12
T [mm] 8,4
Length [mm] 16,2

Unit price

0,276 €

Stock: 360
Next incoming goods:
CW 51/2024
800 units

Further delivery:
CW 01/2025

Minimum order quantity 10 units or
multiples of 10.
