AKZ350/10-5.08-V-P3.5-BK-HT

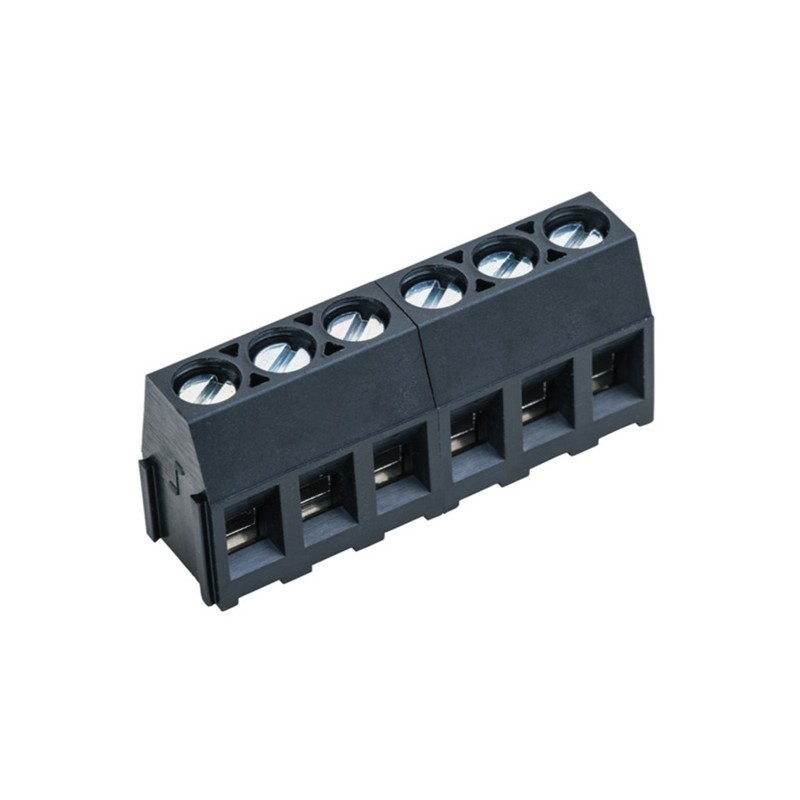

PTR Hartmann terminal block series AKZ350

These black terminal blocks in a lift principle are suitable for reflow and have a pitch of 5,08mm. They have a horizontal cable entry, a vertical screw direction, and a nominal current of 17,5A. These devices are available in as a single terminal block (AKZ350_V-BK-HT), as well as a single terminal block with a blister strap on wheels (AKZ350_V-BK-HT-G). We offer various types of this PTR Hartmann series.

  • nominal voltage: 250V AC
  • nominal current: 17,5A
  • over voltage category: III
  • test voltage: 2kV
  • pollution level: 3
  • nominal cross-section: 0,5 to 2,5mm^2 (single stranded), 0,5 to 1,5mm^2 (fine stranded)
  • isolation length: 6mm
  • isolation body: PPA
  • operating temperature: -40 to +105°C
  • inflammability class: UL94V-0
  • colour: black
AKZ350/10-5.08-V-P3.5-BK-HT, PTR Hartmann terminal blocks, pitch 5,08mm, 17,5A, screw-cage clamp principle, AKZ350 series

AKZ350/10-5.08-V-P3.5-BK-HT

248224 AKZ350/10-5.08-V-P3.5-BK-HT AKZ350/10-5.08-V-P3.5-BK-HT PTR Hartmann terminal block series AKZ350. These black terminal blocks in a lift principle are suitable for reflow and have a pitch of 5,08mm. They have a horizontal cable entry, a vertical screw direction, and a nominal current of 17,5A. These devices are available in as a single terminal block (AKZ350_V-BK-HT), as well as a single terminal block with a blister strap on wheels (AKZ350_V-BK-HT-G). We offer various types of this PTR Hartmann series. nominal voltage: 250V AC nominal current: 17,5A over voltage category: III test voltage: 2kV pollution level: 3 nominal cross-section: 0,5 to 2,5mm^2 (single stranded), 0,5 to 1,5mm^2 (fine stranded) isolation length: 6mm isolation body: PPA operating temperature: -40 to +105°C inflammability class: UL94V-0 colour: black

Specifications

manufacturer
Manufacturer's name AKZ350/10-5....
Data Sheet

Unit price

1,36 €

Stock: 0
Further delivery:
CW 05/2025

Minimum order quantity 50 units or
multiples of 50.
