AK4601/9KD-3.5-V-BK-SMD

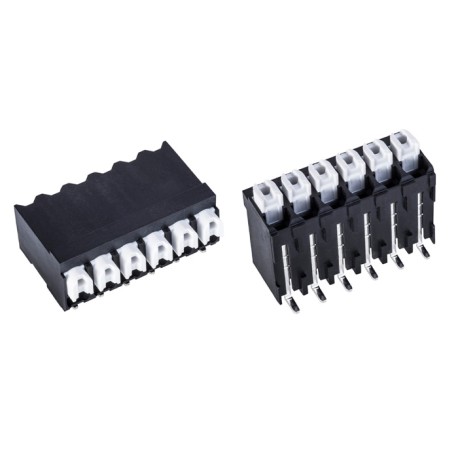

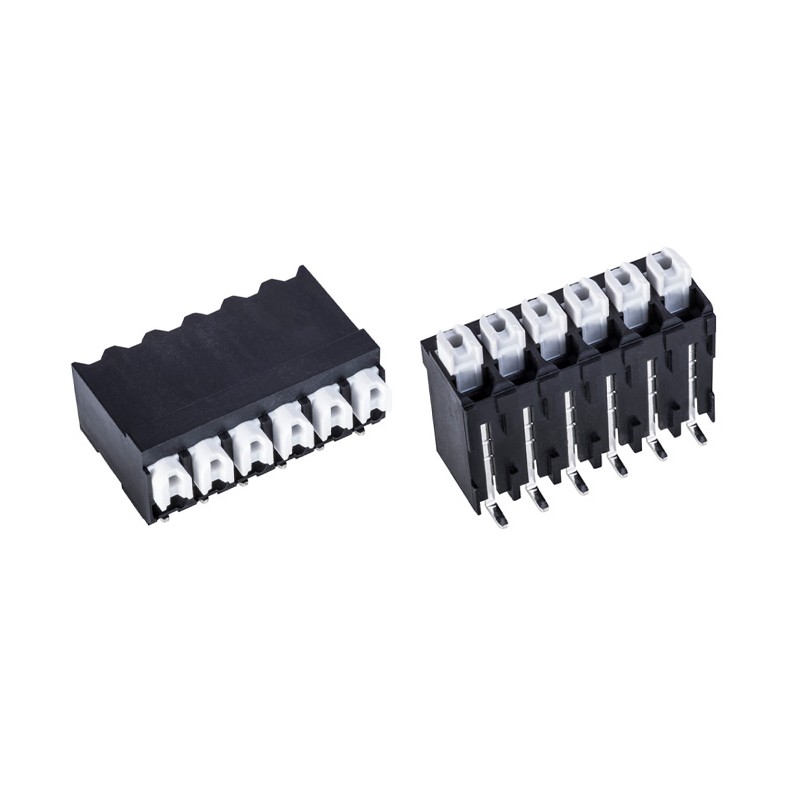

PTR Hartmann SMD spring terminal blocks series AK4601

These SMD spring terminal blocks with a confirmation push button have a horizontal or vertical wire entry and a horizontal or vertical screw direction. They have a pitch of 3,5mm and are reflow proof. These terminal blocks are available as a horizontal terminal block with blister strap on wheels (AK4601_V-BK-SMD), as well as a vertical terminal block with blister strap on wheels (AK4601_H-BK-SMD). We offer various types of this PTR Hartmann series.

  • nominal voltage: 250V AC
  • nominal current: 8A
  • over voltage category: III
  • test voltage: 4kV
  • pollution level: 3
  • nominal cross-section: 0,2 to 1,5mm^2 (single and fine stranded)
  • isolation length: 10mm
  • isolation body: PA
  • operating temperature: -40 to +105°C
  • inflammability class: UL94V-0
  • colour: black
AK4601/9KD-3.5-V-BK-SMD, PTR Hartmann SMD spring terminal blocks with a confirmation push button, 3,5mm, horizontal or vertical,

AK4601/9KD-3.5-V-BK-SMD

248212 AK4601/9KD-3.5-V-BK-SMD AK4601/9KD-3.5-V-BK-SMD PTR Hartmann SMD spring terminal blocks series AK4601. These SMD spring terminal blocks with a confirmation push button have a horizontal or vertical wire entry and a horizontal or vertical screw direction. They have a pitch of 3,5mm and are reflow proof. These terminal blocks are available as a horizontal terminal block with blister strap on wheels (AK4601_V-BK-SMD), as well as a vertical terminal block with blister strap on wheels (AK4601_H-BK-SMD). We offer various types of this PTR Hartmann series. nominal voltage: 250V AC nominal current: 8A over voltage category: III test voltage: 4kV pollution level: 3 nominal cross-section: 0,2 to 1,5mm^2 (single and fine stranded) isolation length: 10mm isolation body: PA operating temperature: -40 to +105°C inflammability class: UL94V-0 colour: black

Specifications

manufacturer
Manufacturer's name AK4601/9KD-3...
Data Sheet

Unit price

1,83 €

Stock: 0
Further delivery:
CW 06/2025

Minimum order quantity 150 units or
multiples of 150.
