AK4601/5KD-3.5-V-P3.3-BK-HTR

PTR Hartmann spring terminal blocks series AK4601

These spring terminal blocks with a confirmation push button have a vertical wire entry and a vertical screw direction. They have a pitch of 3,5mm and are reflow proof. These terminal blocks are available as a single terminal block (AK4601_VBKHT), a single terminal block with blister strap on wheels (AK4601_VBKHT-G), with shifted pins (AK4601_VP-VBKHT), and with shifted pins and blister strap on wheels (AK4601_VP-VBKHT-G). We offer various types of this PTR Hartmann series.

  • nominal voltage: 250V AC
  • nominal current: 8A
  • over voltage category: III
  • test voltage: 4kV
  • pollution level: 3
  • nominal cross-section: 0,2 to 1,5mm^2 (single and fine stranded)
  • isolation length: 10mm
  • isolation body: PA
  • operating temperature: -40 to +105°C
  • inflammability class: UL94V-0
  • colour: black

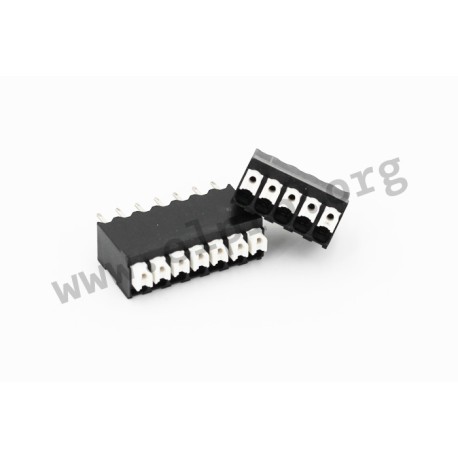

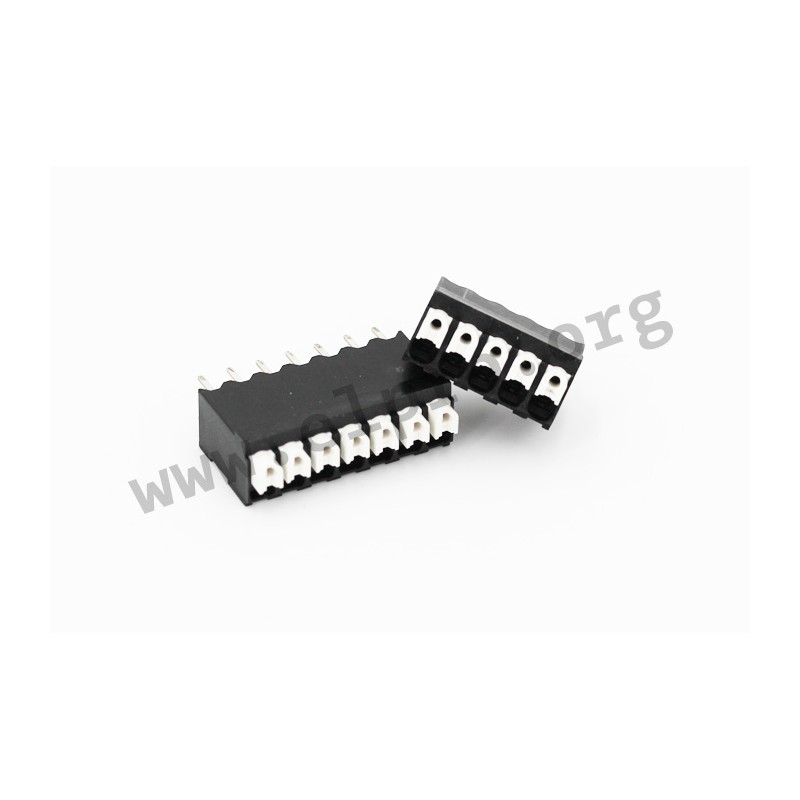

AK4601/5KD-3.5-V-P3.3-BK-HTR, PTR Hartmann spring terminal blocks with a confirmation push button, 3,5mm, vertical, AK4601 serie

AK4601/5KD-3.5-V-P3.3-BK-HTR

248118 AK4601/5KD-3.5-V-P3.3-BK-HTR AK4601/5KD-3.5-V-P3.3-BK-HTR PTR Hartmann spring terminal blocks series AK4601. These spring terminal blocks with a confirmation push button have a vertical wire entry and a vertical screw direction. They have a pitch of 3,5mm and are reflow proof. These terminal blocks are available as a single terminal block (AK4601_VBKHT), a single terminal block with blister strap on wheels (AK4601_VBKHT-G), with shifted pins (AK4601_VP-VBKHT), and with shifted pins and blister strap on wheels (AK4601_VP-VBKHT-G). We offer various types of this PTR Hartmann series. nominal voltage: 250V AC nominal current: 8A over voltage category: III test voltage: 4kV pollution level: 3 nominal cross-section: 0,2 to 1,5mm^2 (single and fine stranded) isolation length: 10mm isolation body: PA operating temperature: -40 to +105°C inflammability class: UL94V-0 colour: black

Specifications

manufacturer
Manufacturer's name AK4601/5KD-3...
Data Sheet

Unit price

0,797 €

Stock: 0
Further delivery:
CW 06/2025

Minimum order quantity 200 units or
multiples of 200.
