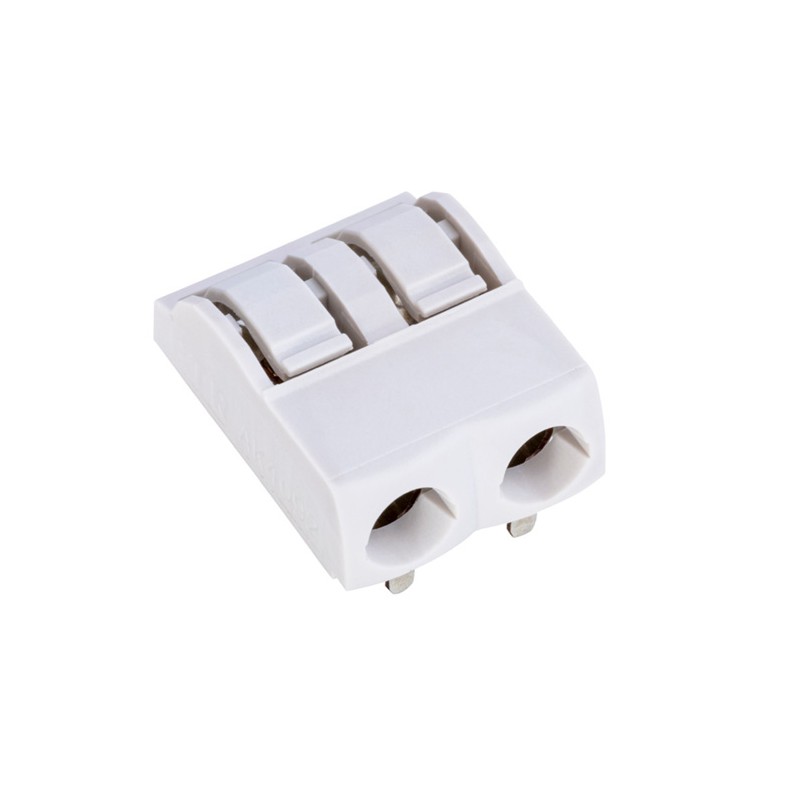

AK4092/3KD-6.0-P2.4-WH-HT

PTR Hartmann push-in spring terminal blocks series AK4092

These spring terminal blocks with a push in mechanism are suitable for horizontal wire entry and a pitch of 6mm. Stiff wires can be applied directly without tools or confirmation of a push button, and for flexible wires as well as for removing wires the spring must be opend with a screwdriver. These devices are available in a single terminal block type (AK4092_WH-HT), and in a single terminal block type with blister strap on wheels (AK4092_WH-HT-G). We offer various types of this PTR Hartmann series.

  • nominal voltage: 320V AC
  • nominal current: 17,5A
  • over voltage category: III
  • test voltage: 4kV
  • pollution level: 3
  • nominal cross-section: 0,5 to 1,5mm^2 (single or fine stranded)
  • isolation length: 7mm
  • isolation body: PA
  • operating temperature: -60 to +105°C
  • inflammability class: UL94V-0
  • colour: white

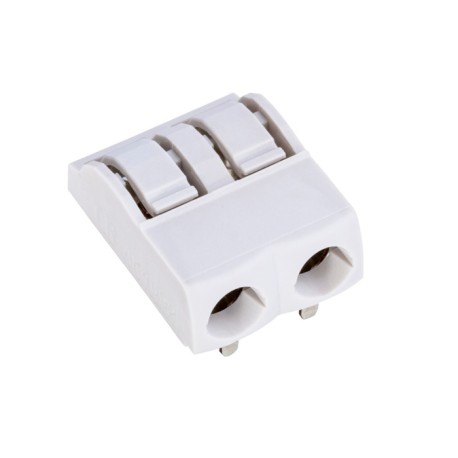

AK4092/3KD-6.0-P2.4-WH-HT, PTR Hartmann push-in spring terminal blocks, 6mm, horizontal, AK4092 series

AK4092/3KD-6.0-P2.4-WH-HT

248101 AK4092/3KD-6.0-P2.4-WH-HT AK4092/3KD-6.0-P2.4-WH-HT PTR Hartmann push-in spring terminal blocks series AK4092. These spring terminal blocks with a push in mechanism are suitable for horizontal wire entry and a pitch of 6mm. Stiff wires can be applied directly without tools or confirmation of a push button, and for flexible wires as well as for removing wires the spring must be opend with a screwdriver. These devices are available in a single terminal block type (AK4092_WH-HT), and in a single terminal block type with blister strap on wheels (AK4092_WH-HT-G). We offer various types of this PTR Hartmann series. nominal voltage: 320V AC nominal current: 17,5A over voltage category: III test voltage: 4kV pollution level: 3 nominal cross-section: 0,5 to 1,5mm^2 (single or fine stranded) isolation length: 7mm isolation body: PA operating temperature: -60 to +105°C inflammability class: UL94V-0 colour: white

Specifications

manufacturer
Manufacturer's name AK4092/3KD-6...
Data Sheet

Unit price

0,862 €

Stock: 0
Further delivery:
CW 06/2025

Minimum order quantity 100 units or
multiples of 100.
