AKZ 950/08-5,08

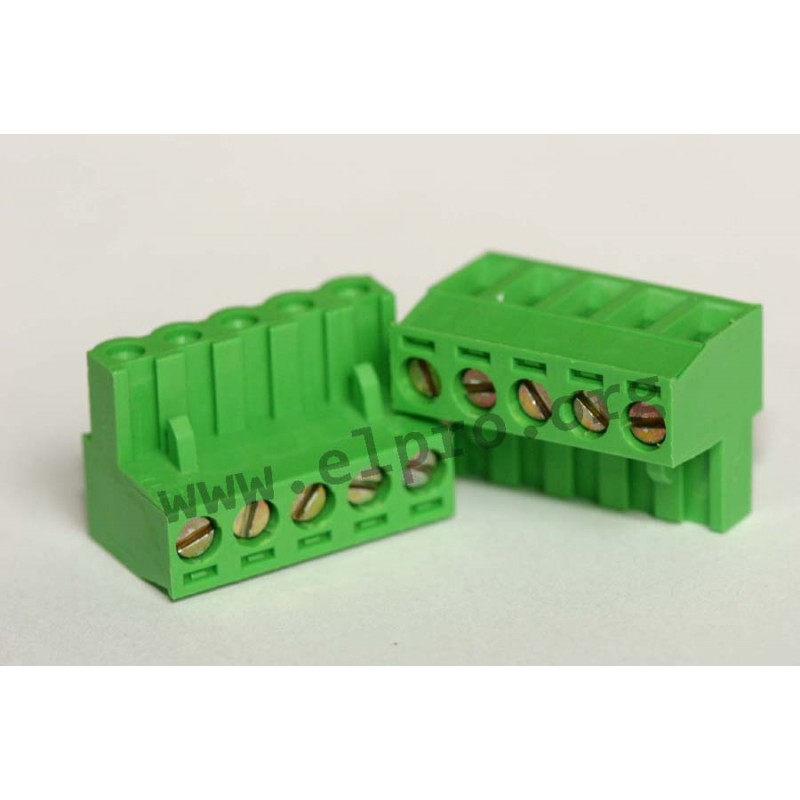

PTR multiconnector series AKZ950

  • screw-cage clamp principle
  • conductor: vertical
  • pitch: 5.08mm
  • 2-, 3-, 4-, 5-, 6-, 8- or 10-pole
  • rated voltage (EN 61984): 250V
  • rated current (T60): 12A
  • measured impulse voltage: 4kV
  • rated cross section single-stranded wire: 4.0mm²
  • rated cross section fine-stranded wire: 2.5mm²
  • stripped length: 6mm
  • insulating material: PA
  • temperature range: -30 to +105°C
  • flammability class: UL94V-0
  • colour: green

Matching box headers straight

Matching box headers angled

PTR multiconnectors

AKZ 950/08-5,08

112475 AKZ 950/08-5,08 AKZ950/8-5.08-GRÜN AKZ950/8-5.08-GRÜN PTR multiconnector series AKZ950. screw-cage clamp principle conductor: vertical pitch: 5.08mm 2-, 3-, 4-, 5-, 6-, 8- or 10-pole rated voltage (EN 61984): 250V rated current (T60): 12A measured impulse voltage: 4kV rated cross section single-stranded wire: 4.0mm² rated cross section fine-stranded wire: 2.5mm² stripped length: 6mm insulating material: PA temperature range: -30 to +105°C flammability class: UL94V-0 colour: green Matching box headers straight Matching box headers angled

Specifications

manufacturer
Manufacturer's name AKZ950/8-5.08-GRÜN
Design screw-cage...
Number of poles 8
Height [mm] 15
Pitch [mm] 5,08
T [mm] 17,3
Length [mm] 40,46
Data Sheet

Unit price

2,19 €

Stock: 150
Next incoming goods:
CW 03/2025
400 units

Further delivery:
CW 05/2025

Minimum order quantity 10 units or
multiples of 10.
