AKZ 700/05-5.08

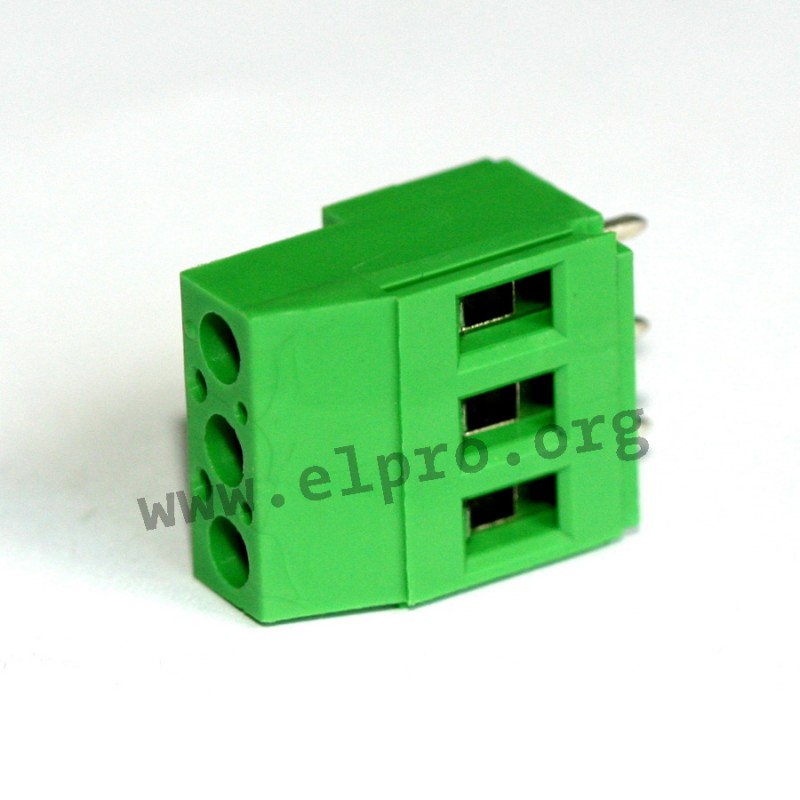

PTR terminal block series AKZ700

  • terminal blocks with a side wire entry in green
  • 2-, 3-, 4, 5-, 6- or 8-pole
  • screw-cage clamp principle
  • suitable for a conductor cross-section of up to 4mm² (single stranded wire) resp. 2,5mm² (fine stranded wire)
  • insulator is made of PA (UL94V-0)
  • rated voltage: 250V
  • rated current: 24A
  • pitch: 5,08mm
PTR terminal block

AKZ 700/05-5.08

112423 AKZ 700/05-5.08 AKZ700/5-5.08-V-GRÜN AKZ700/5-5.08-V-GRÜN PTR terminal block series AKZ700. terminal blocks with a side wire entry in green 2-, 3-, 4, 5-, 6- or 8-pole screw-cage clamp principle suitable for a conductor cross-section of up to 4mm² (single stranded wire) resp. 2,5mm² (fine stranded wire) insulator is made of PA (UL94V-0) rated voltage: 250V rated current: 24A pitch: 5,08mm

Specifications

manufacturer
Manufacturer's name AKZ700/5-5.0...
Design screw-cage...
Number of poles 5
Height [mm] 19
Pitch [mm] 5,08
T [mm] 10,5
Length [mm] 26
Data Sheet

Unit price

0,762 €

Stock: 150
Further delivery:
CW 01/2025

Minimum order quantity 50 units or
multiples of 50.
