> Passive elements>Terminals>Terminal blocks>PTR terminal blocks, pitch 5.08mm, 24A, screw-cage clamp principle, AKZ700 series>AKZ 700/04-5.08

Manufacturers

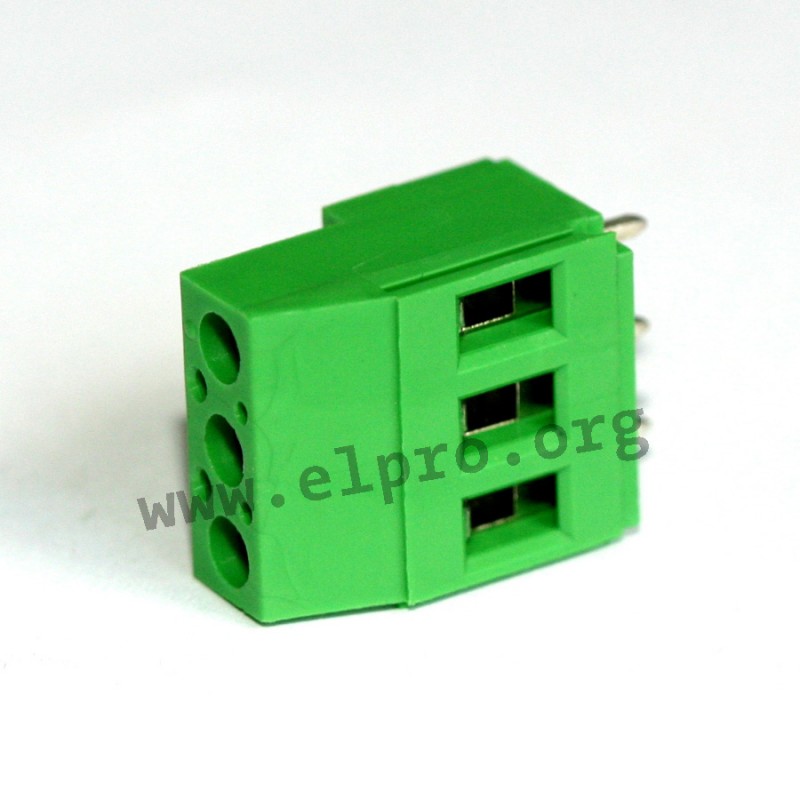

AKZ 700/04-5.08

PTR terminal block series AKZ700

  • terminal blocks with a side wire entry in green
  • 2-, 3-, 4, 5-, 6- or 8-pole
  • screw-cage clamp principle
  • suitable for a conductor cross-section of up to 4mm² (single stranded wire) resp. 2,5mm² (fine stranded wire)
  • insulator is made of PA (UL94V-0)
  • rated voltage: 250V
  • rated current: 24A
  • pitch: 5,08mm
PTR terminal block

AKZ 700/04-5.08

112421 AKZ 700/04-5.08 AKZ700/4-5.08-V-GRÜN AKZ700/4-5.08-V-GRÜN PTR terminal block series AKZ700. terminal blocks with a side wire entry in green 2-, 3-, 4, 5-, 6- or 8-pole screw-cage clamp principle suitable for a conductor cross-section of up to 4mm² (single stranded wire) resp. 2,5mm² (fine stranded wire) insulator is made of PA (UL94V-0) rated voltage: 250V rated current: 24A pitch: 5,08mm

Specifications

manufacturer
Manufacturer's name AKZ700/4-5.0...
Design screw-cage...
Number of poles 4
Height [mm] 19
Pitch [mm] 5,08
T [mm] 10,5
Length [mm] 20,92
Data Sheet

Unit price

0,634 €

Stock: 350
Next incoming goods:
CW 51/2024
400 units

Further delivery:
CW 01/2025

Minimum order quantity 50 units or
multiples of 50.
