AKZ 700/02-5.08-H

PTR terminal block series AKZ700

  • 2- to 6-pole terminal blocks with a 90° wire entry angle (top wire entry)
  • screw-cage clamp principle
  • insulator is made of PA (UL94V-0)
  • suitable for a conductor cross-section of up to 4mm² (single stranded wire) resp. 2,5mm² (fine stranded wire)
  • in green
  • rated voltage: 250V
  • rated current: 24A
  • pitch: 5,08mm

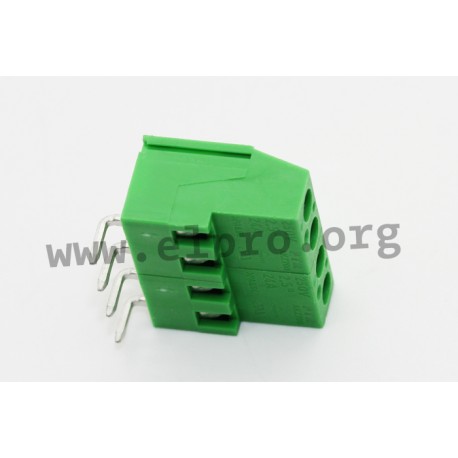

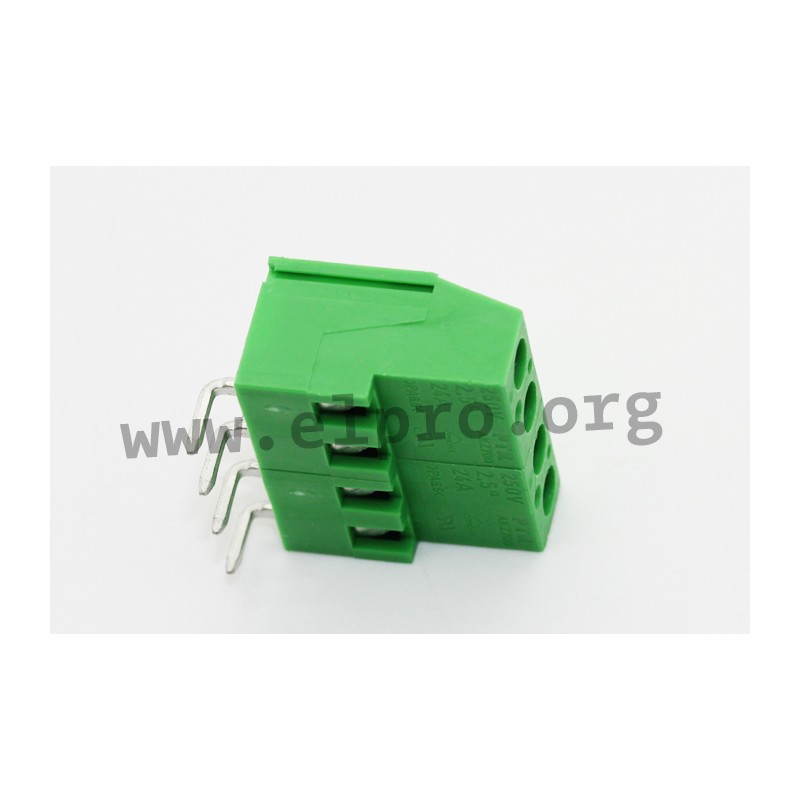

AKZ700/2-5.08-H-GRÜN, PTR terminal blocks, pitch 5,08mm, 24A, screw-cage clamp principle, 90°, AKZ700 series

AKZ 700/02-5.08-H

112418 AKZ 700/02-5.08-H AKZ700/2-5.08-H-GRÜN AKZ700/2-5.08-H-GRÜN PTR terminal block series AKZ700. 2- to 6-pole terminal blocks with a 90° wire entry angle (top wire entry) screw-cage clamp principle insulator is made of PA (UL94V-0) suitable for a conductor cross-section of up to 4mm² (single stranded wire) resp. 2,5mm² (fine stranded wire) in green rated voltage: 250V rated current: 24A pitch: 5,08mm

Specifications

manufacturer
Manufacturer's name AKZ700/2-5.0...
Design screw-cage...
Number of poles 2
Height [mm] 18
Pitch [mm] 5,08
T [mm] 10,5
Length [mm] 10,76
Data Sheet

Unit price

0,322 €

Stock: 150
Further delivery:
CW 01/2025

Minimum order quantity 50 units or
multiples of 50.
