AKZ 4951/4KD-5,08-grün

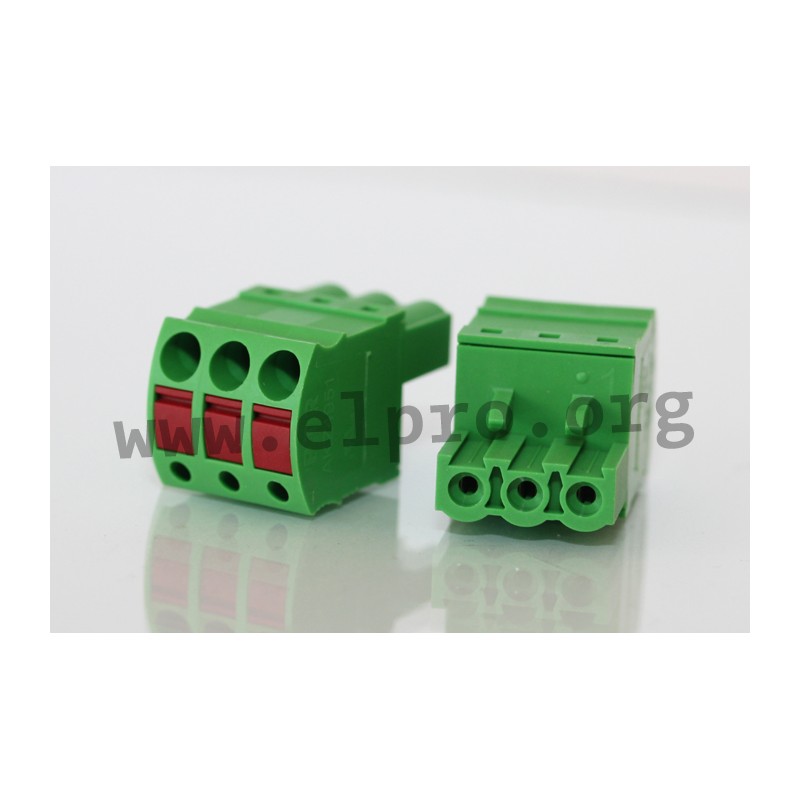

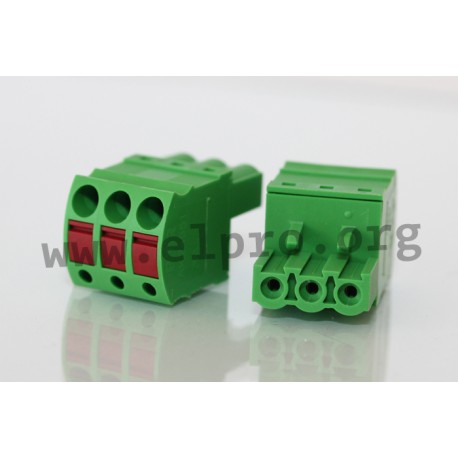

PTR terminal multiconnector series AKZ4951

  • terminal multiconnectors with a push-in principle in green
  • 2-, 3-, 4-, 5-, 6-, 8- and 10-poles
  • suitable for a wire cross section of 0,2 to 2,5mm²
  • insulator is made of PA6.6 (UL94V-0)
  • rated voltage: 250V
  • rated current: 12A
  • pitch: 5,08mm

Matching box headers

Matching box headers 90°

series AKZ 4951 by PTR

AKZ 4951/4KD-5,08-grün

39313 AKZ 4951/4KD-5,08-grün AK4551/10KD-3.5-GRÜN AK4551/10KD-3.5-GRÜN PTR terminal multiconnector series AKZ4951. terminal multiconnectors with a push-in principle in green  2-, 3-, 4-, 5-, 6-, 8- and 10-poles suitable for a wire cross section of 0,2 to 2,5mm² insulator is made of PA6.6 (UL94V-0) rated voltage: 250V rated current: 12A pitch: 5,08mm Matching box headers Matching box headers 90°

Specifications

manufacturer
Manufacturer's name AK4551/10KD-...
Design Push-in
Number of poles 4

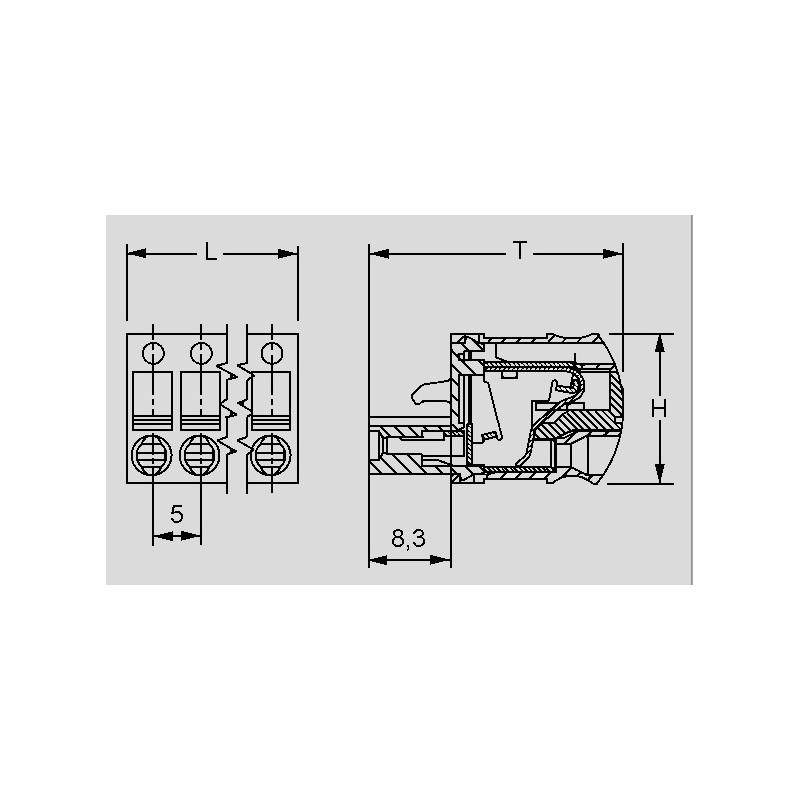

Height [mm] 15
T [mm] 25,6
Length [mm] 20,32
Data Sheet

Unit price

0,864 €

Stock: 381
Further delivery:
CW 01/2025

Minimum order quantity 1 unit or multiples of 10 plus 0 to 1 .
