AKZ 4791/02 KD-2.54-V

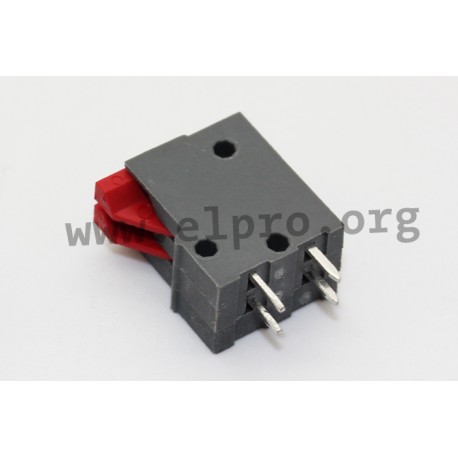

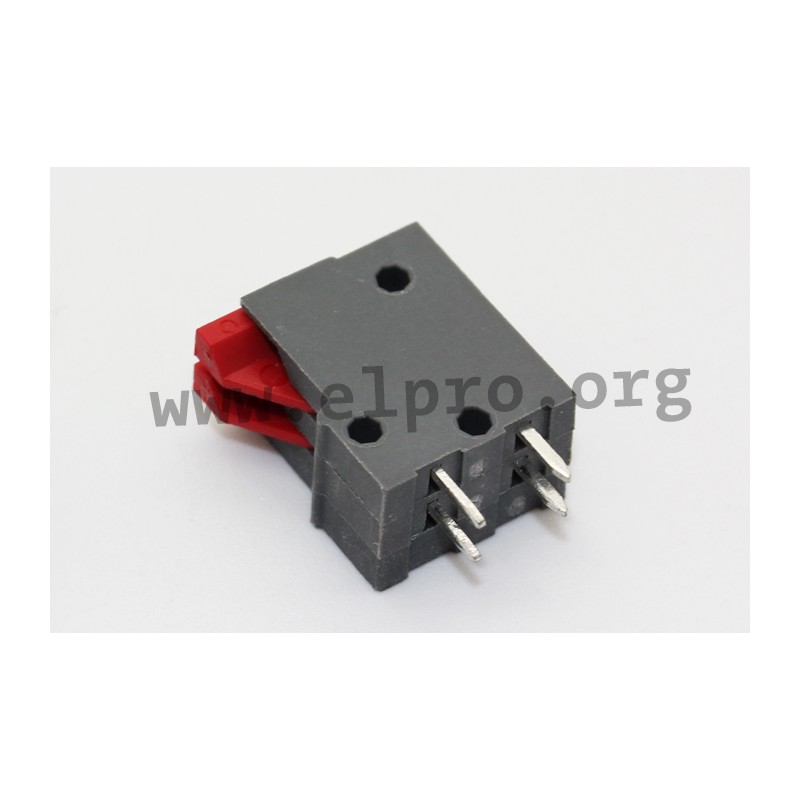

PTR spring terminal block series AKZ4791

  • 2- to 6-pole spring terminal blocks in grey
  • 90° wire entry angle
  • with lever
  • suitable for a conductor cross-section of up to 0,75mm²
  • insulator made of PA (UL94V-0)
  • rated voltage: 130V
  • rated current: 9A
  • pitch: 2,54mm
AKZ4791/2KD-2.54-V-BASALTGRAU, PTR spring terminal blocks, pitch 2,54mm, 9A, with lever, 90°, AKZ4791 series

AKZ 4791/02 KD-2.54-V

112390 AKZ 4791/02 KD-2.54-V AKZ4791/2KD-2.54-V-BASALTGRAU AKZ4791/2KD-2.54-V-BASALTGRAU PTR spring terminal block series AKZ4791. 2- to 6-pole spring terminal blocks in grey 90° wire entry angle with lever suitable for a conductor cross-section of up to 0,75mm² insulator made of PA (UL94V-0) rated voltage: 130V rated current: 9A pitch: 2,54mm

Specifications

manufacturer
Manufacturer's name AKZ4791/2KD-...
Design with lever
Depth [mm] 12,6
Number of poles 2
Height [mm] 13,6
Pitch [mm] 2,54
Length [mm] 7,62
Data Sheet

Unit price

0,325 €

Stock: 177
Further delivery:
CW 01/2025

Minimum order quantity 1 to 7 units or multiples of 10 plus 0 to 7 .
