AKZ 750/02-5,08-V

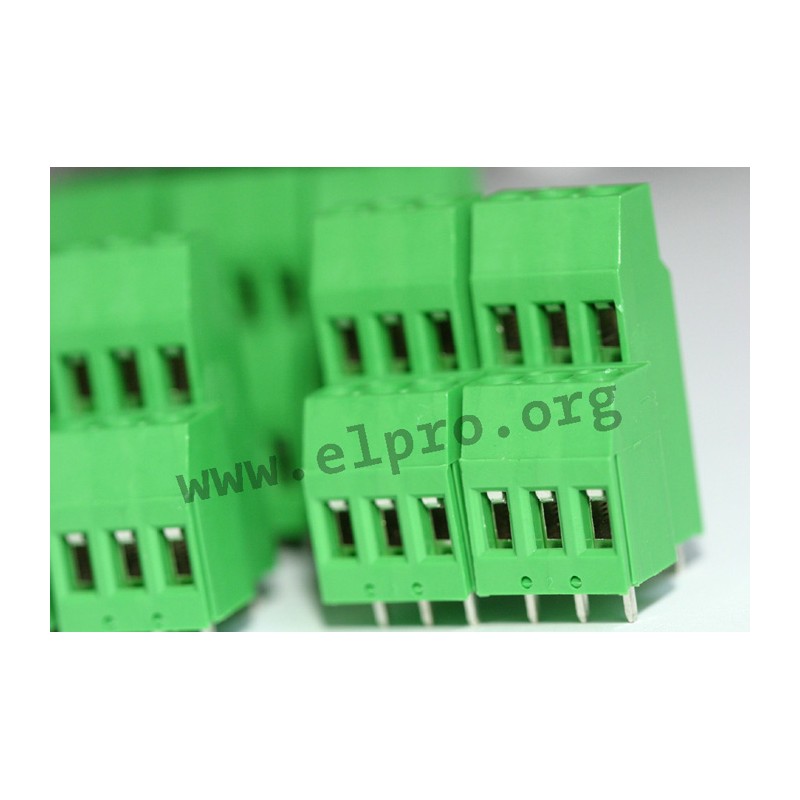

PTR double row terminal block series AKZ 750

  • 2- and 3-pole double row terminal blocks with a side wire entry
  • screw-cage clamp principle
  • insulator made of PA (UL94V-0)
  • in green
  • rated cross section single stranded wire: 4mm²
  • rated cross section fine stranded wire: 2,5mm²
  • rated voltage: 250V
  • rated current: 24A
  • pitch: 5,08mm

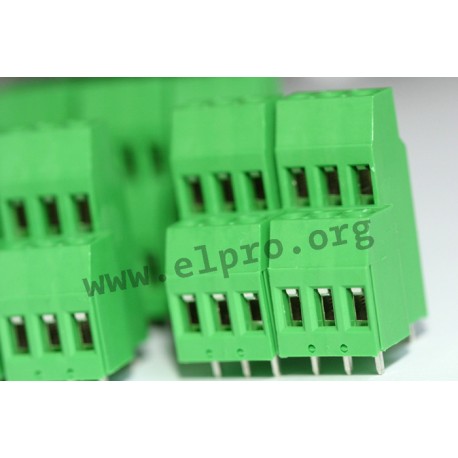

series AKZ 750 by PTR

AKZ 750/02-5,08-V

13831 AKZ 750/02-5,08-V AKZ750/3-5,08-V/GRÜN AKZ750/3-5,08-V/GRÜN PTR double row terminal block series AKZ 750 . 2- and 3-pole double row terminal blocks with a side wire entry screw-cage clamp principle insulator made of PA (UL94V-0) in green rated cross section single stranded wire: 4mm² rated cross section fine stranded wire: 2,5mm² rated voltage: 250V rated current: 24A pitch: 5,08mm

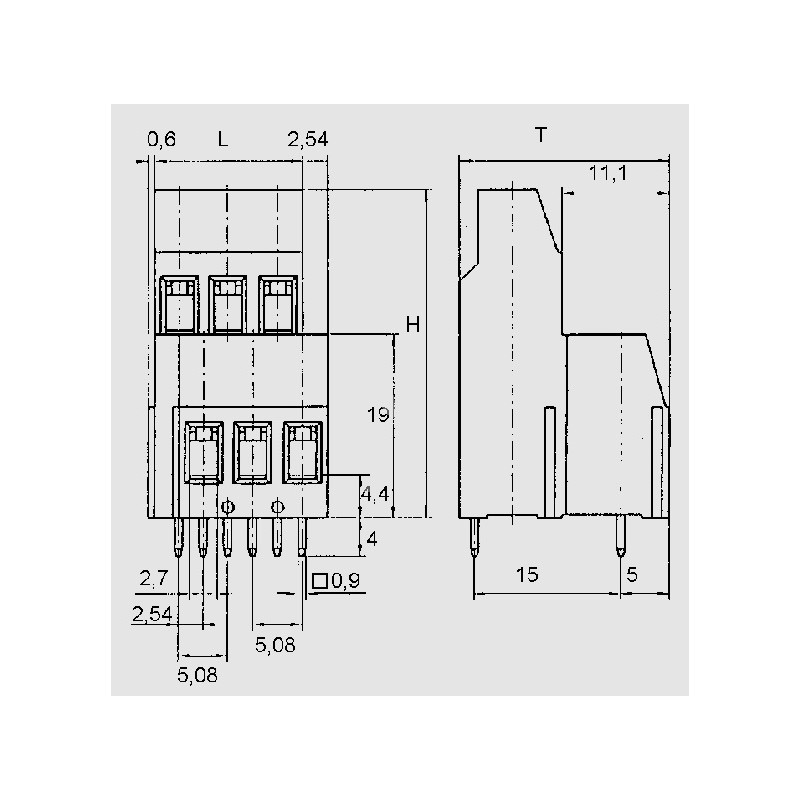

Specifications

manufacturer
Manufacturer's name AKZ750/3-5,0...
Design Doppelstock,...
Number of poles 2
Height [mm] 34
T [mm] 21,5
Length [mm] 10,16
Data Sheet

Unit price

0,745 €

Stock: 290
Further delivery:
CW 21/2025

Minimum order quantity 10 units or
multiples of 10.
