AK 950/05-5,0

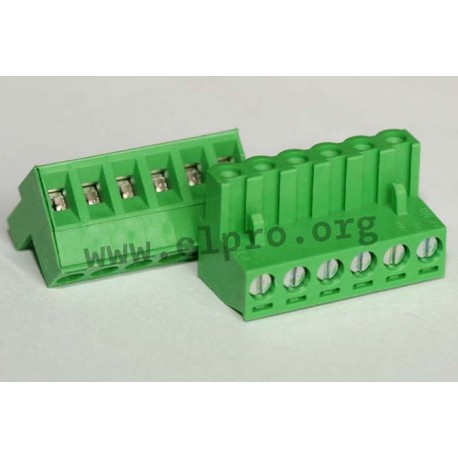

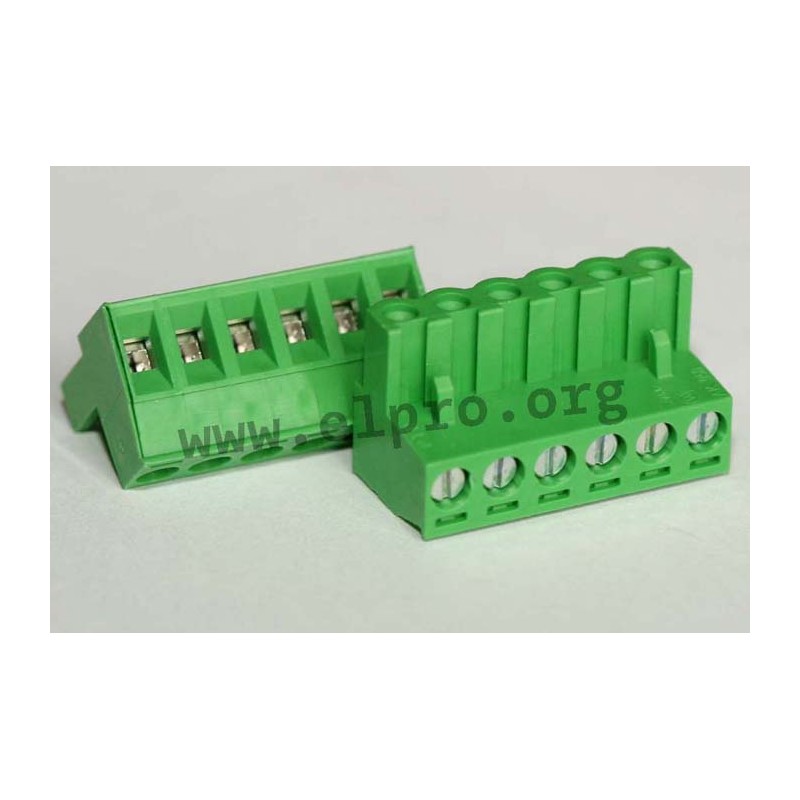

PTR terminal multiconnector series AK950

  • 2- to 6-pole multiconnectors in green
  • screw-cage clamp principle
  • suitable for a wire cross section of 2,5mm²
  • insulator made of PA (UL94V-0)
  • rated voltage: 250V
  • rated current: 12A
  • pitch: 5mm

Matching box headers straight

Matching box headers angled

AK 950/05-5,0

13818 AK 950/05-5,0 AK950/5-5,0/GRUEN AK950/5-5,0/GRUEN PTR terminal multiconnector series AK950. 2- to 6-pole multiconnectors in green screw-cage clamp principle suitable for a wire cross section of 2,5mm² insulator made of PA (UL94V-0) rated voltage: 250V rated current: 12A pitch: 5mm Matching box headers straight Matching box headers angled

Specifications

manufacturer
Manufacturer's name AK950/5-5,0/GRUEN
Design screw-cage...
Height [mm] 15
T [mm] 17,3
Length [mm] 25
Data Sheet

Unit price

1,33 €

Stock: 681
Further delivery:
CW 05/2025

Minimum order quantity 1 unit or multiples of 10 plus 0 to 1 .
