AK 700/03-5,0-V

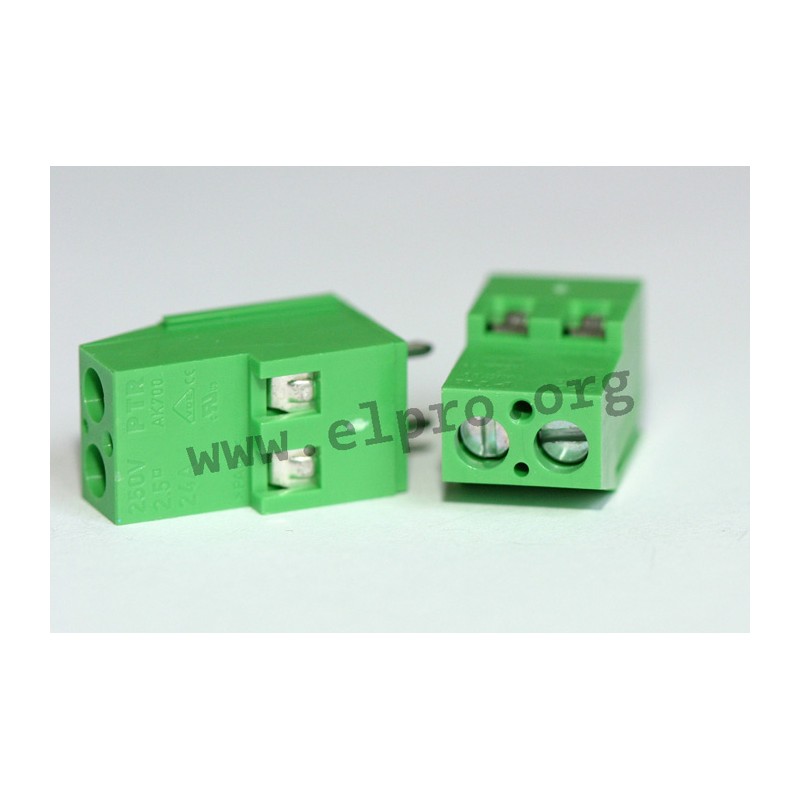

PTR terminal block series AK700

  • 2- to 6-pole terminal blocks in green with a side wire entry
  • screw-cage clamp principle
  • insulator is made of PA (UL94V-0)
  • rated cross section single-stranded wire: 4,0mm²
  • rated cross section fine-stranded wire: 2,5mm²
  • rated voltage: 250V
  • rated current: 24A
  • pitch: 5mm

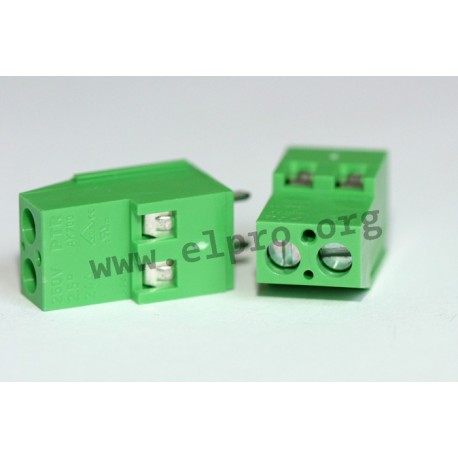

series AK 700 by PTR

AK 700/03-5,0-V

13814 AK 700/03-5,0-V AK700/3-5,0-V/GRUEN AK700/3-5,0-V/GRUEN PTR terminal block series AK700. 2- to 6-pole terminal blocks in green with a side wire entry screw-cage clamp principle insulator is made of PA (UL94V-0) rated cross section single-stranded wire: 4,0mm² rated cross section fine-stranded wire: 2,5mm² rated voltage: 250V rated current: 24A pitch: 5mm

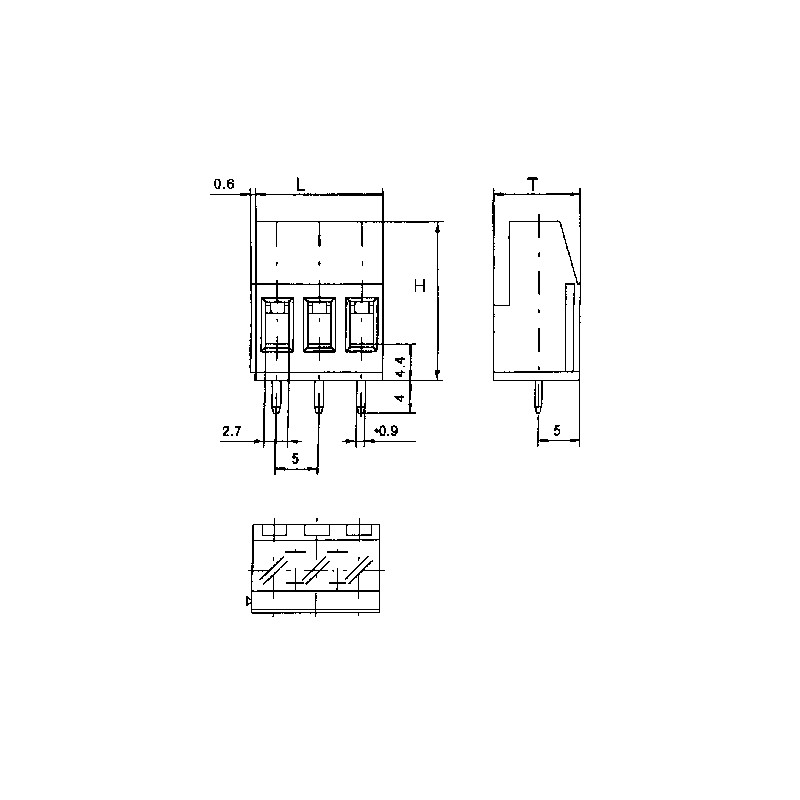

Specifications

manufacturer
Manufacturer's name AK700/3-5,0-...
Design screw-cage...
Number of poles 3
Height [mm] 19
Pitch [mm] 5
T [mm] 10,5
Length [mm] 15,6
Data Sheet

Unit price

0,475 €

Stock: 14725
Further delivery:
CW 01/2025

Minimum order quantity 1 to 5 units or multiples of 50 plus 0 to 5 .
