AK 700/04-5,0-V

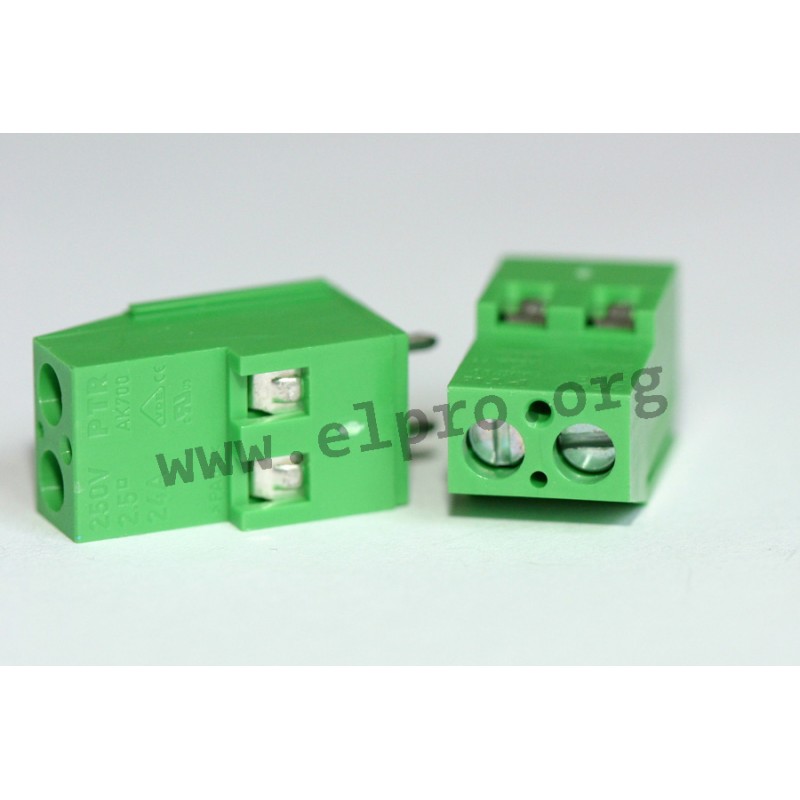

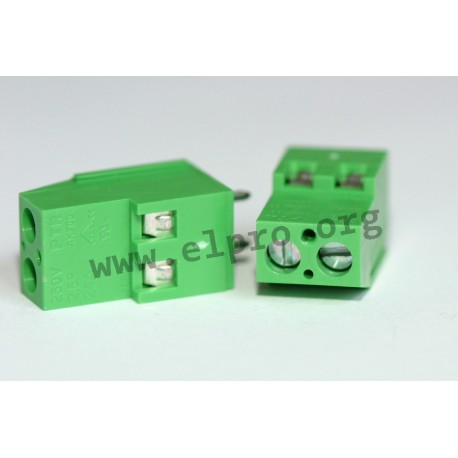

PTR terminal block series AK700

  • 2- to 6-pole terminal blocks in green with a side wire entry
  • screw-cage clamp principle
  • insulator is made of PA (UL94V-0)
  • rated cross section single-stranded wire: 4,0mm²
  • rated cross section fine-stranded wire: 2,5mm²
  • rated voltage: 250V
  • rated current: 24A
  • pitch: 5mm
PTR terminal blocks

AK 700/04-5,0-V

112431 AK 700/04-5,0-V AK700/4-5.0-V-GRÜN AK700/4-5.0-V-GRÜN PTR terminal block series AK700. 2- to 6-pole terminal blocks in green with a side wire entry screw-cage clamp principle insulator is made of PA (UL94V-0) rated cross section single-stranded wire: 4,0mm² rated cross section fine-stranded wire: 2,5mm² rated voltage: 250V rated current: 24A pitch: 5mm

Specifications

manufacturer
Manufacturer's name AK700/4-5.0-V-GRÜN
Design screw-cage...
Number of poles 4
Height [mm] 19
Pitch [mm] 5
T [mm] 10,5
Length [mm] 20,6
Data Sheet

Unit price

0,633 €

Stock: 300
Further delivery:
CW 50/2024

Minimum order quantity 50 units or
multiples of 50.
