AK 550/04 DS-3.5-H

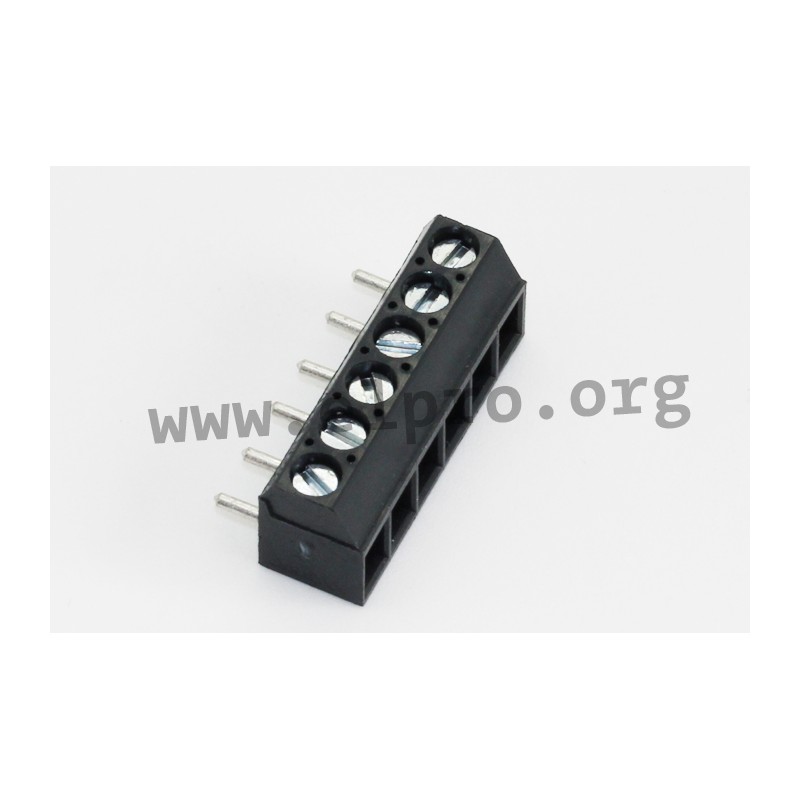

PTR terminal block series AK550

  • 2- to 6-pole terminal blocks with a top wire entry (90°)
  • screw principle with wire guard
  • insulator is made of PA (UL94V-0)
  • suitable for a cross section single stranded wire of 1,5mm² and a fine stranded wire of 1,0mm²
  • rated voltage: 130V AC
  • rated current: 13,5A
  • pitch: 3,5mm

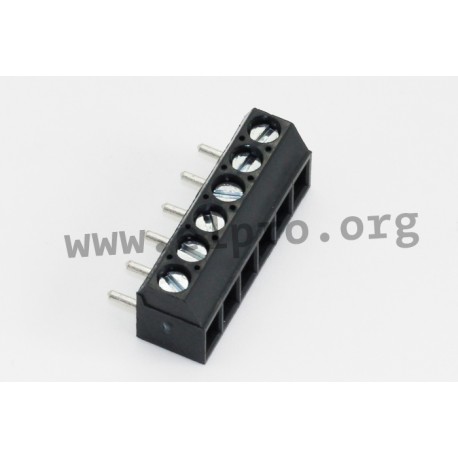

AK550/4DS-3.5-H-GRAU, RM3,5, 13,5 A, horizontal or vertical

AK 550/04 DS-3.5-H

112463 AK 550/04 DS-3.5-H AK550/4DS-3.5-H-GRAU AK550/4DS-3.5-H-GRAU PTR terminal block series AK550. 2- to 6-pole terminal blocks with a top wire entry (90°) screw principle with wire guard insulator is made of PA (UL94V-0) suitable for a cross section single stranded wire of 1,5mm² and a fine stranded wire of 1,0mm² rated voltage: 130V AC rated current: 13,5A pitch: 3,5mm

Specifications

manufacturer
Manufacturer's name AK550/4DS-3....
Number of poles 4
Depth [mm] 6,5
Height [mm] 6,5
Length [mm] 14
Data Sheet

Unit price

0,409 €

Stock: 250
Further delivery:
CW 01/2025

Minimum order quantity 10 units or
multiples of 10.
