AK 500/05-5.0-H

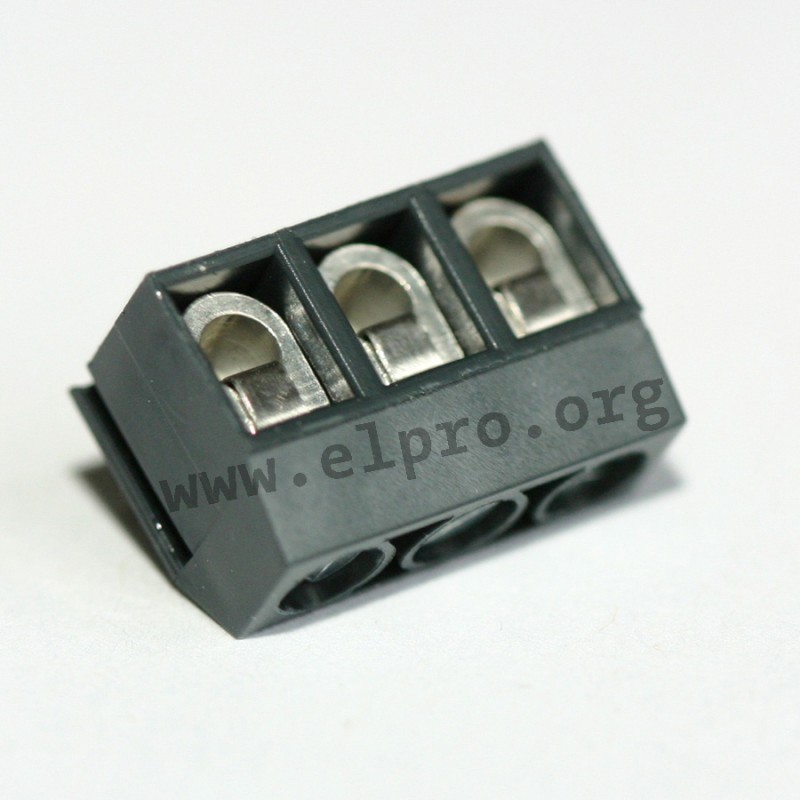

PTR terminal block series AK500

  • 2- to 6-pole terminal blocks in dark grey
  • top wire entry
  • screw principle with wire guard
  • suitable for a wire cross section of 1,5mm²
  • insulator is made of PA (UL94V-0)
  • rated voltage: 250V
  • rated current: 17,5A
  • pitch: 5mm
PTR terminal block

AK 500/05-5.0-H

112454 AK 500/05-5.0-H AK500/5DS-5.0-H-GRAU AK500/5DS-5.0-H-GRAU PTR terminal block series AK500. 2- to 6-pole terminal blocks in dark grey top wire entry screw principle with wire guard suitable for a wire cross section of 1,5mm² insulator is made of PA (UL94V-0) rated voltage: 250V rated current: 17,5A pitch: 5mm

Specifications

manufacturer
Manufacturer's name AK500/5DS-5....
Design screw principle
Number of poles 5
Height [mm] 10
Pitch [mm] 5
T [mm] 7,5
Length [mm] 25,6
Data Sheet

Unit price

0,545 €

Stock: 180
Further delivery:
CW 01/2025

Minimum order quantity 10 units or
multiples of 10.
