AK 500/05 DS-5.0-V

PTR terminal block series AK500

  • 2- to 6-pole terminal blocks with a side wire entry
  • screw principle with wire guard
  • insulator is made of PA (UL94V-0)
  • suitable for a conductor cross section of 1,5mm²
  • rated voltage: 250V
  • rated current: 17,5A
  • pitch: 5mm

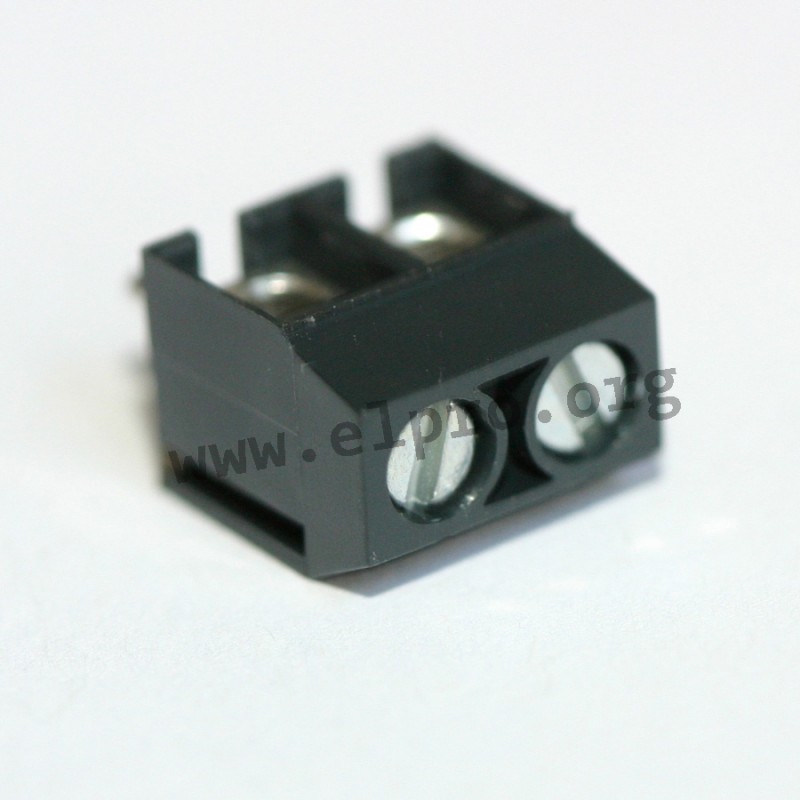

PTR terminal block

AK 500/05 DS-5.0-V

112451 AK 500/05 DS-5.0-V AK500/5DS-5.0-V-GRAU AK500/5DS-5.0-V-GRAU PTR terminal block series AK500. 2- to 6-pole terminal blocks with a side wire entry screw principle with wire guard insulator is made of PA (UL94V-0) suitable for a conductor cross section of 1,5mm² rated voltage: 250V rated current: 17,5A pitch: 5mm

Specifications

manufacturer
Manufacturer's name AK500/5DS-5....
Design screw principle
Number of poles 5
Height [mm] 10
Pitch [mm] 5
T [mm] 7,5
Length [mm] 25,6
Data Sheet

Unit price

0,411 €

Stock: 500
Further delivery:
CW 01/2025

Minimum order quantity 50 units or
multiples of 50.
