AK 4551/4KD-3.5-grün

PTR terminal multiconnector series AK4551

  • multiconnectors with a push-in principle
  • 2-, 3-, 4-, 5-, 6-, 8- or 10-poles
  • insulator made of PA6.6 (UL94V-0)
  • in green
  • rated cross section, single wire: 0,14 to 2,5mm²
  • rated cross section, fine stranded wire: 0,14 to 1,5mm²
  • rated voltage: 160V
  • rated current: 10A
  • pitch: 3,5mm

Matching box headers

Matching box headers 90°

series AK 4551 by PTR

AK 4551/4KD-3.5-grün

39381 AK 4551/4KD-3.5-grün AK4551/10KD-3.5-GRÜN AK4551/10KD-3.5-GRÜN PTR terminal multiconnector series AK4551 . multiconnectors with a push-in principle 2-, 3-, 4-, 5-, 6-, 8- or 10-poles insulator made of PA6.6 (UL94V-0) in green rated cross section, single wire: 0,14 to 2,5mm² rated cross section, fine stranded wire: 0,14 to 1,5mm² rated voltage: 160V rated current: 10A pitch: 3,5mm Matching box headers Matching box headers 90°

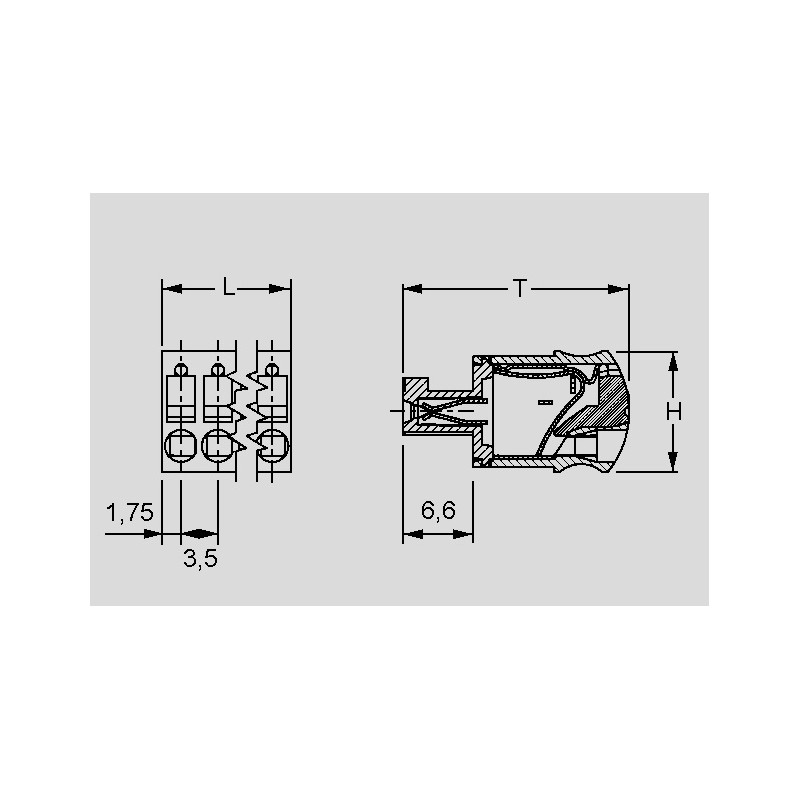

Specifications

manufacturer
Manufacturer's name AK4551/10KD-...
Number of poles 4
Height [mm] 11,3
T [mm] 21,1
Length [mm] 14
Data Sheet

Unit price

1,08 €

Stock: 5
Next incoming goods:
CW 51/2024
600 units

Further delivery:
CW 07/2025

Minimum order quantity 1 to 5 units or multiples of 10 plus 0 to 5 .
