AK 4291/03 KDVP-3.5

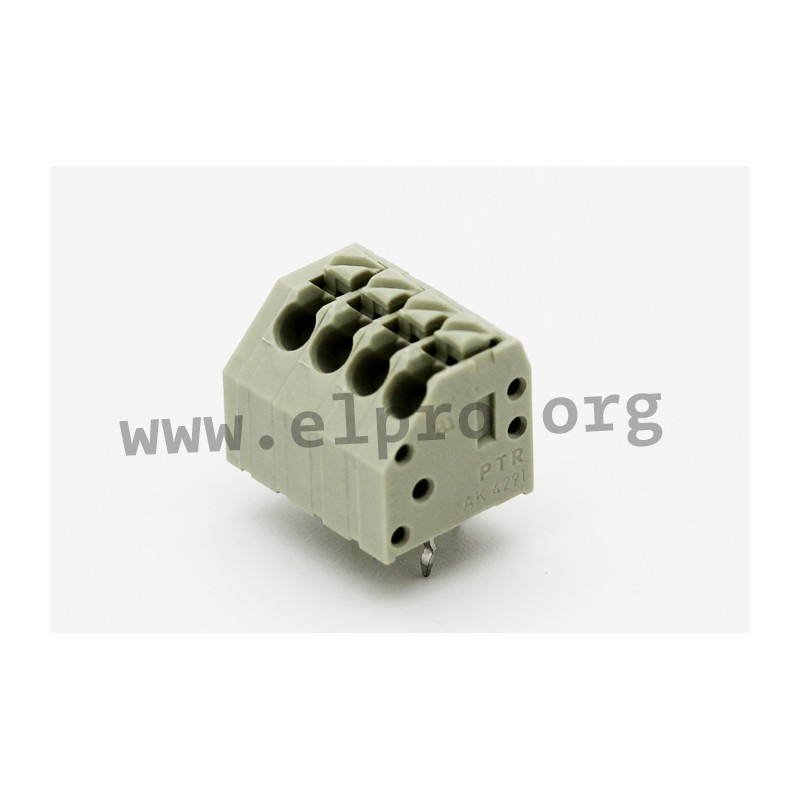

PTR spring terminal block series AK4291

  • 2- to 6-pole spring terminal blocks in grey
  • with a wire entry angle of 45° and a lever
  • insulator made of PA (UL94V-0)
  • rated cross section single stranded wire: 1,5mm²
  • rated cross section fine stranded wire: 1,0mm²
  • rated voltage: 250V AC
  • rated current: 3A
  • pitch: 3,5mm

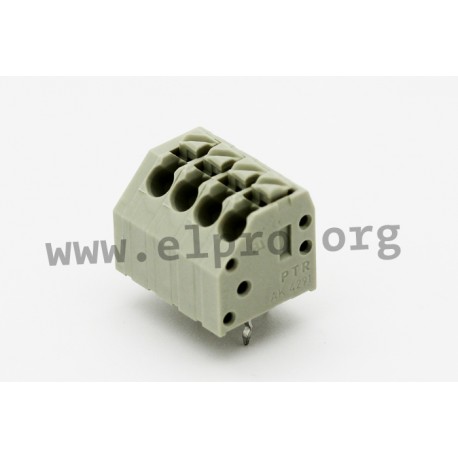

PTR AK4291 series

AK 4291/03 KDVP-3.5

112378 AK 4291/03 KDVP-3.5 AK4291/3KDVP-3.5-KIESELGRAU AK4291/3KDVP-3.5-KIESELGRAU PTR spring terminal block series AK4291. 2- to 6-pole spring terminal blocks in grey with a wire entry angle of 45° and a lever insulator made of PA (UL94V-0) rated cross section single stranded wire: 1,5mm² rated cross section fine stranded wire: 1,0mm² rated voltage: 250V AC rated current: 3A pitch: 3,5mm

Specifications

manufacturer
Manufacturer's name AK4291/3KDVP...
Design with lever
Depth [mm] 12
Number of poles 3
Height [mm] 13
Pitch [mm] 3,5
Length [mm] 12
Data Sheet

Unit price

0,305 €

Stock: 250
Further delivery:
CW 06/2025

Minimum order quantity 10 units or
multiples of 10.
