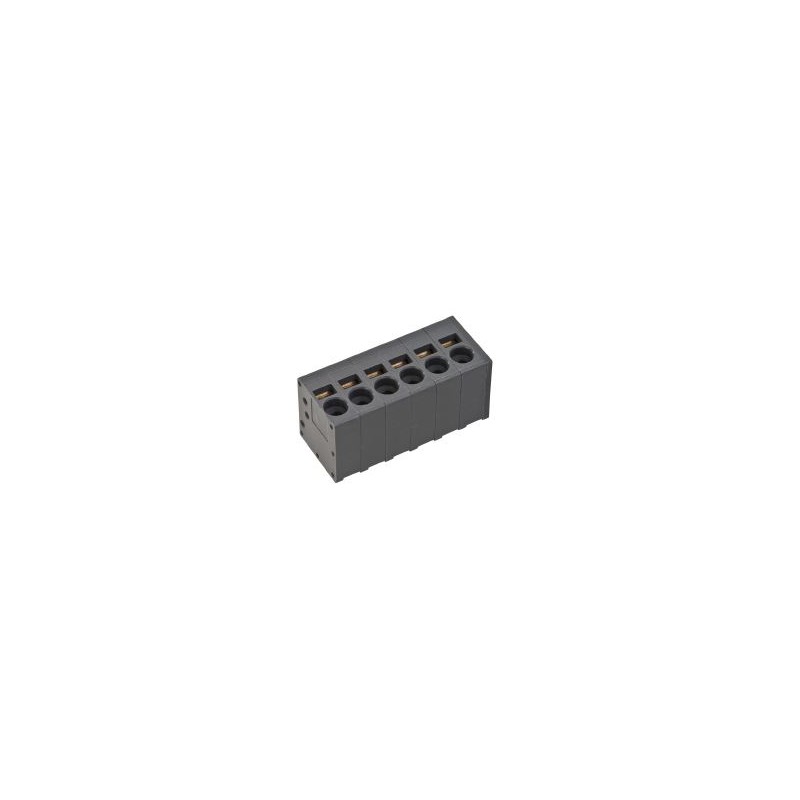

AK 4200/06-5.0-V-baGY

PTR spring terminal block series AK4200

  • 2- to 6-pole spring terminal blocks in grey
  • 90° wire entry angle
  • suitable for a wire cross section of 4mm2 (solid-core wire) resp. 2,5mm2 (fine-stranded wire)
  • without lever
  • insulator made of PA (UL94V-0)
  • rated voltage: 250V AC
  • rated current: 24A
  • pitch: 5mm

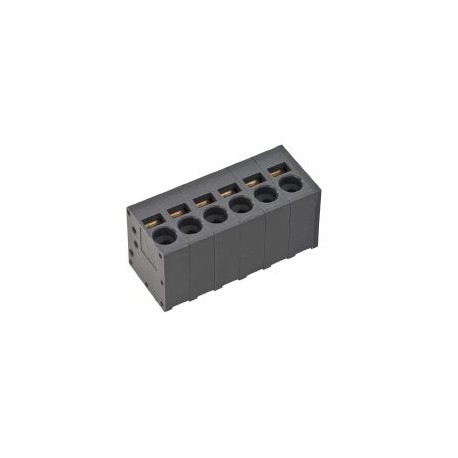

PTR AK4200 series

AK 4200/06-5.0-V-baGY

112361 AK 4200/06-5.0-V-baGY AK4200/6-5.0-V-BAGY AK4200/6-5.0-V-BAGY PTR spring terminal block series AK4200. 2- to 6-pole spring terminal blocks in grey 90° wire entry angle suitable for a wire cross section of 4mm2 (solid-core wire) resp. 2,5mm2 (fine-stranded wire) without lever insulator made of PA (UL94V-0) rated voltage: 250V AC rated current: 24A pitch: 5mm

Specifications

manufacturer
Manufacturer's name AK4200/6-5.0...
Depth [mm] 13,5
Number of poles 6
Height [mm] 14,4
Length [mm] 31,4
Data Sheet

Unit price

1,35 €

Stock: 5772
Further delivery:
CW 51/2024

Minimum order quantity 1 to 2 units or multiples of 10 plus 0 to 2 .
