AK 4200/06-5.0-H-baGY

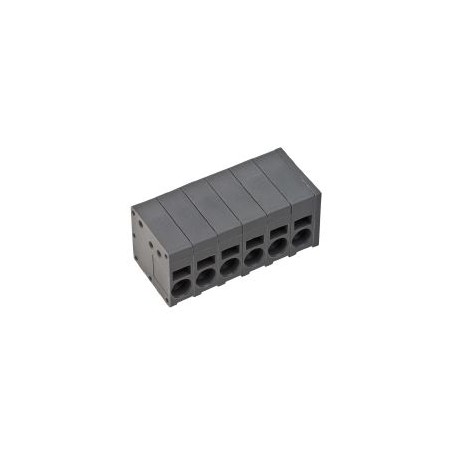

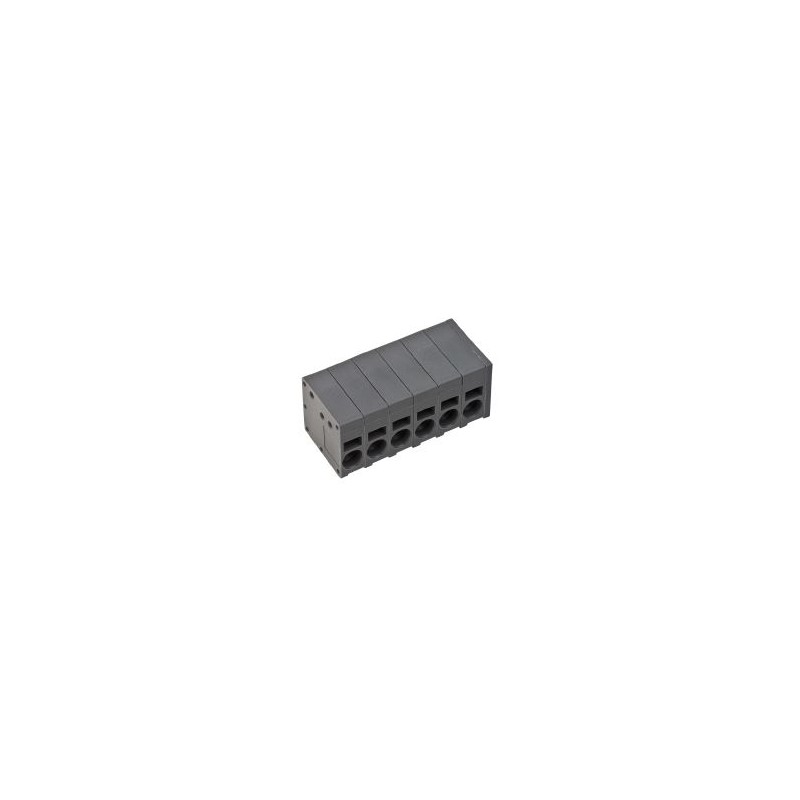

PTR spring terminal block series AK4200

  • 2- to 6-pole spring terminal blocks in grey
  • side wire entry
  • suitable for a wire cross section of 4mm2 (solid-core) resp. 2,5mm2 (fine-strand)
  • without lever
  • insulator is made of PA (UL94V-0)
  • rated voltage: 250V AC
  • rated current: 24A
  • pitch: 5mm
PTR AK4200 series

AK 4200/06-5.0-H-baGY

112360 AK 4200/06-5.0-H-baGY AK4200/6-5.0-H-BAGY AK4200/6-5.0-H-BAGY PTR spring terminal block series AK4200. 2- to 6-pole spring terminal blocks in grey side wire entry suitable for a wire cross section of 4mm2 (solid-core) resp. 2,5mm2 (fine-strand) without lever insulator is made of PA (UL94V-0) rated voltage: 250V AC rated current: 24A pitch: 5mm

Specifications

manufacturer
Manufacturer's name AK4200/6-5.0...
Number of poles 6
Depth [mm] 14,4
Height [mm] 13,5
Length [mm] 31,4
Data Sheet

Unit price

1,35 €

Stock: 0
Next incoming goods:
CW 51/2024
50 units

Further delivery:
CW 01/2025

Minimum order quantity 10 units or
multiples of 10.
