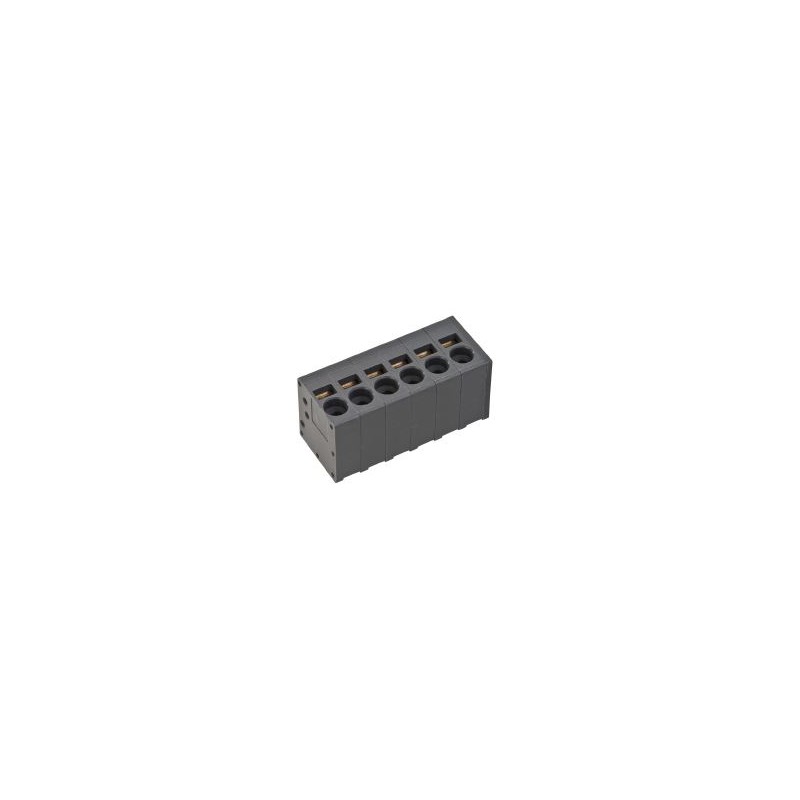

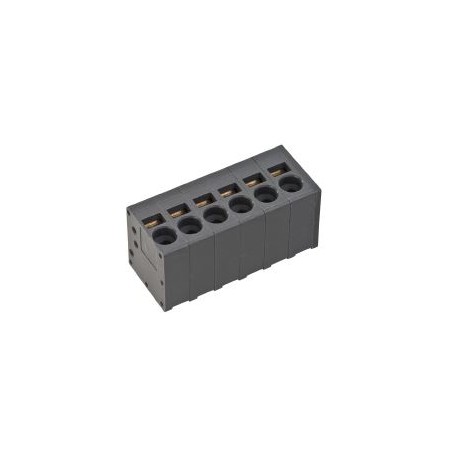

AK 4200/05-5.0-V-baGY

PTR spring terminal block series AK4200

  • 2- to 6-pole spring terminal blocks in grey
  • 90° wire entry angle
  • suitable for a wire cross section of 4mm2 (solid-core wire) resp. 2,5mm2 (fine-stranded wire)
  • without lever
  • insulator made of PA (UL94V-0)
  • rated voltage: 250V AC
  • rated current: 24A
  • pitch: 5mm
PTR AK4200 series

AK 4200/05-5.0-V-baGY

112359 AK 4200/05-5.0-V-baGY AK4200/5-5.0-V-BAGY AK4200/5-5.0-V-BAGY PTR spring terminal block series AK4200. 2- to 6-pole spring terminal blocks in grey 90° wire entry angle suitable for a wire cross section of 4mm2 (solid-core wire) resp. 2,5mm2 (fine-stranded wire) without lever insulator made of PA (UL94V-0) rated voltage: 250V AC rated current: 24A pitch: 5mm

Specifications

manufacturer
Manufacturer's name AK4200/5-5.0...
Depth [mm] 13,5
Number of poles 5
Height [mm] 14,4
Length [mm] 26,4
Data Sheet

Unit price

1,13 €

Stock: 150
Further delivery:
CW 03/2025

Minimum order quantity 10 units or
multiples of 10.
